TELEDYNE API T300M - Pneumatic Flow: Second Sensor Options; Figure 2-26. T300;T300 M Internal Pneumatics with O; Figure 2-27. T300;T300 M Internal Pneumatics with CO

083730300A DCN8101 Getting Started 53
2.3.3.6 PNEUMATIC FLOW: SECOND SENSOR OPTIONS
Flow
/ Pressure
Sensor PCA
SAMPLE
PRESSURE
SENSOR
FLOW
SENSOR
Sample Gas
Flow Control
O
2
Sensor
INSTRUMENT CHASSIS
SAMPLE GAS
INLET
EXHAUST
GAS OUTLET
Particulate Filter
PUMP
O
2
Sensor
Flow Control
GFC Wheel
Housing
GFC Motor Heat Sync
SAMPLE CHAMBER

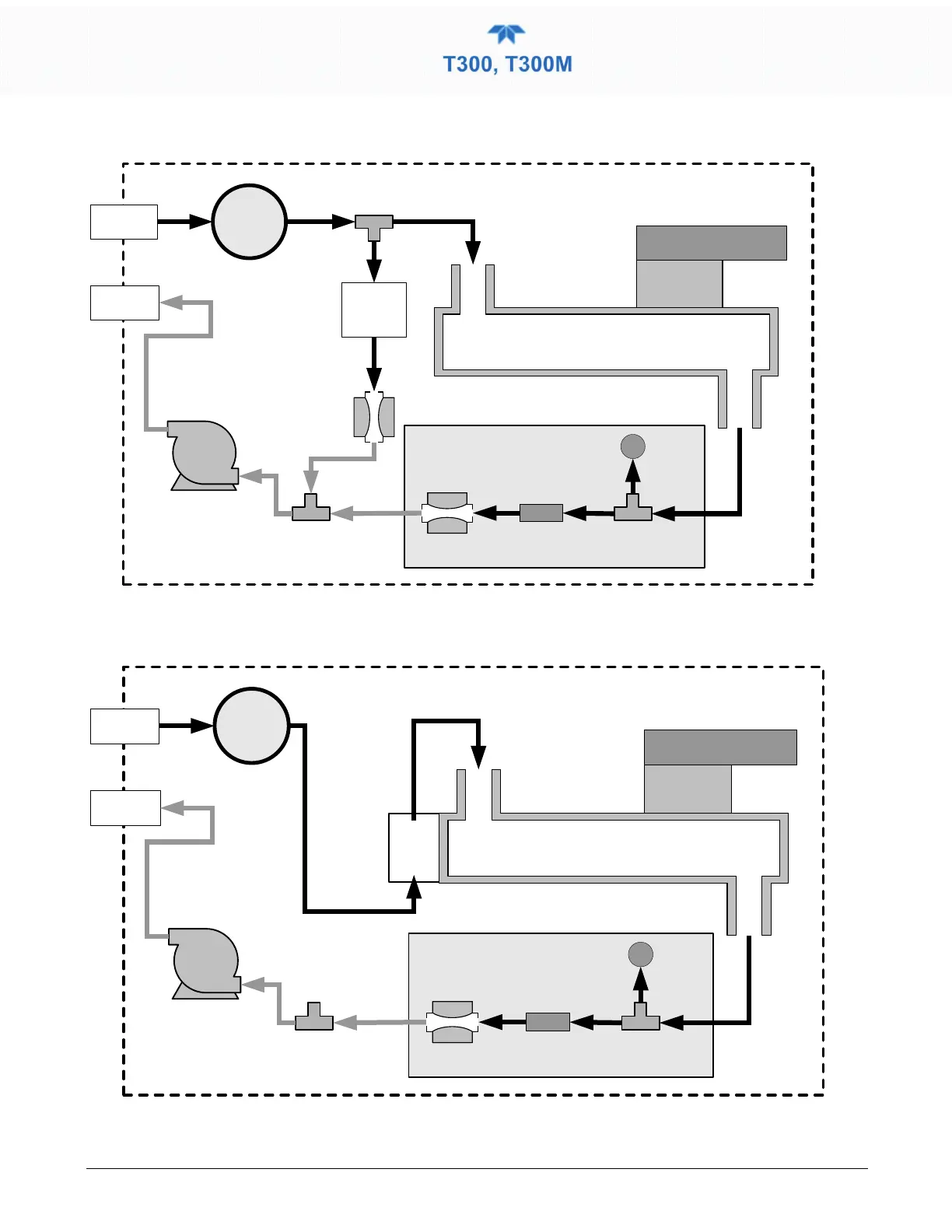

Figure 2-26. T300/T300M Internal Pneumatics with O
2
Sensor Option
CO
2
Probe
Flow / Pressure
Sensor PCA
SAMPLE
PRESSURE
SENSOR
FLOW
SENSOR
Sample Gas
Flow Control
INSTRUMENT CHASSIS
SAMPLE GAS
INLET
EXHAUST
GAS OUTLET
Particulate Filter
PUMP
GFC Wheel
Housing
GFC Motor Heat Sync
SAMPLE CHAMBER
Figure 2-27. T300/T300M Internal Pneumatics with CO
2
Sensor Option
