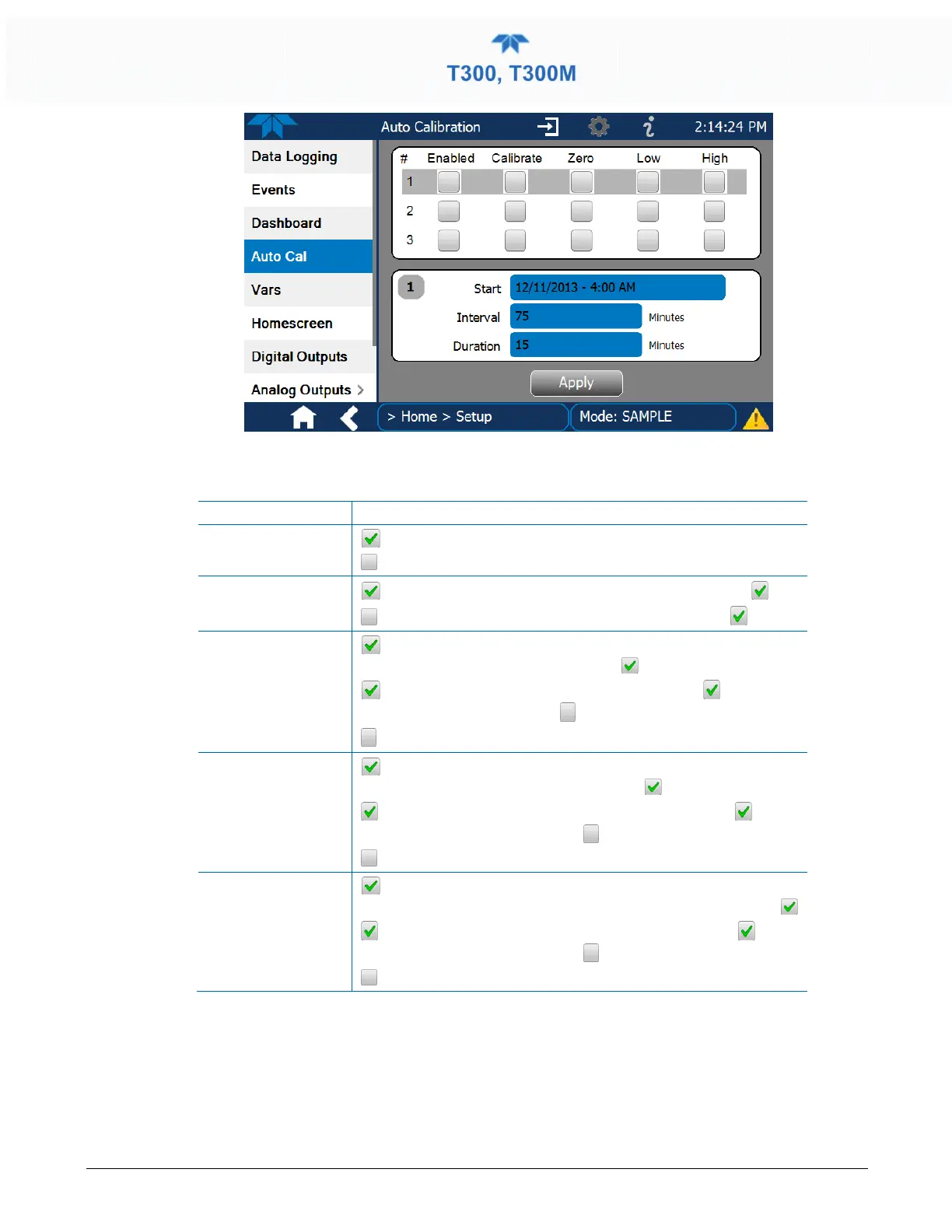

Figure 4-3. Auto Cal Page
Table 4-1. AUTO CAL States
MODE NAME
ACTION
Enabled
enables the sequence;
disables the sequence.
Calibrate
enables an actual calibration when the Enabled box is also .
allows a calibration check when the Enabled box is also .
Zero
causes the sequence to perform a Zero calibration when both the
Calibrate and Enabled boxes are also
.
causes a Zero check when the Enabled box is also and the
Calibrate box is unchecked ( ).
disables Zero calibration and check
Low
causes the sequence to perform a Low Span calibration when both
the Calibrate and Enabled boxes are also
.
causes a Low Span check when the Enabled box is also and
the Calibrate box is unchecked (
).
disables Low Span calibration and check
High
causes the sequence to perform a High Span concentration
calibration when both the Calibrate and Enabled boxes are also
.
causes a High Span check when the Enabled box is also and
the Calibrate box is unchecked (
).
disables the High Span calibration and check.
Table 4-2 shows how the selection boxes would be enabled/disabled for calibration
checks and calibrations.
