76 Getting Started 083730300A DCN8101

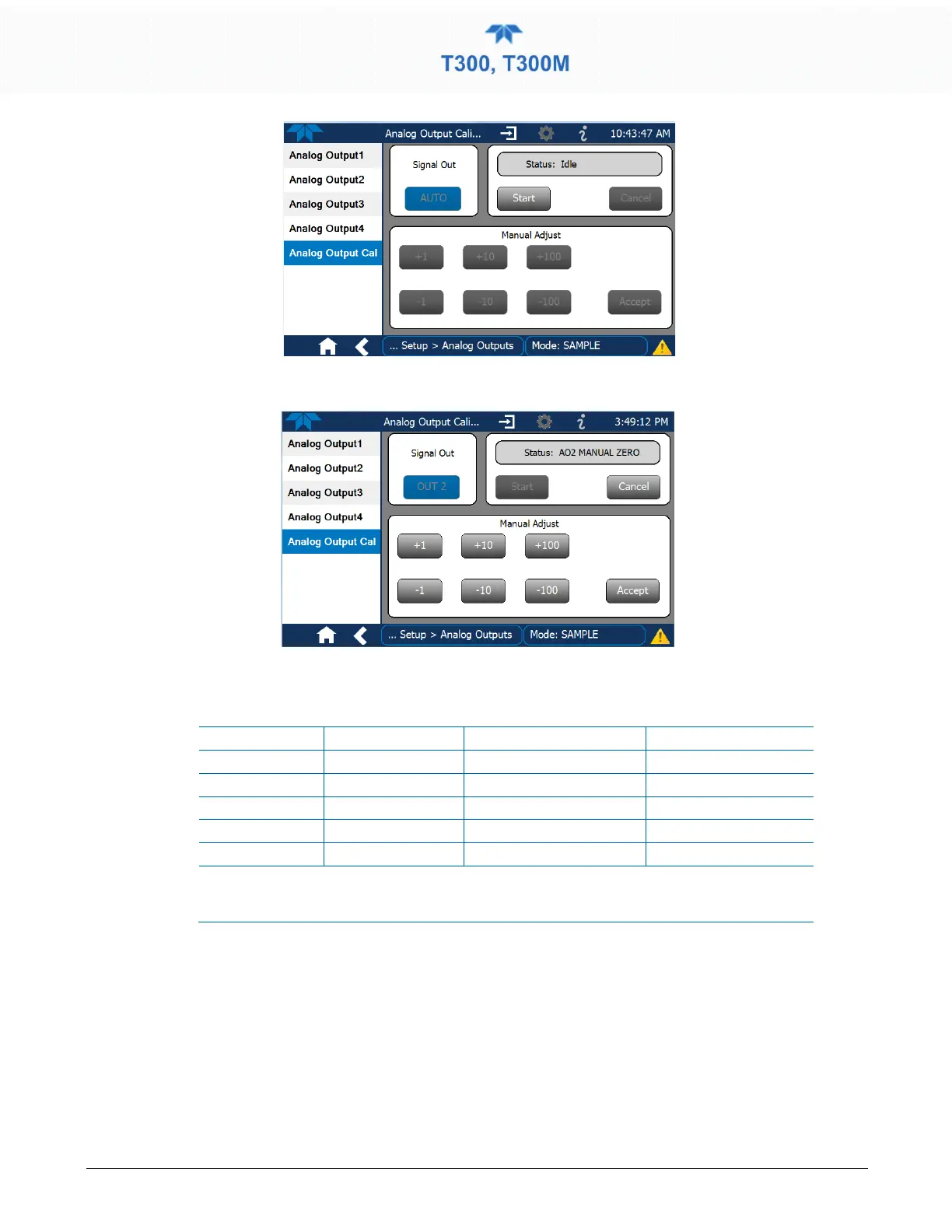

Figure 2-52. Analog Outputs Group Calibration Screen
Figure 2-53. Analog Outputs Manual Calibration Screen (AOUT2 Example)
Table 2-14. Analog Output Voltage/Current Range
For manual calibration adjustments, see Section 2.5.8.1 for voltage and Section 2.5.8.2
for current.
RANGE
1
RANGE SPAN
MINIMUM OUTPUT
MAXIMUM OUTPUT
100mV
0-100 mVDC -5 mVDC 105 mVDC
1V
0-1 VDC -0.05 VDC 1.05 VDC
5V
0-5 VDC -0.25 VDC 5.25 VDC
10V
0-10 VDC -0.5 VDC 10.5 VDC
Current
2
0-20 mA 0 mA 20 mA
1
Each range is usable from -5% to +5% of the rated span.
2
While these are the physical limits of the current loop modules, typical applications use 2-20 mA or 4-20
mA for the lower and upper limits.
