User Manual for Oscar GNSS Receiver v2.4

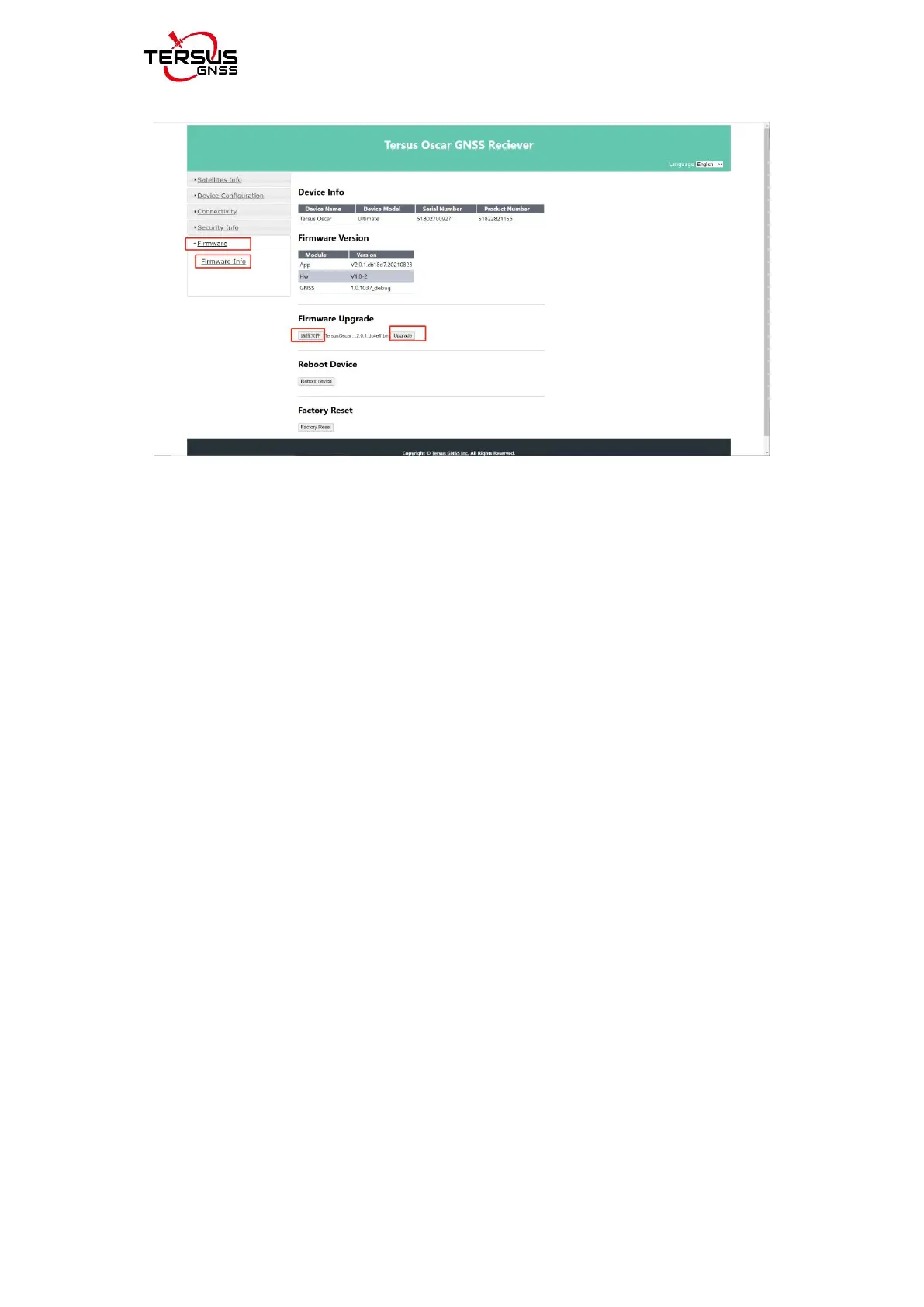

Figure 2.42. Upgrade via the Oscar WIFI page

5)After the LED panel displays the operation interface, you can check whether

the Oscar firmware upgrade is successful. Refer to step 1 to check the Oscar

firmware version. If it is consistent with the latest firmware version in the

removable disk, it means the firmware upgrade is successful.
