User Manual for Oscar GNSS Receiver v2.4

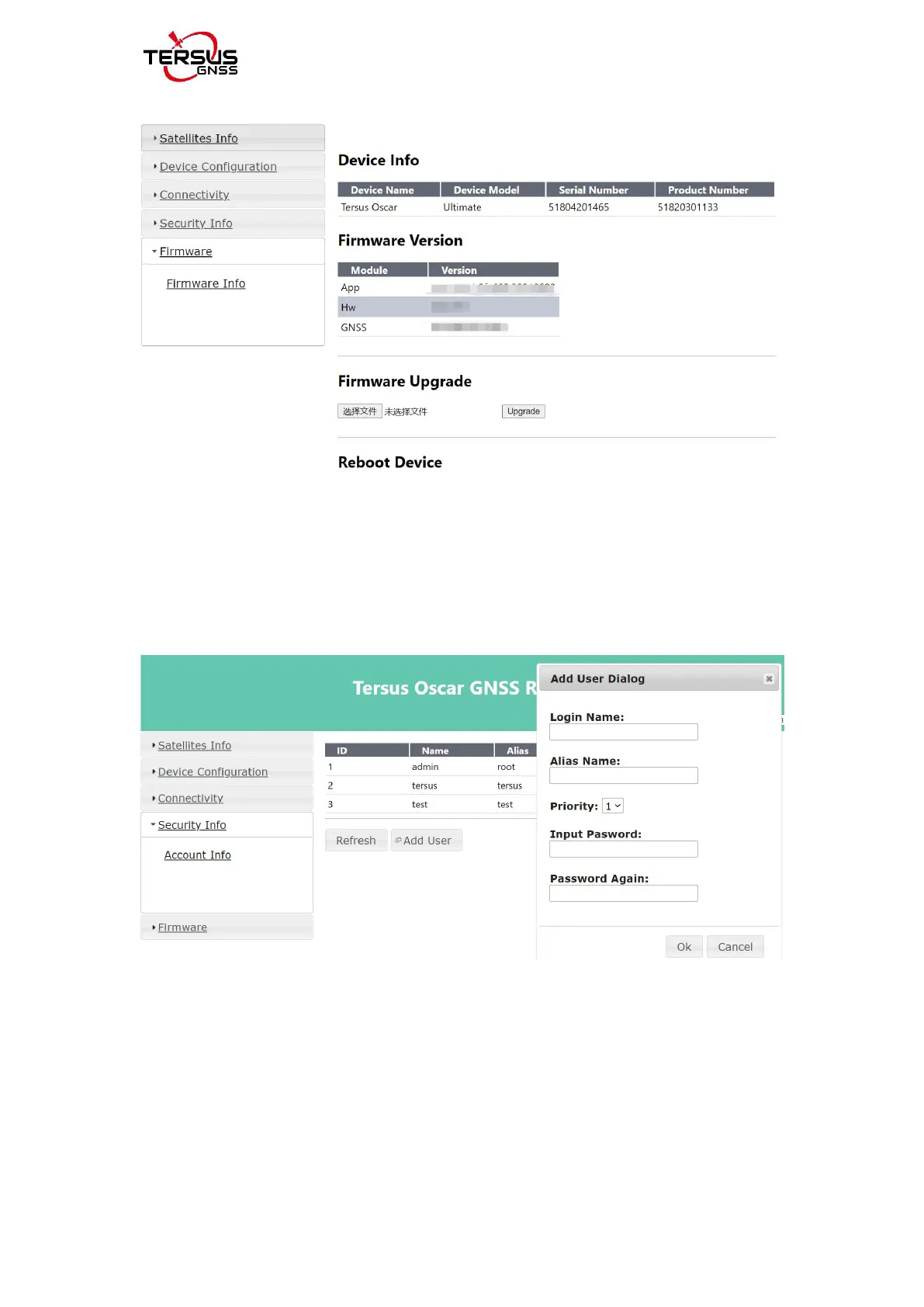

figure 2.49 upgrade the firmware

g. manage user logins through web pages.

[Security Info] - [Account Info] - [Add User] - [Add User Dialog] - input Login

Name&Alias Name&Password.

figure 2.50 add user login
