Redstone™ Optical Spectrum Analyzer Chapter 8: Operation
Rev C, January 21, 2022 Page 54

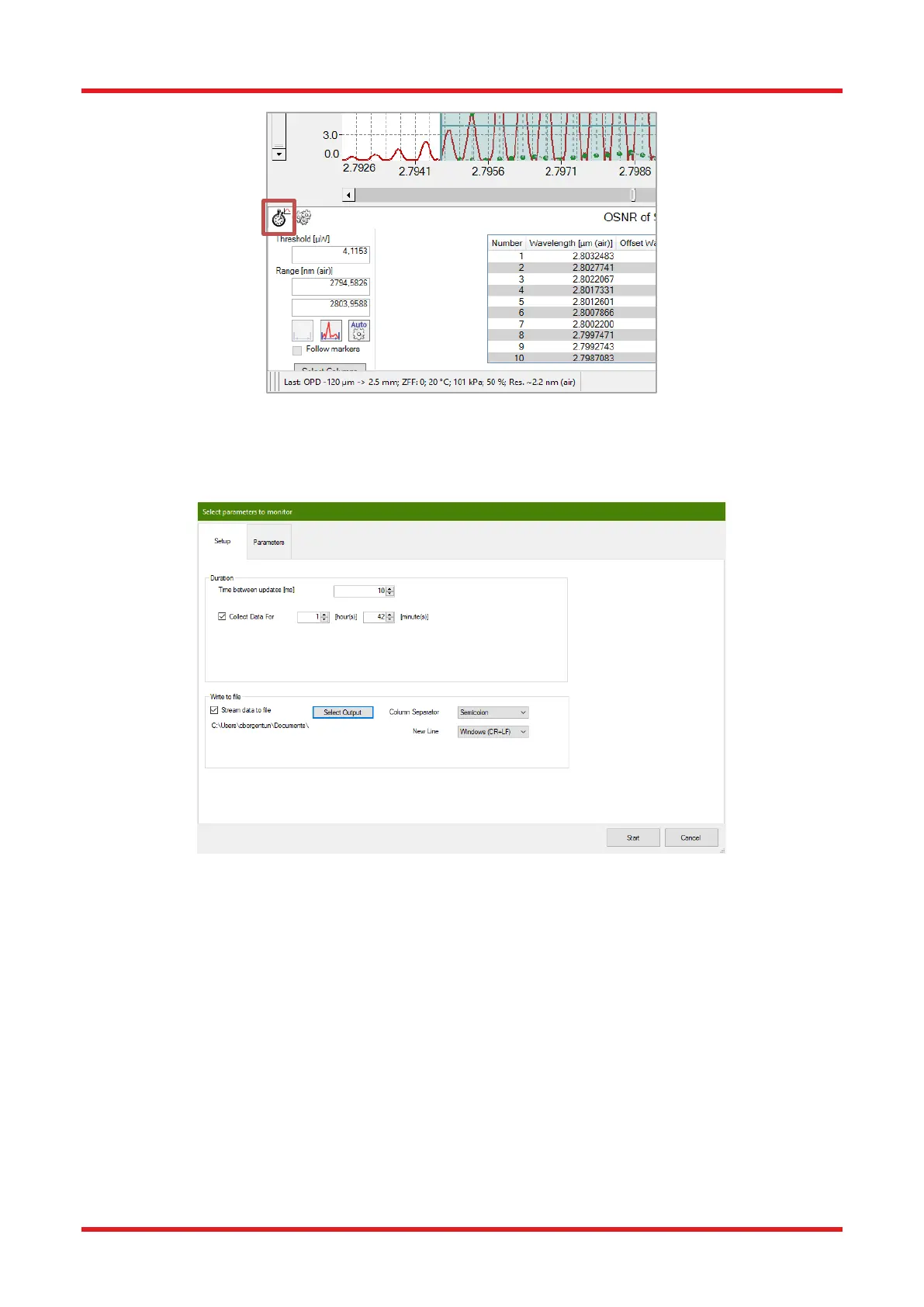

Figure 55. Location of the Long-Term Analysis Button in an Analysis Tool Window
Clicking on Analysis and “Long-Term” will open a dialog box where the parameters to be monitored can be
selected, as well as the desired duration of the test.
Figure 56. Setting Up the Long-Term Analysis – General Setup
The general options can be selected from the the “Setup” tab in this dialog box, see Figure 5655. The duration
of the test can be specified in hours and minutes. If the duration is set to zero, the measurement will run until
the “Stop” button is pressed. The time interval between each two updates can be set by selecting/writing a value
in the box “Time between updates.” Note that this only defines the minimum time between the updates of the
measurement; the actual rate will be determined by the update rate of the instrument.
