Powering the Receiver
P/N 7010-0557 www.topconpositioning.com
2-7

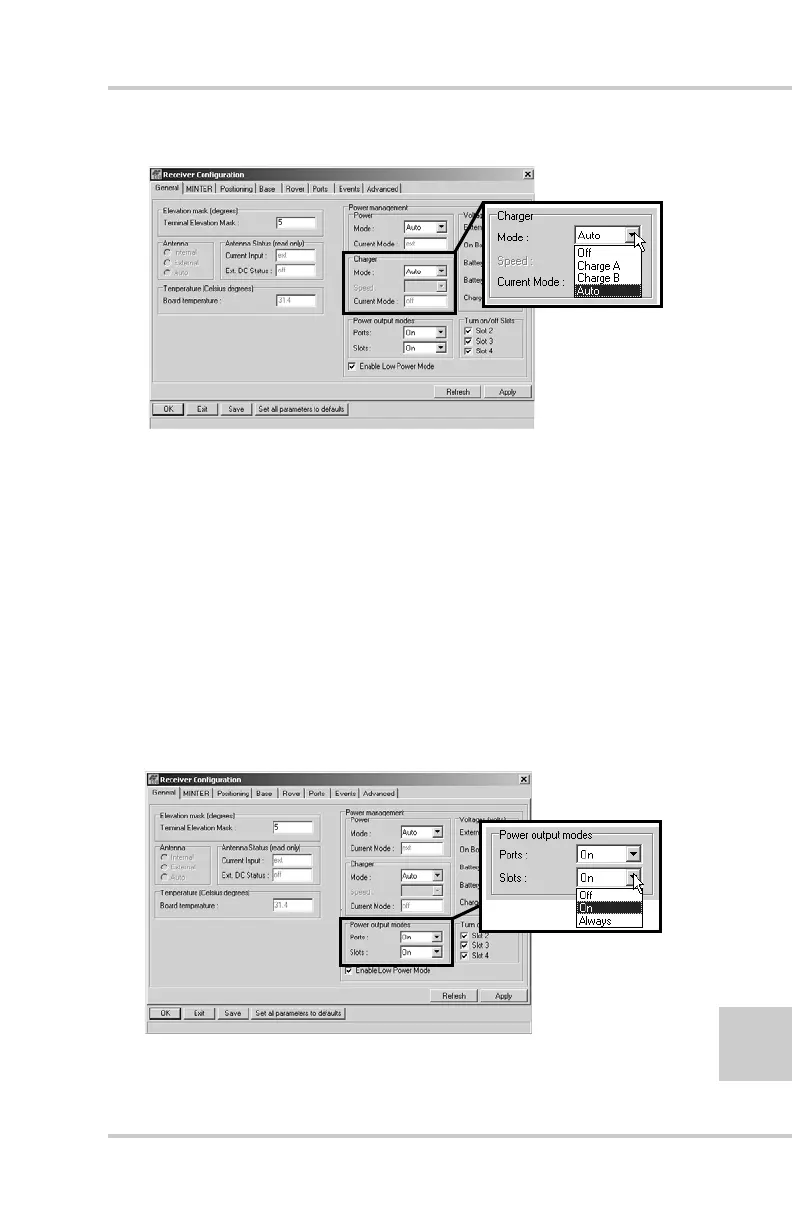

Figure 2-4. Select Charger Mode
5. Select the Power output modes Ports drop-down list to set
power output on the serial ports (Figure 2-5).
• On – the power board will deliver voltage on pin one of
all serial port connectors when the receiver is turned
on. If the receiver is turned off, there will be no power
on any ports.
• Off – power will be absent even if the receiver is on
• Always – the power board will deliver voltage on pin
one of all serial port connectors even if the receiver is
turned off
Figure 2-5. Select Power Output Modes – Ports
