Surveying with the Receiver
P/N 7010-0557 www.topconpositioning.com
3-15

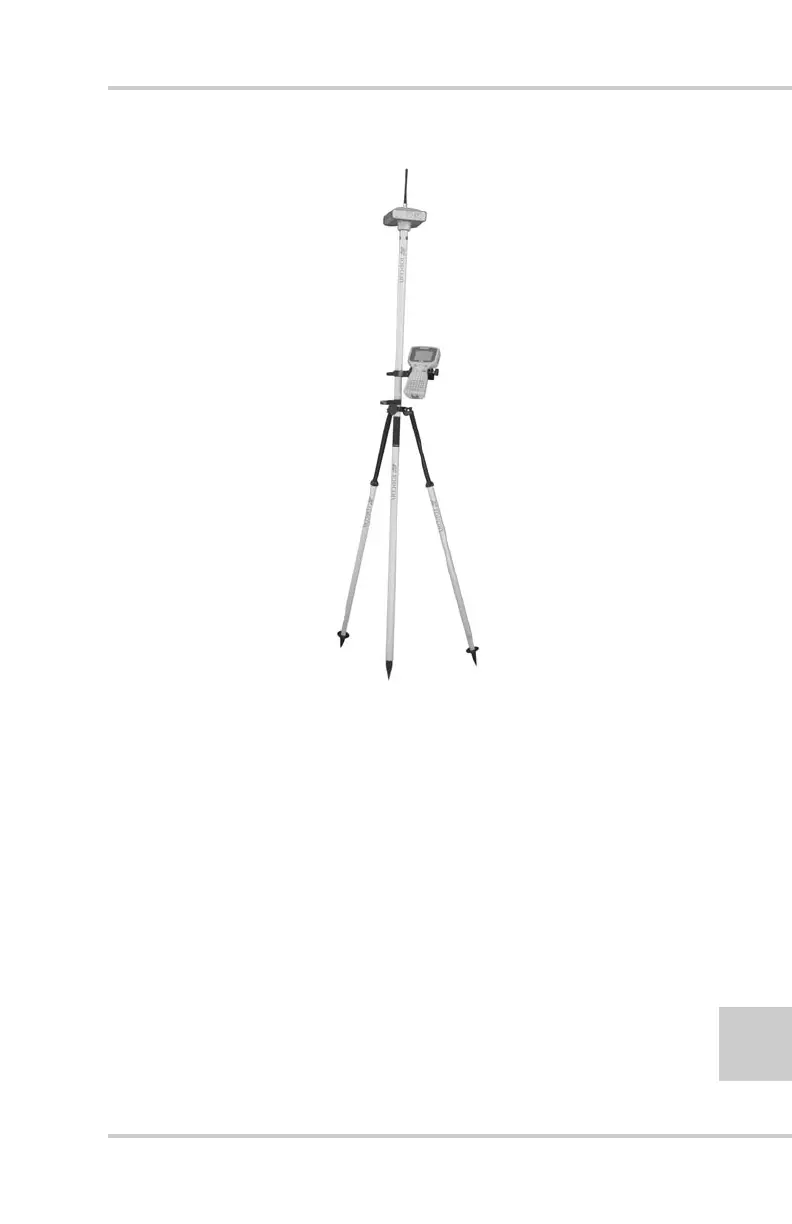

Figure 3-10. Rover Station Setup
1. Set up the Rover station receiver’s antenna as described
in “Receiver Setup” on page 3-1.
2. Connect the receiver and computer. See “Connecting
the Receiver and a Computer” on page 2-11.
3. Click ConfigurationReceiver.
4. Click the Positioning tab and set the Position Masks,
Elevation mask (degrees) parameter to 15 (Figure 3-7
on page 3-12).
