RemovingtheEngine(continued)
8.Removethefueltankandevaporativecanister;refertoRemovingtheFuel
Tank(page4–10)andDisassemblingtheFuelEvaporativeControlSystem
(page4–12).
9.Disconnectthethrottleandchokecontrolcablesfromtheengine.

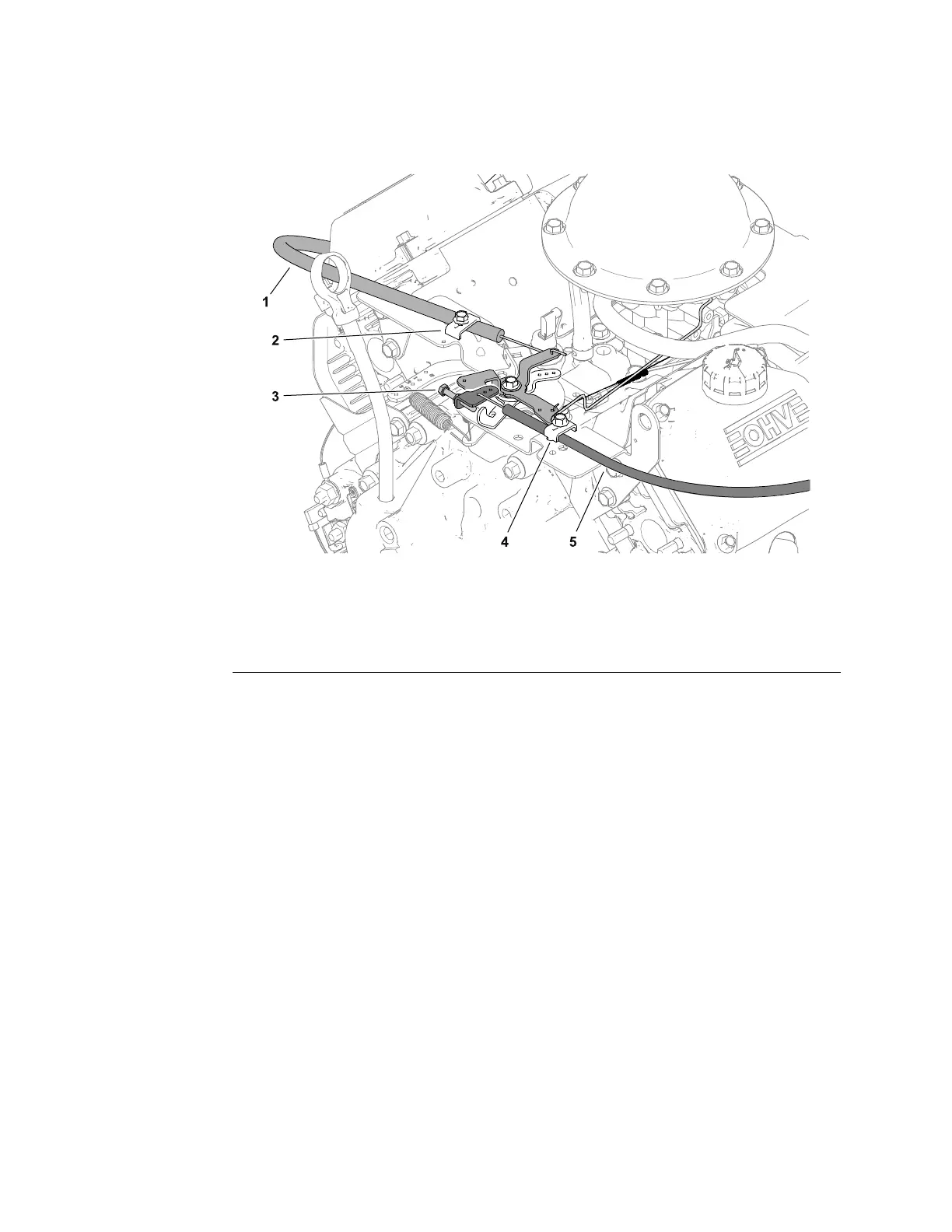

g402341
Figure16
1.Chokecontrolcable
4.Throttlecableclamp
2.Chokecableclamp
5.Throttlecontrolcable
3.Throttlestopscrew
Note:Recordthecontrolcablerouting,linkageconnection,andclamp
locationforassemblypurpose.
10.Disconnecttheengineelectricalconnections(frontrightcornerofengine):
•thepositive(+)batterycableandfusiblelinkharnessatthestartermotor
stud
•themachinewireharnessattheenginewireharnessconnector
•thenegative(-)batterycableandwireharnessgroundconnectorsatthe
enginecrankcase
Note:Recordwireroutingandthelocationofanycabletiesandclamps
removedforassemblypurpose.
