Multi Pro 1750 Page 7 − 31 Drive Train

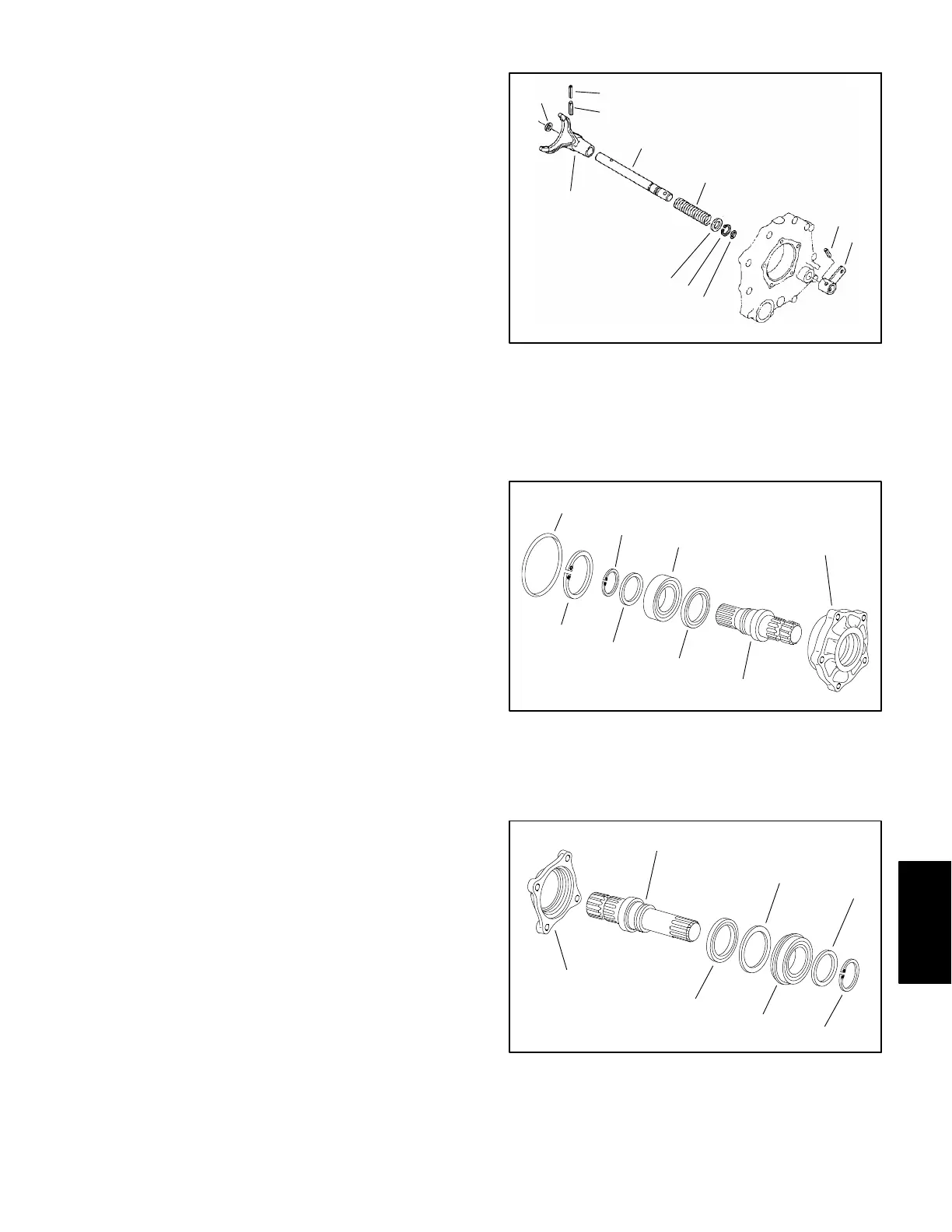

29.Disassemble differential lock fork shaft assembly:
A. Remove O−ring from fork shaft.
B. Remove snap ring, washer and spring.
C. Remove fork.
D. Remove lock pin if necessary.
1. O−ring
2. Snap ring
3. Washer
4. Spring
5. Fork
6. Roll pin
7. Roll pin
8. Washer
9. Fork shaft
10. Roll pin
11. Arm
Figure 41
6
5
4
3
2
1
7
8
9
10
11
30.Disassemble L.H. axle shaft:
A. Remove O−ring from differential carrier.
B. Remove snap ring.
C. Remove L.H. axle shaft assembly.
D. Remove snap ring and washer.
E. Use a bearing puller to remove bearing from axle
shaft.
F. Remove oil seal from differential carrier.
L.H. AXLE SHAFT
2
3
6
8
1
5
7
4
1. O−ring
2. Snap ring
3. L.H. axle shaft assembly
4. Snap ring
5. Washer
6. Bearing
7. Oil seal
8. Differential carrier
Figure 42
31.Disassemble R.H. axle shaft:
A. Remove R.H. axle shaft assembly from seal cov-
er.
B. Remove snap ring and washer from axle shaft.
C. Use a bearing puller to remove bearing.
D. Remove washer and oil seal from seal cover.
R.H. AXLE SHAFT
2
3
6
1
5
4
7
Figure 43
1. R.H. axle shaft assembly
2. Snap ring
3. Washer
4. Bearing
5. Oil seal
6. Washer
7. Seal cover
Drive Train
