Toshiba TOSVERT VF-AS3 User Manual

E6582062

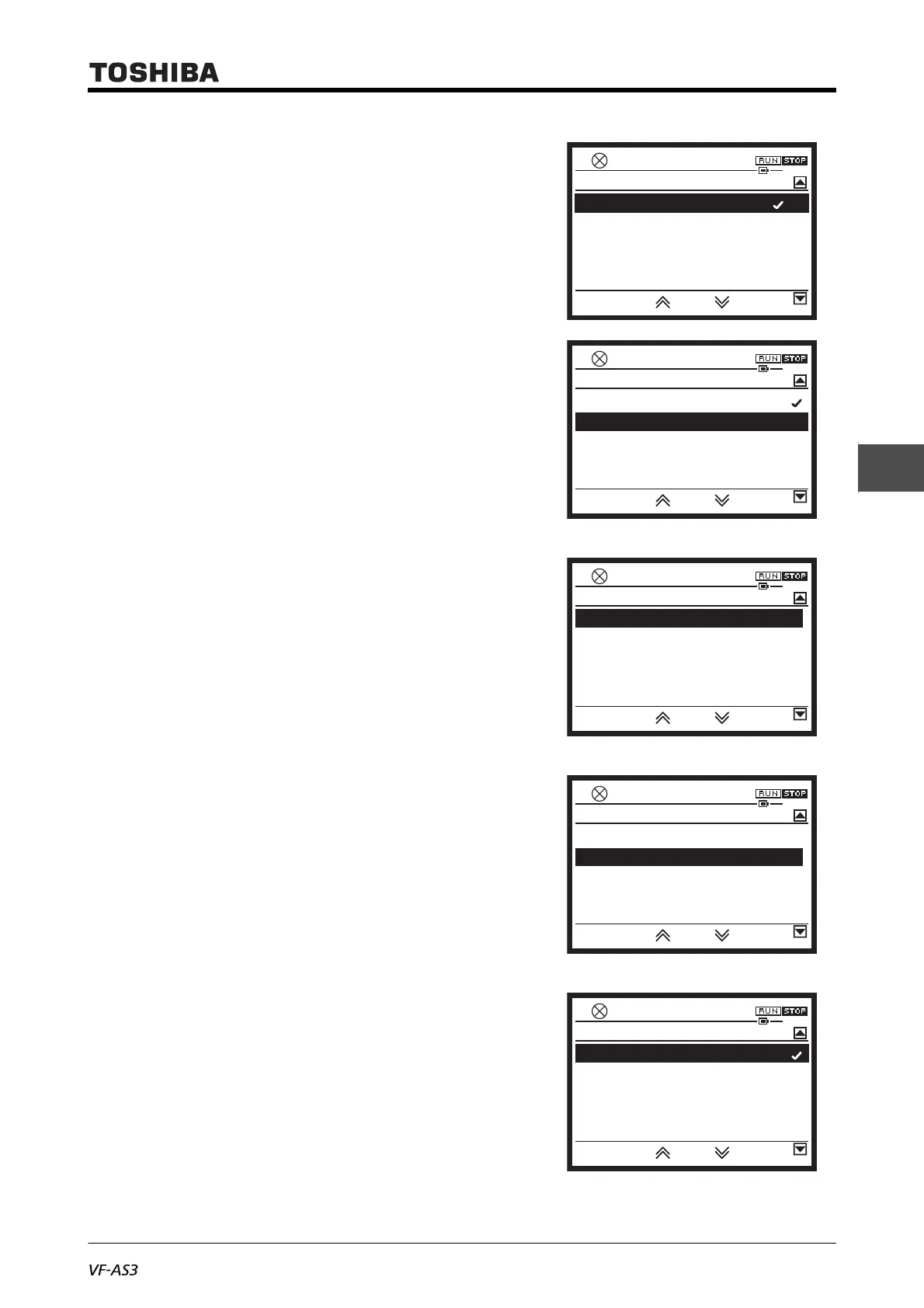

4-21 4. [Basic operation] Operation methods of motor
3
4
9
The setting screen is displayed.
3 Select "1: Operation panel, Extension panel" and
press the [OK] key.
The basic parameter screen is displayed.
Check that the setting value of <CMOd: Run
command select> is "1."
4 Select <FMOd: Frequency command select 1> and
press the [OK] key.
The setting screen is displayed.
0: Terminal
1: Operation panel,Ext panel
2: Embedded Ethernet
3: RS485 com (connector 1)
4: RS485 com (connector 2)
0.0HzSTOP
15:14
CMOd :Run command select
0: Terminal
1: Operation panel,Ext panel
2: Embedded Ethernet
3: RS485 com (connector 1)
4: RS485 com (connector 2)
0.0HzSTOP
15:15
CMOd :Run command select
0.0HzSTOP
15:15
Basic parameters
CMOd : Run command select
FMOd : Frequency command select 1
vb : Manual torque boost 1
vL : Base frequency 1
1
1
4.80%
60.0Hz
Pt : V/f Pattern 0
0.0HzSTOP
15:15
Basic parameters
CMOd : Run command select
FMOd : Frequency command select 1
vb : Manual torque boost 1
vL : Base frequency 1
1
1
4.80%
60.0Hz
Pt : V/f Pattern 0
2: Terminal RX
3: Terminal Ⅱ
4: Terminal AI4(option)
5: Terminal AI5(option)
0.0HzSTOP
15:16
FMOd :Frequency command select 1
1: Terminal RR

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
