Toshiba TOSVERT VF-AS3 User Manual

E6582062
2-53 2. Installation and wiring
2
3
9
10

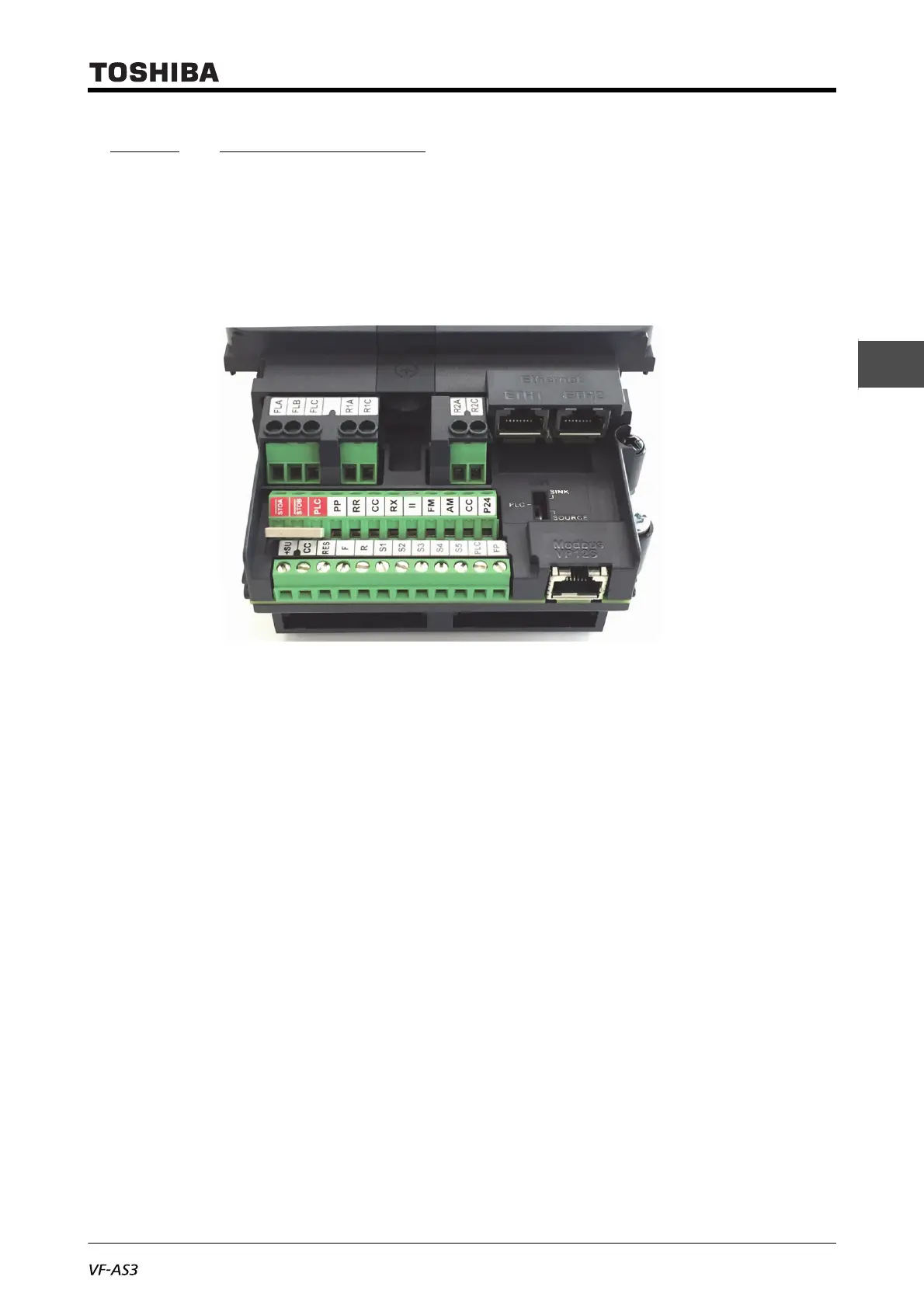

2. 3. 5 Control terminals
The control terminals are connected to external control equipment to control operation of the inverter
and motor and monitor the state externally.
■ Functions of control terminals
The control terminal block is common to all the models.

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
