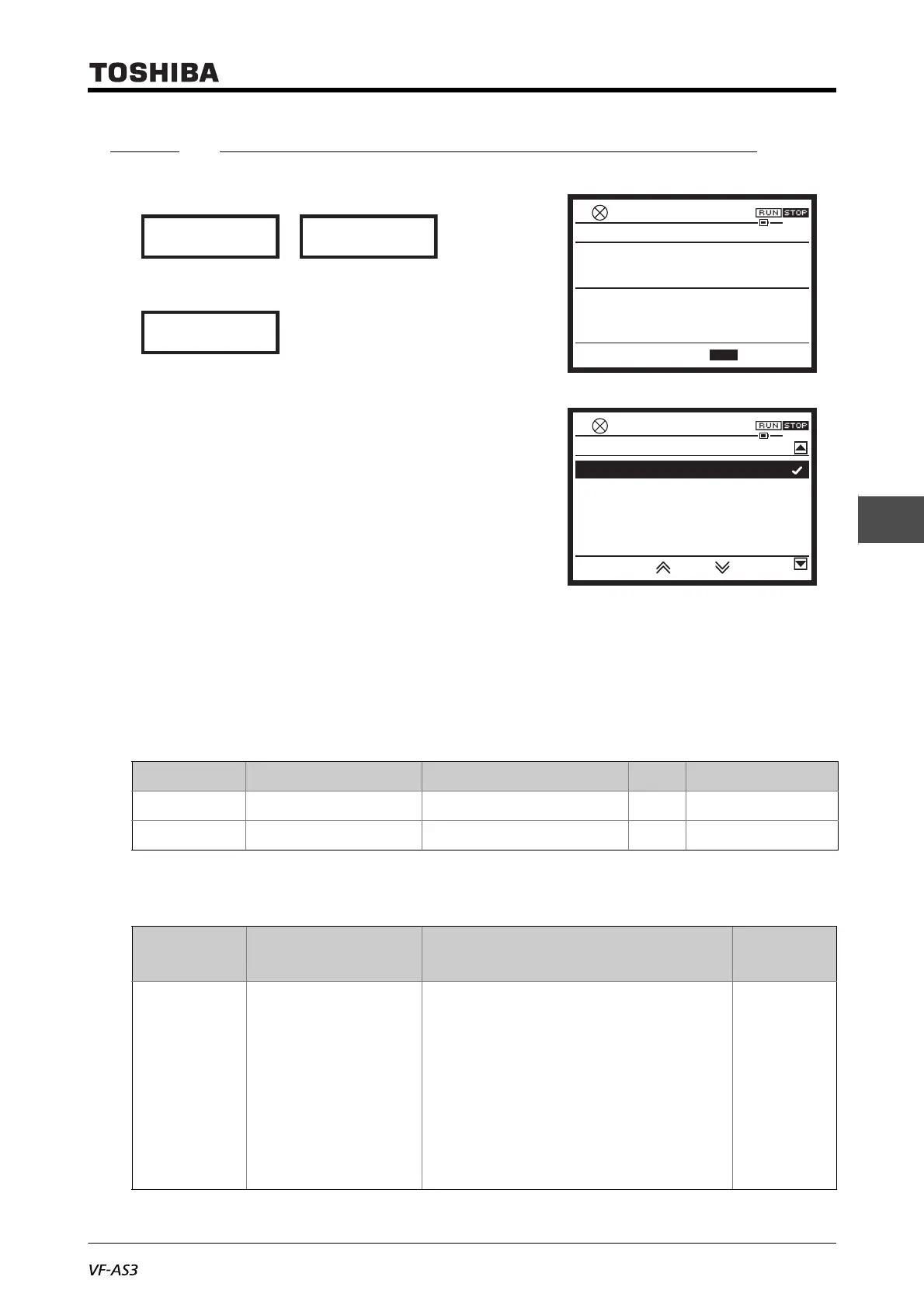

5. 2. 6 Adjusting the meter connected to the inverter
<FM: Terminal FM adjustment>
<FMSL: Terminal FM function>
<F671: Terminal AM adjustment>
<F670: Terminal AM function>
■ Function
To indicate the output frequency and output current of the inverter in the meter, connect the meter to
the terminal [FM] or [AM].
After connecting them, you should adjust the scale of the meter.
■ Parameter setting
Select the content to be indicated in the meter by <FMSL: Terminal FM function> and <F670: Terminal
AM function>.
Title Parameter name Adjustment range Unit Default setting
FM Terminal FM adjustment 0.1 - 250.0 % 100.0
F671 Terminal AM adjustment 0.1 - 250.0 % 100.0
Title Parameter name Adjustment range
Default
setting
FMSL Terminal FM function 0: Output frequency 0
1: Frequency command value
2: Output current
3: Input voltage (DC detection)
4: Output voltage
5: Stator frequency
6: Speed feedback frequency (real time)
7: Speed feedback frequency (1-second filter)
8: Torque
9: Torque command
0.0HzSTOP
15:11
Min: 0.1 Max: 250.0
X1000 X100 X1X10
Output frequency
0.0Hz
100.0%
FM :Terminal FM adjustment
Basic parameter Easy mode
Basic parameter
0.0HzSTOP
15:11
0: Output frequency
1: Frequency reference
2: Output current
3: DC Bus voltage
4: Output voltage
FMSL : Terminal FM function
