E6582062
10. Selection and installation of peripheral devices 10-12
9
10
10. 3. 6 USB communication conversion unit
It enables to set and manage parameters on a personal computer.
Connect between the RS485 communication connector 1 of the inverter and a personal computer. Use
the specific cable for the inverter side, and a commercial USB cable (USB 1.1/2.0 compatible A-B con-
nection type) for a personal computer side. Software PCM002Z for parameter management is required.
• Type-form: USB001Z
• Specific cable type-form: CAB0011 (1 m), CAB0013 (3 m), CAB0015 (5 m)
10. 3. 7 Flange mounting kit
It reduces heat rising up inside the cabinet.
10. 3. 8 Door mounting kit
It enables to mount operation panel on the cabinet door. Use the exclusive cable for interconnection
between this kit and the inverter. For detail, refer to “Door mounting kit instruction manual” (E6582159).
• Type-form: SBP010Z
• Specific cable type-form: CAB0071 (1 m), CAB0073 (3 m), CAB0075 (5 m) , CAB00710 (10 m)

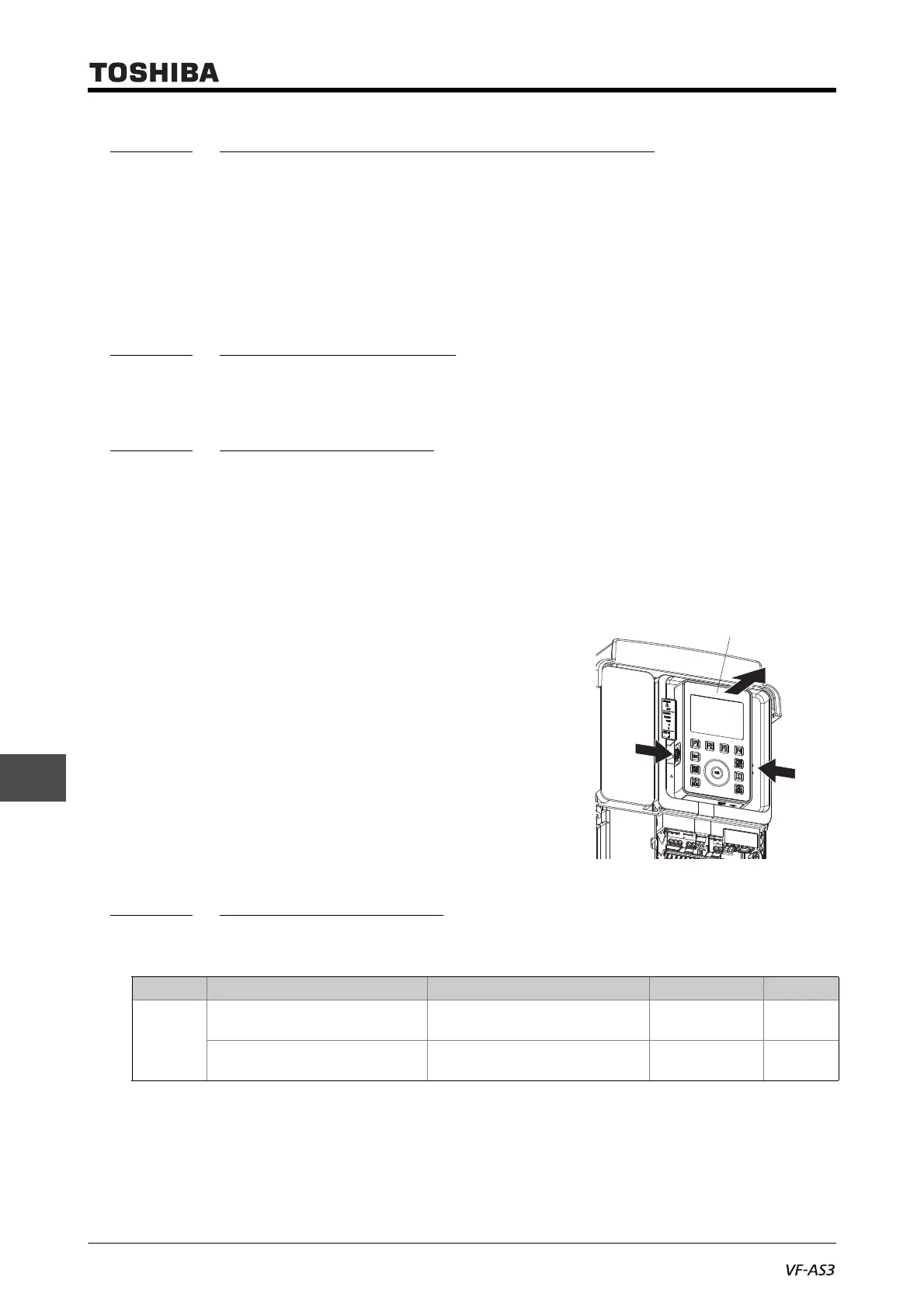

How to remove operation panel
While pressing the PUSH part located on both right and left
sides of the operation panel, pull the operation panel
straight upward.
How to mount operation panel again
Push the operation panel with fixing the connector back
side on RS485 communication connector 1 on control
block.
10. 3. 9 External option list
External options are shown in the next table.
Category Product name Specification / Ranges Type-form Remarks
Control
option
Door mounting kit Door mounting kit for operation
panel
SBP010Z Coming
soon
Option adapter For Safety option & For using case
of 3 options
SBP011Z Coming
soon
