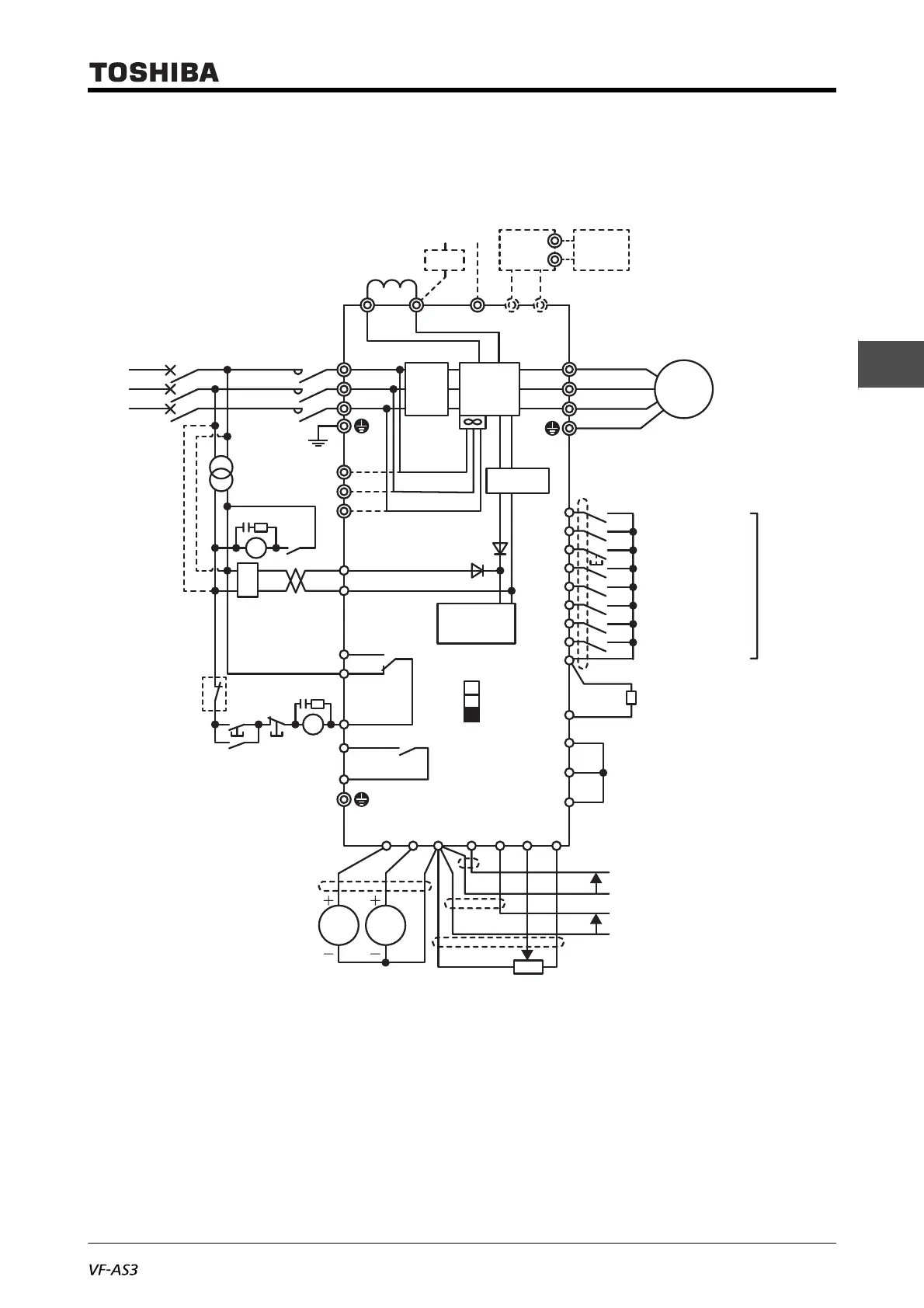

[Standard connection diagram - Source]
This diagram shows an example of a standard connection for 480 V class, 200 to 280 kW (frame
size A8).
*1 Be sure to mount the DC reactor. It is not required for DC power input terminal. A circuit between the terminals [PA/+] and [PO] is not short circuited
(at the time of shipping).
*2 To input DC power, connect the inverter between the terminals [PA/+] and [PC/-]. It is not used in conjunction with the DC reactor option DCL1.
*3 When the inverter is used with a DC power supply, a circuit to suppress an inrush current is required. For detail, refer to application manual "DC
power supply connect to inverter" (E6582156).
*4 When the inverter is used with a DC power supply, three-phase power input for cooling fan driving is required separately. For details, refer to applica-
tion manual "DC power supply connect to inverter" (E6582156).
*5 If a braking resistor (optional) is mounted, a braking unit (optional) is also required.
*6 For the switch function, refer to [2. 3. 5].
*7 To supply control power from an external power supply for backing up the control power supplied from the inverter, an optional control power supply
unit (CPS002Z) is required. In this case, it is used in conjunction with the inverter internal power supply.
*8 The reset signal is activated by ON→OFF trigger input.
*9 Connect to power to comply with OVC2 (Over Voltage Category 2). Isolation transformer is necessary when connecting to power supply (OVC3).
