Toshiba TOSVERT VF-AS3 User Manual

E6582062
2. Installation and wiring 2-42
2
9

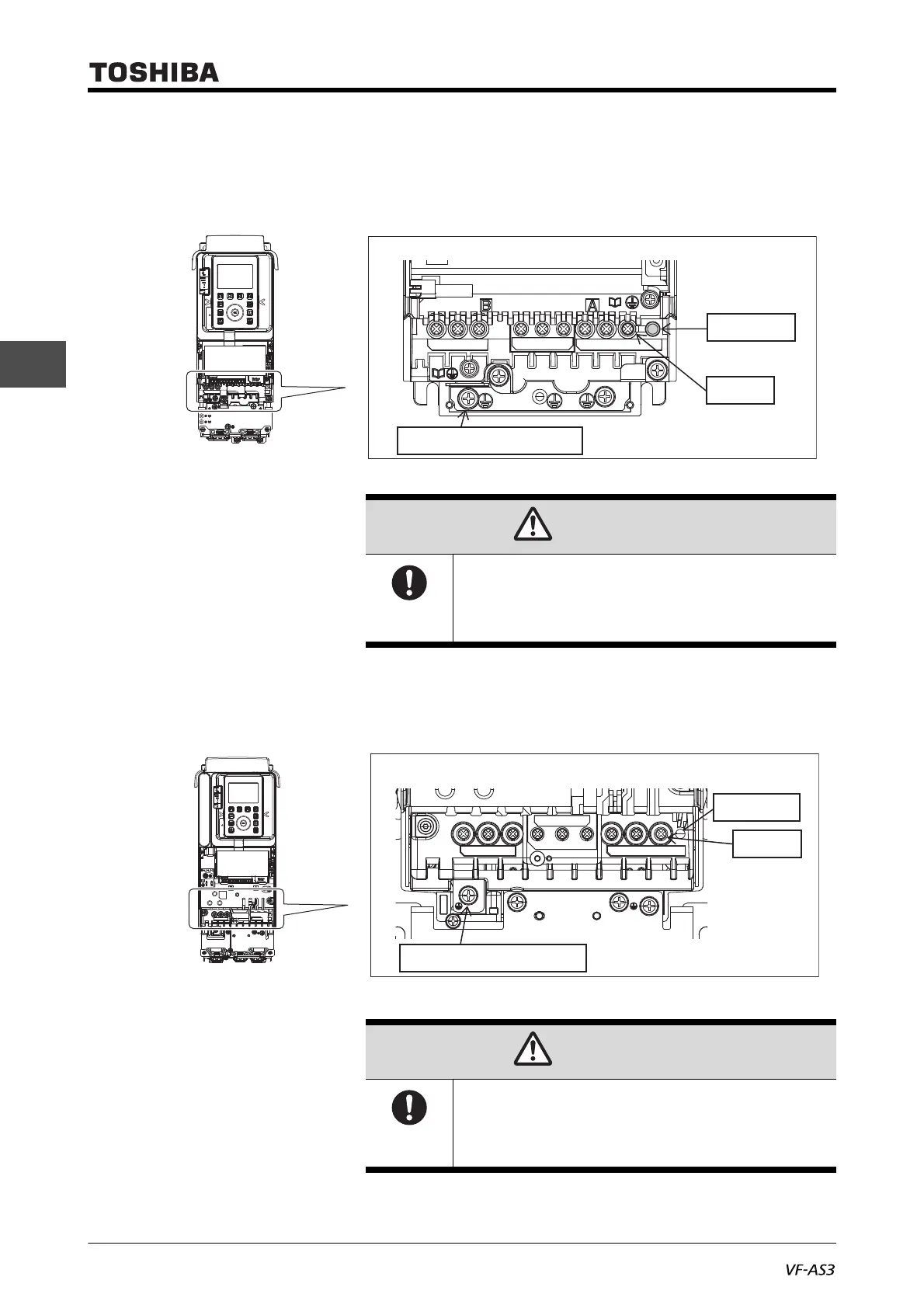

■ Arrangement of power terminals
1) Frame size A1
VFAS3-2004P to 2022P, VFAS3-4004PC to 4037PC
2) Frame size A2
VFAS3-2037P,VFAS3-4055PC, 4075PC
CAUTION
Mandatory
action
• Following type of screwdriver should be used for M4
screw;
PH2 (phillips, bit type2), shaft diameter 5.0 mm or less.
CAUTION
Mandatory
action
• Following type of screwdriver should be used for M4
screw;
PH2 (phillips, bit type2), shaft diameter 5.8 mm or less
Grounding terminal (M5 screw)
M4 screw
Charge lamp
Grounding terminal (M5 screw)
M4 screw
Charge lamp
