Toshiba TOSVERT VF-S11 User Manual

E6581158
F-6
6

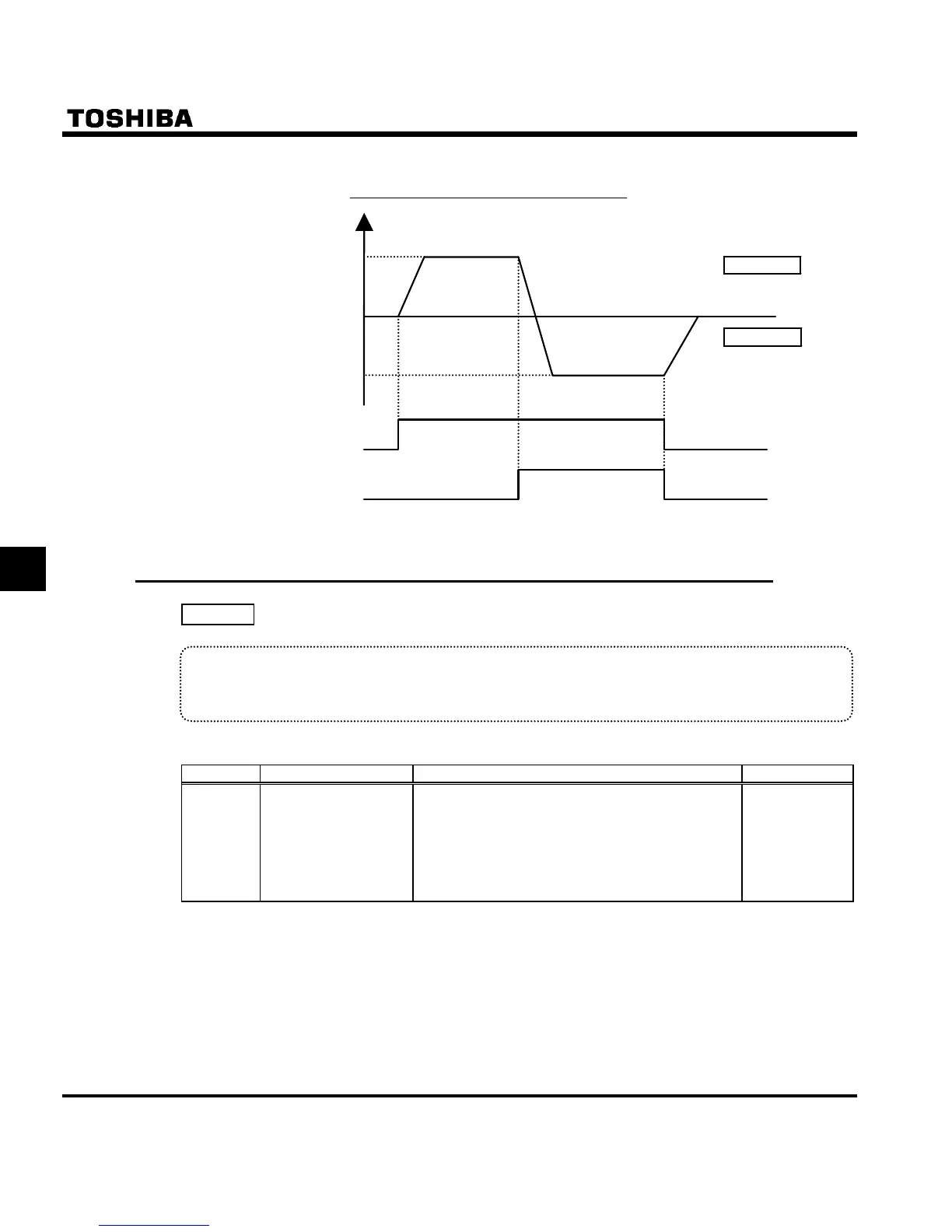

[H =  (Reverse)]: If an F command and an R command are entered simultaneously,
the motor will run in the reverse direction.
Output frequency [Hz]
Forward run
Reverse run
Run forward signal
Run backward signal
ON
OFF
ON
OFF
0
Set frequency
Set frequency
Time [s]
6.2.2 Changing the functions of VIA and VIB terminals
H : VIA/VIB terminal function selection
• Function
This parameter allows you to choose between signal input and contact signal input for the VIA and VIB
terminals.
Q Parameter setting
Title Function Adjustment range Default setting
H
Analog/contact input
function selection
(VIA/VIB terminal)
0: VIA - analog input VIB - anolog input
1: VIA - anolog input VIB - contact input (Sink)
2: VIA - analog input VIB - contact input (Source)
3: VIA - contact input (Sink) VIB - contact input
(Sink)
4: VIA - contact input (Source) VIB - contact input
(Source)
0
* When using the VIA and VIB terminals as contact input terminals in sink logic connection, be sure to
insert a resistor between the P24 terminal and the VIA/VIB terminals. (Recommended resistance: 4.7kΩ-
1/2W)
Note: When using the VIA terminal as a contact input terminal, be sure to turn the VIA slide switch to the V
position.

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
