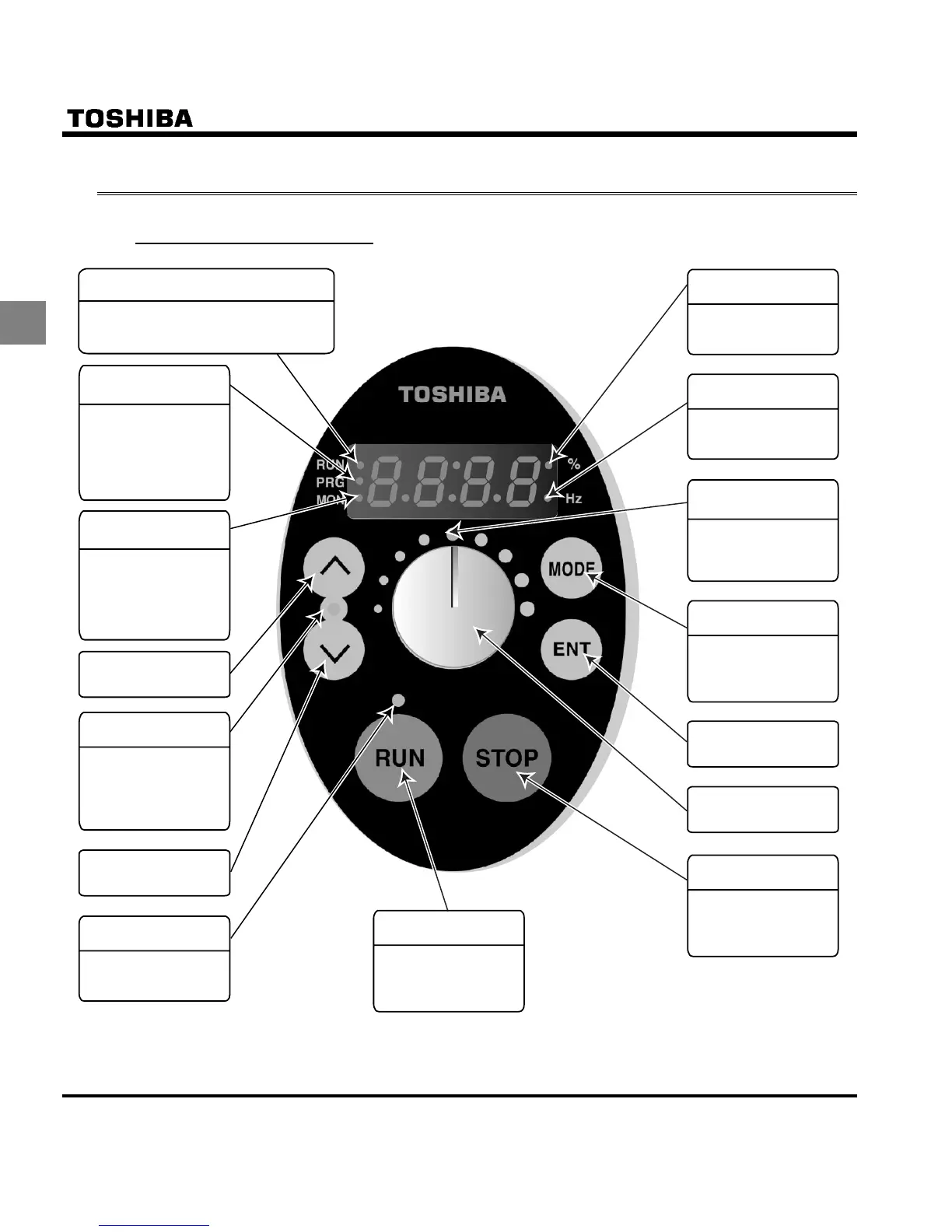

1.3 Names and functions
1.3.1 Outside view
Lights when an ON command is issued but
no frequency signal is sent out. It blinks
when operation is started.
RUN lamp
PRG lamp
Lights when the inverter
is in parameter setting
mode.
Blinks when the inverter
is placed in AUH Gr. U
mode.
Hertz (Hz) lamp
Lights when a numeric
value is displayed in Hz.
Percent (%) lamp
Lights when a numeric
value is displayed in %.
MON lamp
Lights when the inverter
is in monitor mode.
Blinks when the inverter
is placed in trip record
display mode.
Built-in potentiometer
lamp
Operation frequency can
be changed when the
built-in potentiometer
lamp is lit.
MODE key
Displays operation
frequency, parameters,
and error causes.
RUN key lamp
Lights when the RUN
key is enabled.
RUN key
Pressing this key while
the RUN key lamp is
lighted starts operation.
STOP key
Every pressing of this
key while the RUN key
lamp is it will cause a
slowdown stop.
Up/Down key lamp
Pressing up or down key
when this lamp is lighted
allows the setting of
operation frequency.
Up key
Down key
Enter key
Built-in potentiometer
[Front panel 1]

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
