Toshiba TOSVERT VF-S11 - Standard Connection Diagram

E6581158
B-4
2

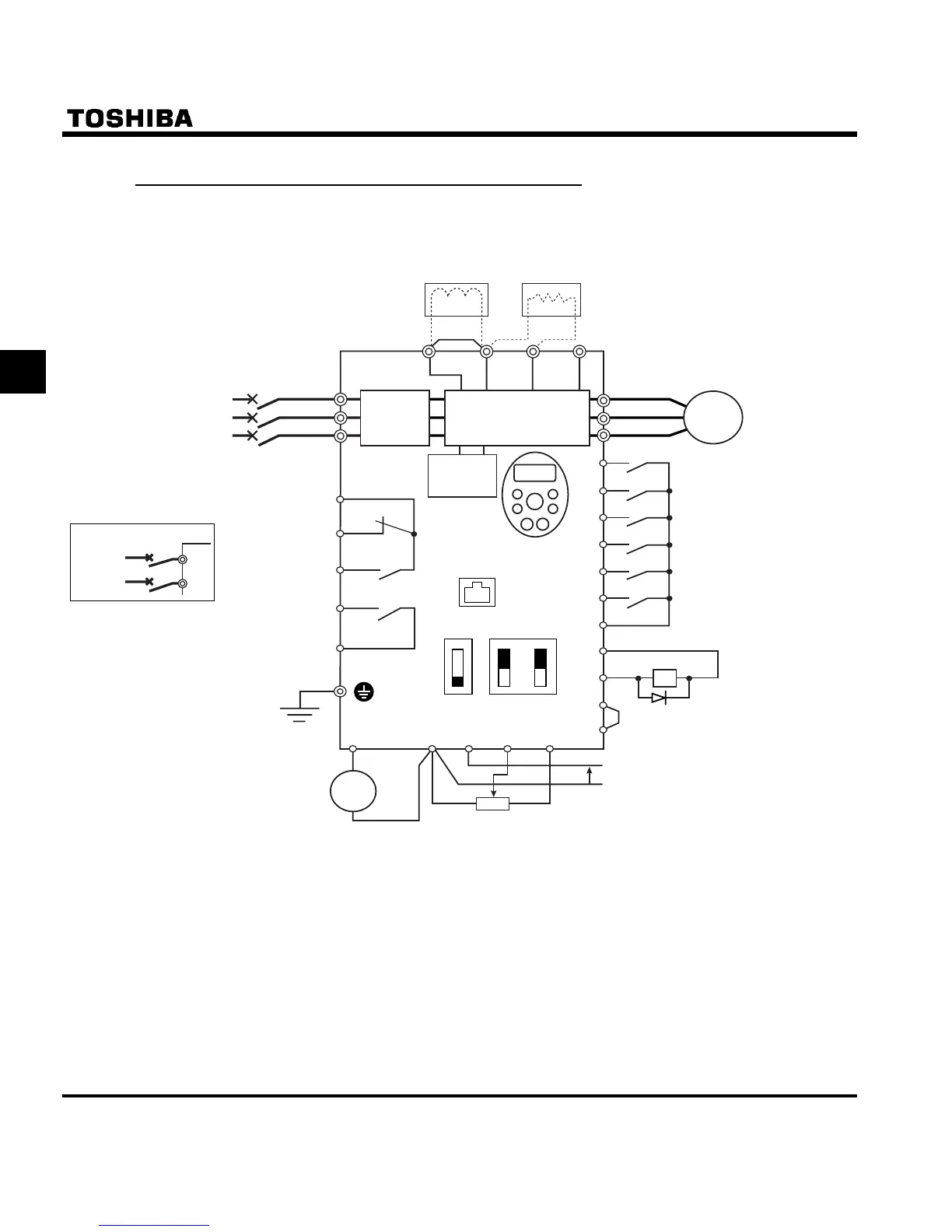

2.2.1 Standard connection diagram 1
This diagram shows a standard wiring of the main circuit.
MCCB
*1
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
I M
FLC
FLB
FLA
RY
RC
Motor
F
R
RES
S1
S2
S3
CC
P24
OUT
NO
CC
FM
PLC
CC
VIA
VIB
PP
+
+
-
-
P0
PA/+
PB PC/-
Meter
Voltage signal: 0-10V
(Current signal: 4-20mA)
External potentiometer (1~10kΩ)
(or input voltage signal across VIB-CC terminals: 0-10V)
Control
circuit
Operation panel
Protective function
activation output
Ry
VF-S11
Frequency
meter
(ammeter)
Main circuit
Noise
filter
DC reactor (DCL)
*2 (option)
Connector for
common serial
communications
Forward (rotation signal)
Reverse (rotation signal)
Reset
Preset-speed 1
Preset-speed 2
Preset-speed 3
Common
Braking resistor (option)
Standard connection diagram - sink (common:CC)
Low-speed
signal output
MCCB(2P)
R/L1
S/L2
Power supply
1
φ
200〜240V
-50/60Hz
Speed reach
signal output
I ISINK
SW1
SOURCE
FM
V
VIA
V
Main circuit power supply
200V class: three-phase 200-240V
-50/60Hz
400V class: three-phase 380-500V
-50/60Hz
*1: The T/L3 terminal is not provided
for single-phase models.
Use the R/L1 and S/L2 terminal
as input terminals.
*2: The inverter came with the PO
and the PA/+ terminals shorted by
means of a shorting bar.
Before installing the DC reactor (DCL),
remove the bar.
*3: When using the OUT output terminal in
sink logic mode, short-circuit the NO and
CC terminals.
*3
