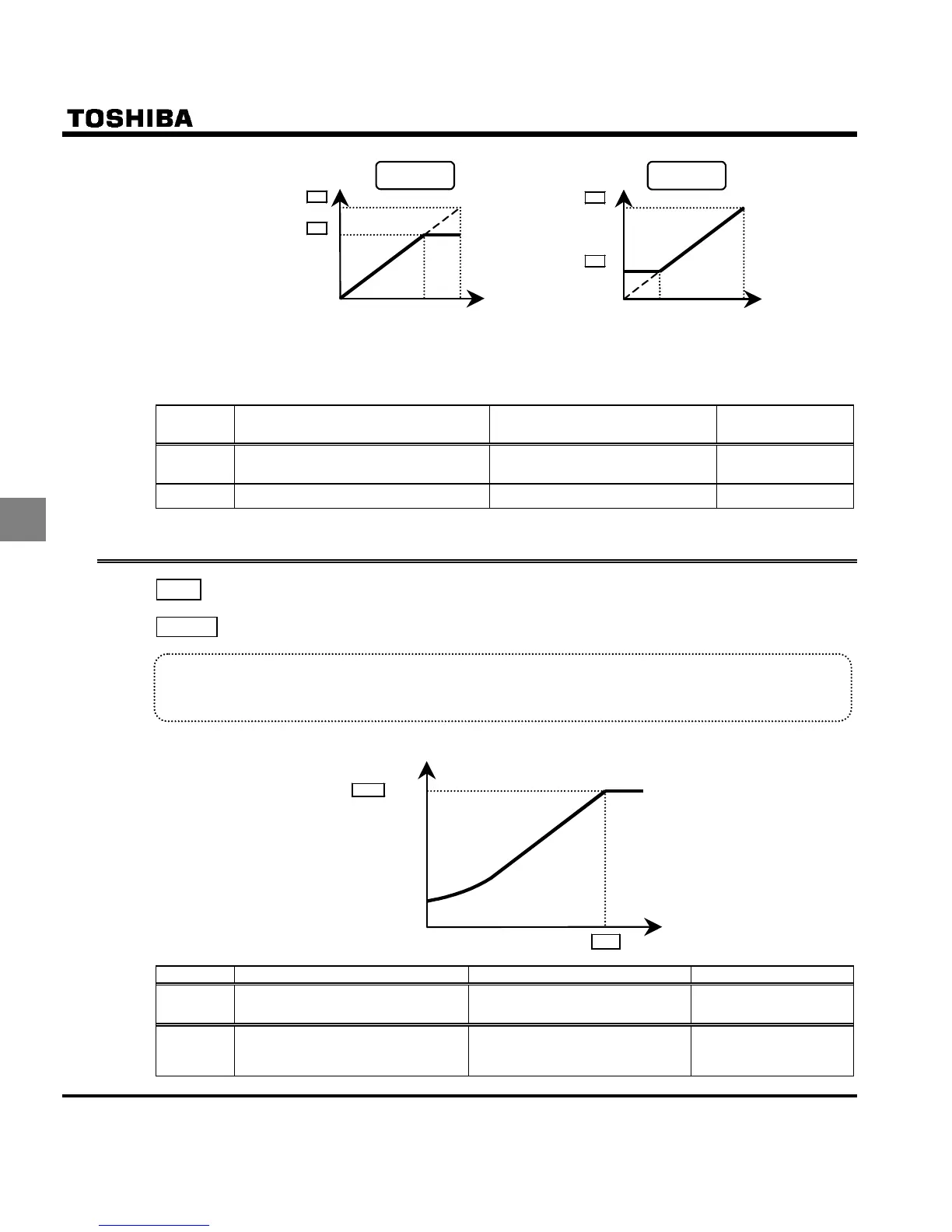

E6581158
E-16
5
0ųųųųųųųųųųų100%
Output frequency (Hz)
WN
HJ
Frequency setting signal
* Frequencies that go
higher than WN will not
be output.
Upper limit
frequency
0ųųųųųųųųųųų100%
Output frequency (Hz)
HJ
NN
Frequency setting signal
* The output frequency
cannot be set at less than
NN.
Lower limit
frequency
Q Parameter setting
Title Function Adjustment range
Factory default
setting
WN
Upper limit frequency 0.5 - HJ (Hz)
50.0 (WP type)
60.0 (WN, AN type)
NN
Lower limit frequency 0.0 - WN (Hz) 0.0
5.10 Base frequency
XN
: Base frequency 1
XNX
: Base frequency voltage 1
Function
Sets the base frequency and the base frequency voltage in conformance with load specifications or the
Base frequency.
Note:This is an important parameter that determines the constant torque control area.
Output voltage [V]
Base frequency voltage
XNX
XN Output frequency (Hz)
0
Title Function Adjustment range Factory default setting
XN
Base frequency 1 25.0-500.0 (Hz)
50.0 (WP type)
60.0 (WN, AN type)
XNX
Base frequency voltage1
50-330 (V) : 200V class
50-660 (V) : 400/600V class
230 (200V class)
460 (400V class)
575 (600V class)
