Toshiba TOSVERT VF-S11 User Manual

E6581158
C-6
3

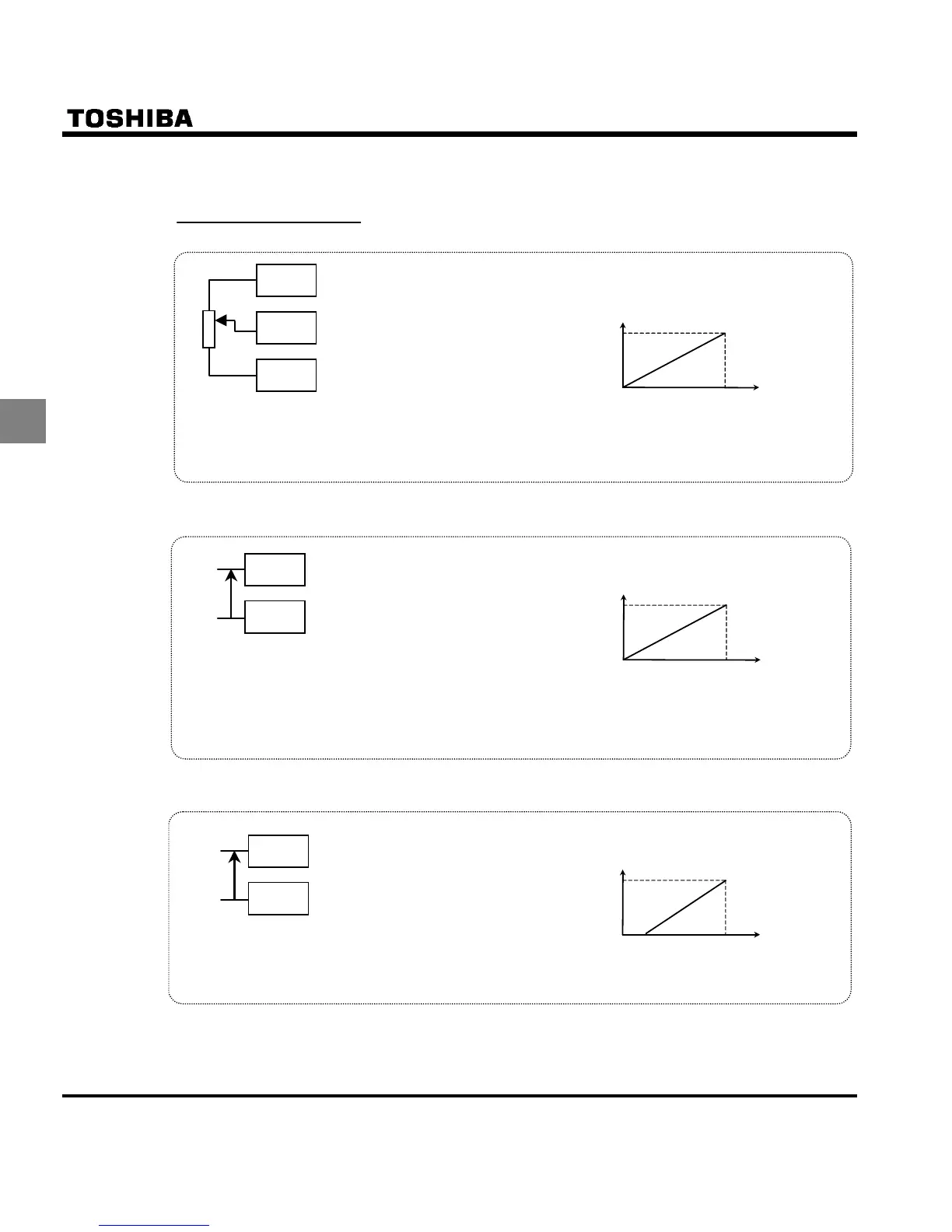

(3) Setting the frequency using the operation panel (HOQF= or )
Q Frequency setting
1) Setting the frequency using external potentiometer
: Setting frequency
using potentiometer
ŬPotentiometer
Setting frequency using the potentiometer (1-10kΩ, 1/4W)
For more detailed information on adjustments, see 6.5.
Frequency
60Hz
0
MIN MAX
* The input terminal VIA can be used in the same way.
HOQF=: VIA effective, HOQF=: VIB effective
For more details, see 6.5.
PP
CC
VIB
2) Setting the frequency using input voltage (0~10V)
ŬVoltage signal
Setting frequency using voltage signals (0∼10V).
For more detailed information on adjustments, see 6.5.
Frequency
60Hz
0
0Vdc 10Vdc
* The input terminal VIB can be used in the same way.
ųHOQF=: VIA effective,HOQF=: VIB effective
ųFor more details, see 6.5.
Note: Be sure to turn the VIA slide switch to the V (voltage) position.
CC
VIA+
-
: Voltage signal 0-10mAdc
3) Setting the frequency using current input (4~20mA)
ŬCurrent Signal
Current signal Setting frequency using current signals (4~20mA).For
more detailed information on adjustments, see 6.5.
Frequency
60Hz
0
4mAdc 20mAdc
* Setting of parameters also allow 0-20mAdc.
Note: Be sure to turn the VIA slide switch to the I (current) position.
CC
VIA+
-
: Current signal 4-20mAdc
