Toshiba TOSVERT VF-S11 User Manual

E6581158
C-7
3

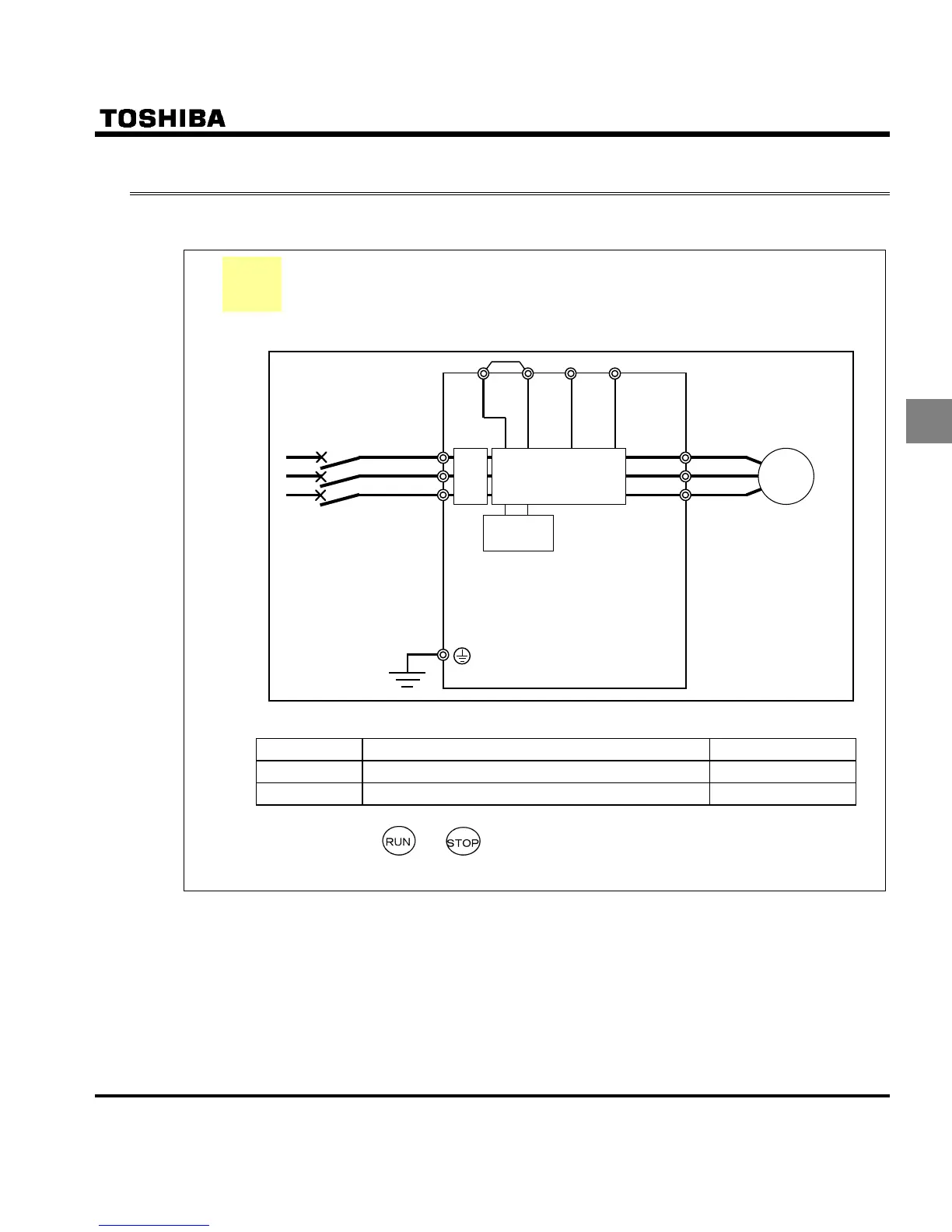

3.2 How to operate the VF-S11
Overview of how to operate the inverter with simple examples.
Setting the operation frequency using built-in potentiometer and run-
ning and stopping using the operation panel.
(1) Wiring
Parameter setting (default setting)
Title Function Programmed value
EOQF
Command mode selection 1
HOQF
Frequency setting mode selection 1 0
(3) Operation
Run/stop: Press the
and keys on the panel.
Frequency setting: Set adjusting position of notches on the potentiometer.
Braking
circuit
Motor
IM
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
PO
PC/-
PB
PA/+
Main circuit
MCCB
Noise
filter
Ex.1

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
