C-8
3

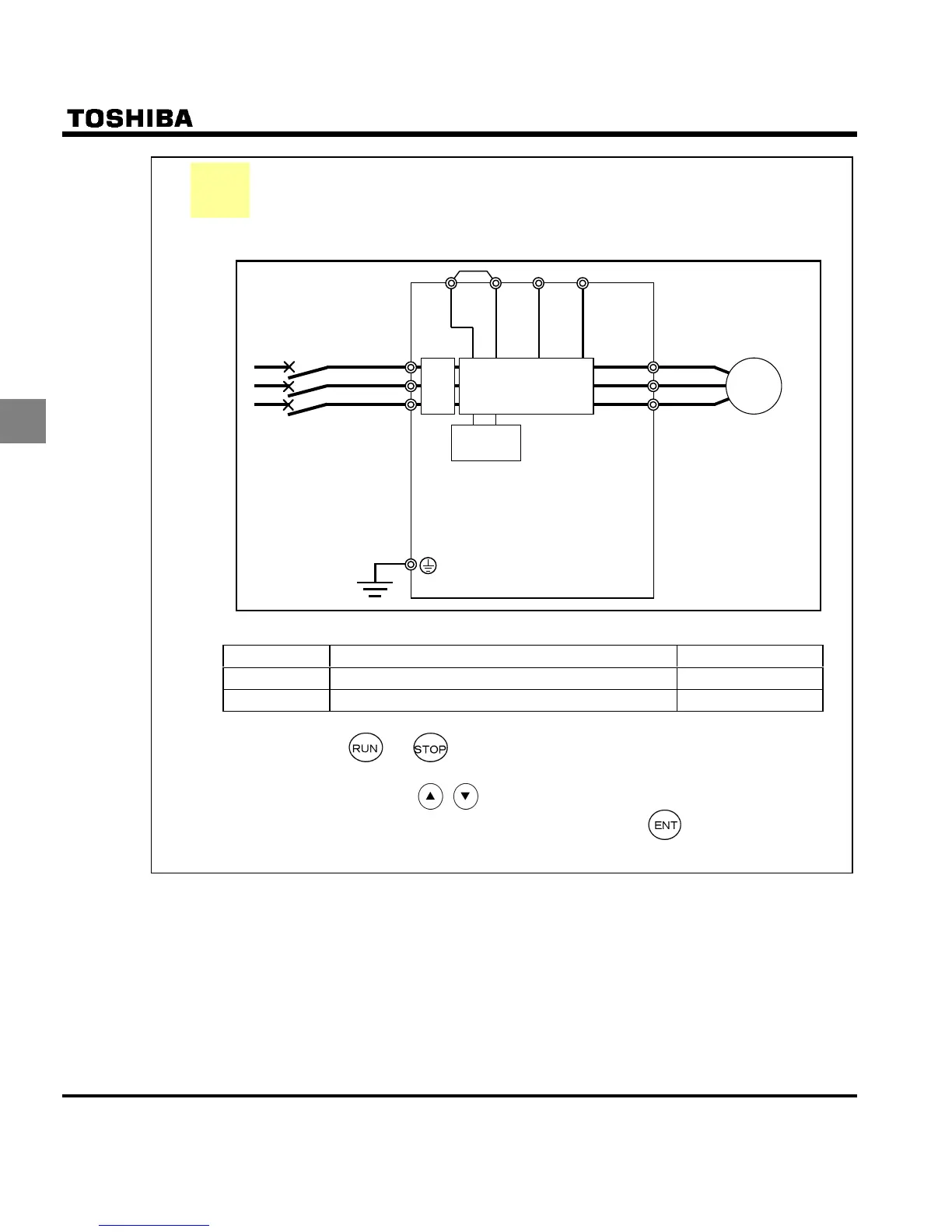

Setting the operation frequency using the operation panel and run-
ning and stopping using the operation panel.
(1) Wiring
(2) Parameter setting
Title Function Programmed value
EOQF
Command mode selection 1
HOQF
Frequency setting mode selection 1 3
(3) Operation
Run/stop: Press the
and keys on the panel.
Frequency setting: Set with the
keys on the operation panel.
To store the set frequencies in memory, press the
key.
HEand the set frequency will flash on and off alternately.
Braking
circuit
Motor
IM
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
PO
PC/-
PB
PA/+
Main circuit
MCCB
Noise
filter
Ex.2

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
