Toshiba TOSVERT VF-S11 User Manual

E6581158
F-73
6

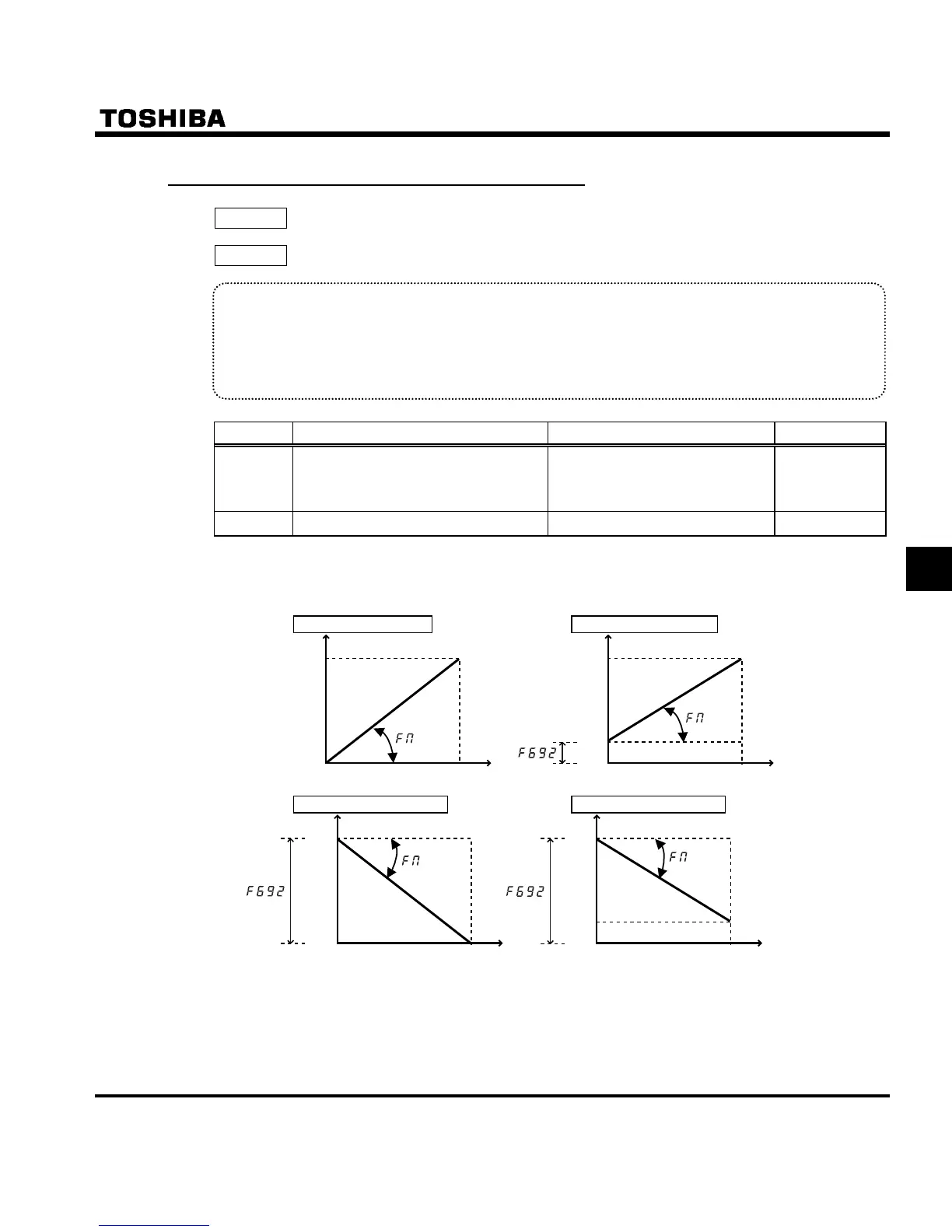

6.20.2 Calibration of analog outputs
H : Inclination characteristic of analog output
H
: Bias of analog output
• Function
Output signals from FM terminals are analog voltage signals. Their standard setting range is from 0
to 7.5Vdc.
Using the FM slide switch in the inverter, you can switch to 0-20mA output. Also, using these
parameters, you can calibrate the output to 4-20mAdc or 20-4mAdc.
Title Function Adjustment range Default setting
H
Inclination characteristic of analog
output
0: Negative inclination (downward
slope)
1: Positive inclination (upward
slope)
1
H
Bias of analog output
0-100%
0
Note: To switch to 0-20mAdc (4-20mAdc), turn the FM slide switch to the I position.
Q Example of setting
H=1, H=0 H=1, H=20
0
20
(mA)
0 100%
4
20
(mA)
0 100%
H=0, H=100 H=0, H=100
0
20
(mA)
0 100%
: Large gain
4
20
(mA)
0 100%
: Small gain
, The analog output inclination can be adjusted using the parameter HO.

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
