E6581158
H-4
8

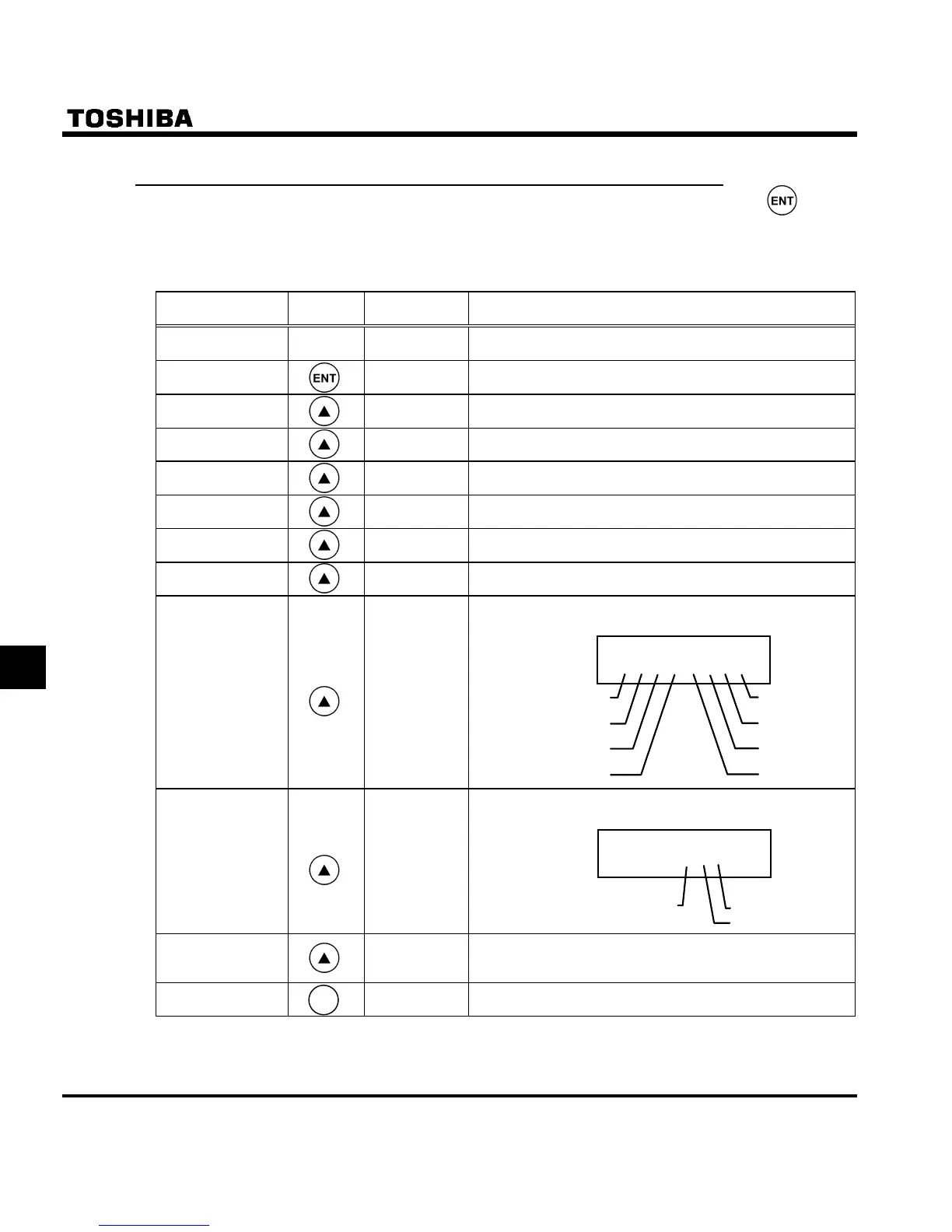

8.1.2 Display of detailed information on a past trip
Details on a past trip (of trips 1 to 4) can be displayed, as shown in the table below, by pressing the key
when the trip record is selected in the status monitor mode.
Unlike the "Display of detailed trip information at the occurrence of a trip" in 8.2.2, details on a past trip can be
displayed, even after the inverter is turned off or reset.
Item displayed
Key
operated
LED display Description
Past trip 1
QE
⇔
Past trip 1 (displayed alternately)
Continuous trips P
The number of time the same trip occurred in succession is
displayed. (Unit: times)
Operation
frequency
The operation frequency when the trip occurred is
displayed.
Direction of
rotation
HTH
The direction of rotation when the trip occurred is displayed.
(HTH: Forward run, HTT: Reverse run)
Operation fre-
quency command
H
The operation command value when the trip occurred is
displayed.
Load current
E
The inverter output current when the trip occurred is
displayed. (%/A)
Input voltage
[
The inverter input voltage (DC) when the trip occurred is
displayed. (%/V).
Output voltage R
The inverter output voltage when the trip occurred is
displayed. (%/V)
Input terminal
___KK_KK
The ON/OFF statuses of the control input terminals (F, R,
RES, S1, S2, S3, VIB and VIA) are displayed in bits.
ON:
OFF: _
Output terminal
_KK
The ON/OFF statuses of the control output terminals (RY,
OUT and FL) are displayed in bits.
ON:
OFF: _
Cumulative
operation time
V
The cumulative operation time when the trip occurred is
displayed.
(0.01=1 hour, 1.00=100 hours)
Past trip 1
QE
⇔
Press this key to return to past trip 1.
_KK
RY-RC
FL
OUT-NO
MO
MOMO
MODE
DEDE
DE
___KK_KK
VIA
VIB
S3
S2
RES
S1
R
F
Note 1
Note 3
Note 4
Note 5
Note 9
Note 7
Note 2
