Toshiba TOSVERT VF-S11 User Manual

E6581158
F-10
6
3) Sink logic/source logic input
Sink logic/source logic (input/output terminal logic) switching is possible.
For more details, see 2.3.2.

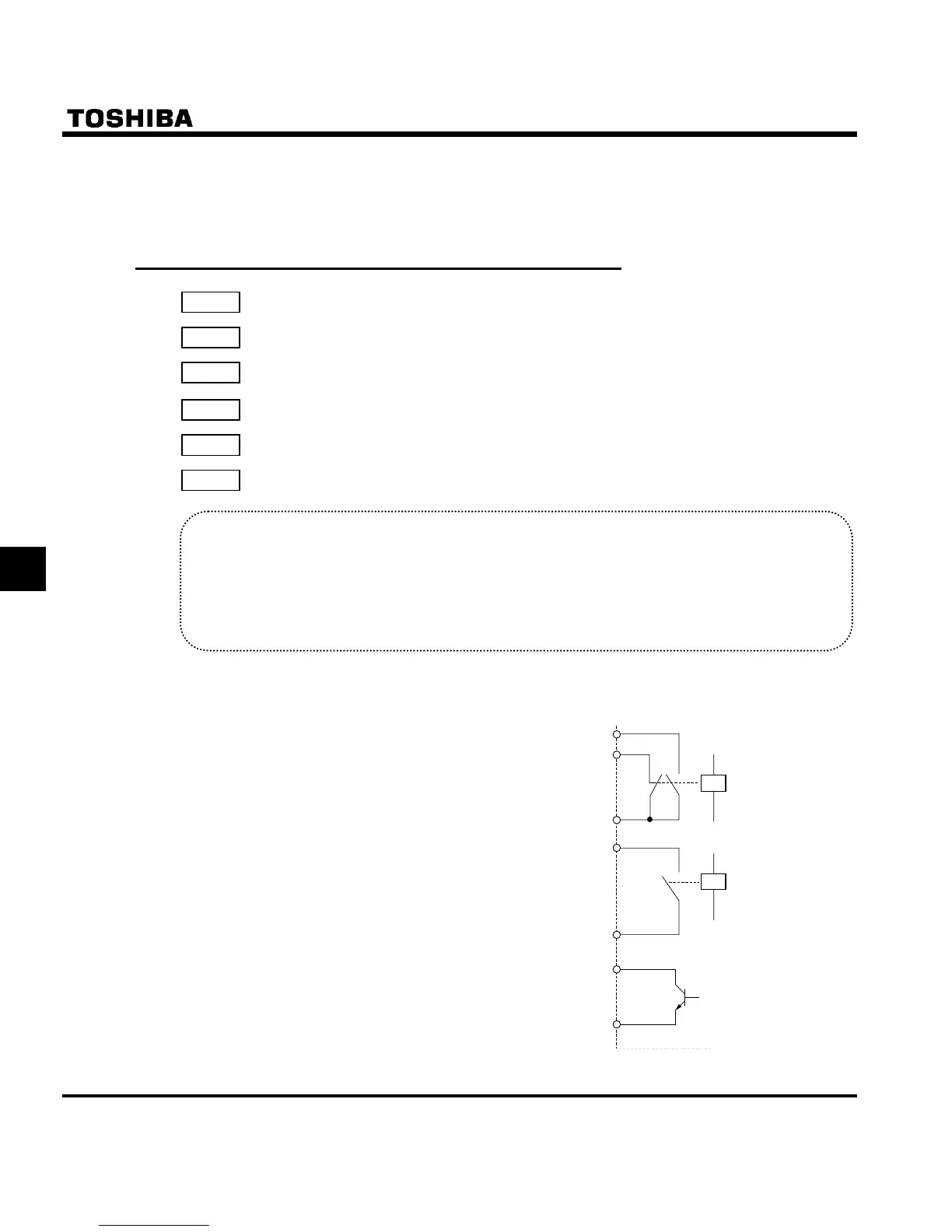

6.3.3 Modifying output terminal functions
H : Output terminal selection 1A (RY-RC)
H : Output terminal selection 2A (OUT-NO)
H : Output terminal selection 3 (FLA, FLB, FLC)
H : Output terminal selection 1B (RY-RC)
H : Output terminal selection 2B (OUT-NO)
H : Output terminal logic selection (RY-RC, OUT-NO)
• Function
Use the above parameters to send various signals from the inverter to external equipment.
By setting parameters for the RY-RC, OUT-NO and FL (FLA, FLB and FLC) terminals on the terminal
board, you can use 58 functions and functions obtained by combining them.
To assign only one function to output terminals, assign the function to H and Hwhile
leaving H to H as they are set by default.
Q Examples of application
Function of RY-RC:
Can be set using parameter
H

Function of FLA, B, C:
Can be set using parameterH
Function of OUT-NO:
Can be set using parameterH
FLA
FLC
RY
RC
NO
OUT
FL
RY
FLB

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
