Toshiba TOSVERT VF-S11 User Manual

E6581158
J-5
10

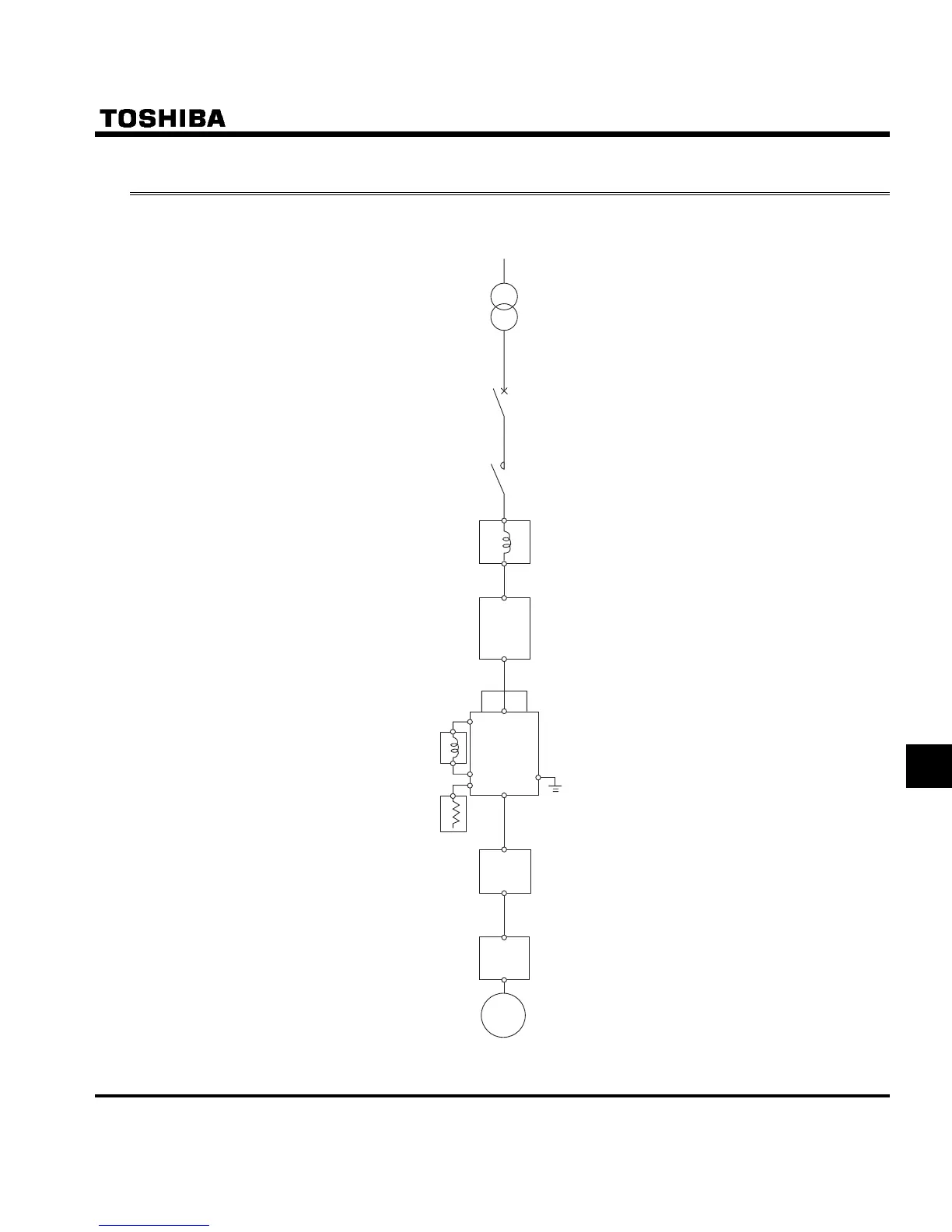

10.4 Optional external devices
The following external devices are optionally available for the VF-S11 series of inverters.
(1) Input AC reactor
ACL
Non-fuse breaker
MCCB
Power supply
Magnetic contactor
MC
(3) High-attenuation
radio noise filter
(4) Zero-phase reactor
ferrite core-type
radio noise filter
(2) DC reactor
N.F
N.F
VF-S11
(4)
Zero-phase reactor
ferrite core-type
radio noise filter
IM
(5)
Foot-mounted
noise filter
(7)
Braking resistor
(6)
EMC plate
(attached as standard)
(8)
Motor-end surge voltage
suppression filter
(for 400V models only)
Motor

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
