Toshiba TOSVERT VF-S11 User Manual

E6581158
D-5
4
4.1.2 How to set extended parameters
The VF-S11 has extended parameters to allow you to make full use of its functions.
All extended parameters are expressed with H and three digits.
Basic parameters
H
H᳸H
ENT
Press the MODE key once and use the VW key
to select H from the basic parameters.
Press the V key or the W key to
change the set value. Pressing
the ENTER key allows the reading
of parameter setting.
MODE

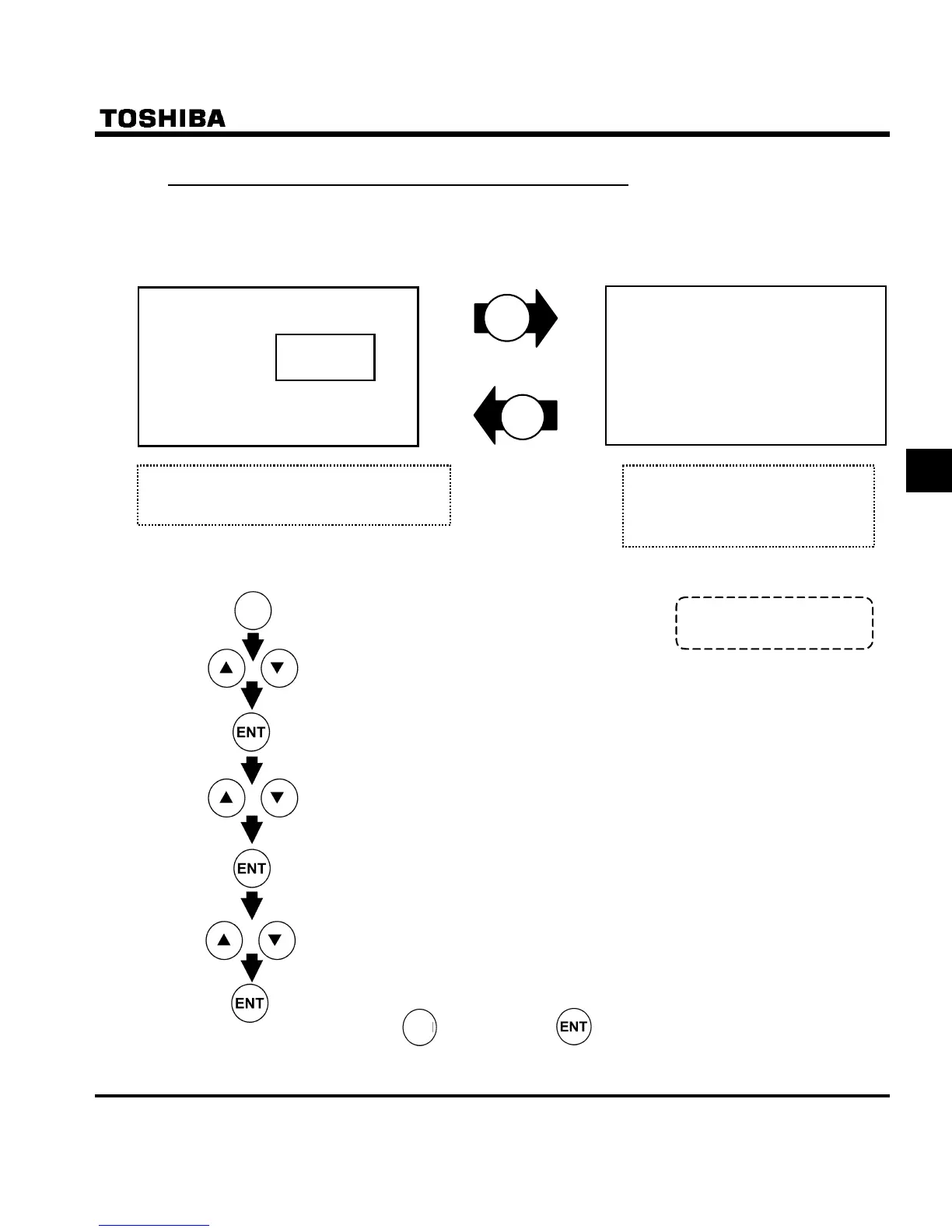

[Steps in key entry for extended parameters]
: switches to the setting monitor mode.(Displays CWJ)
: Selects the extended parameter whose setting needs to be changed.
: Changes the parameter setting.
Saves the changed value of the extended parameter setting.
Pressing the key instead of the key moves back to the previous status.
: Selects "H" from basic parameters.
: The first extended parameter “HK” (Low-speed signal output frequency) is displayed.
: Reads the programmed parameter setting.
MODE
MODE
* See 11.3 for extended
parameters.

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
