Toshiba TOSVERT VF-S11 User Manual

E6581158
A-27
1

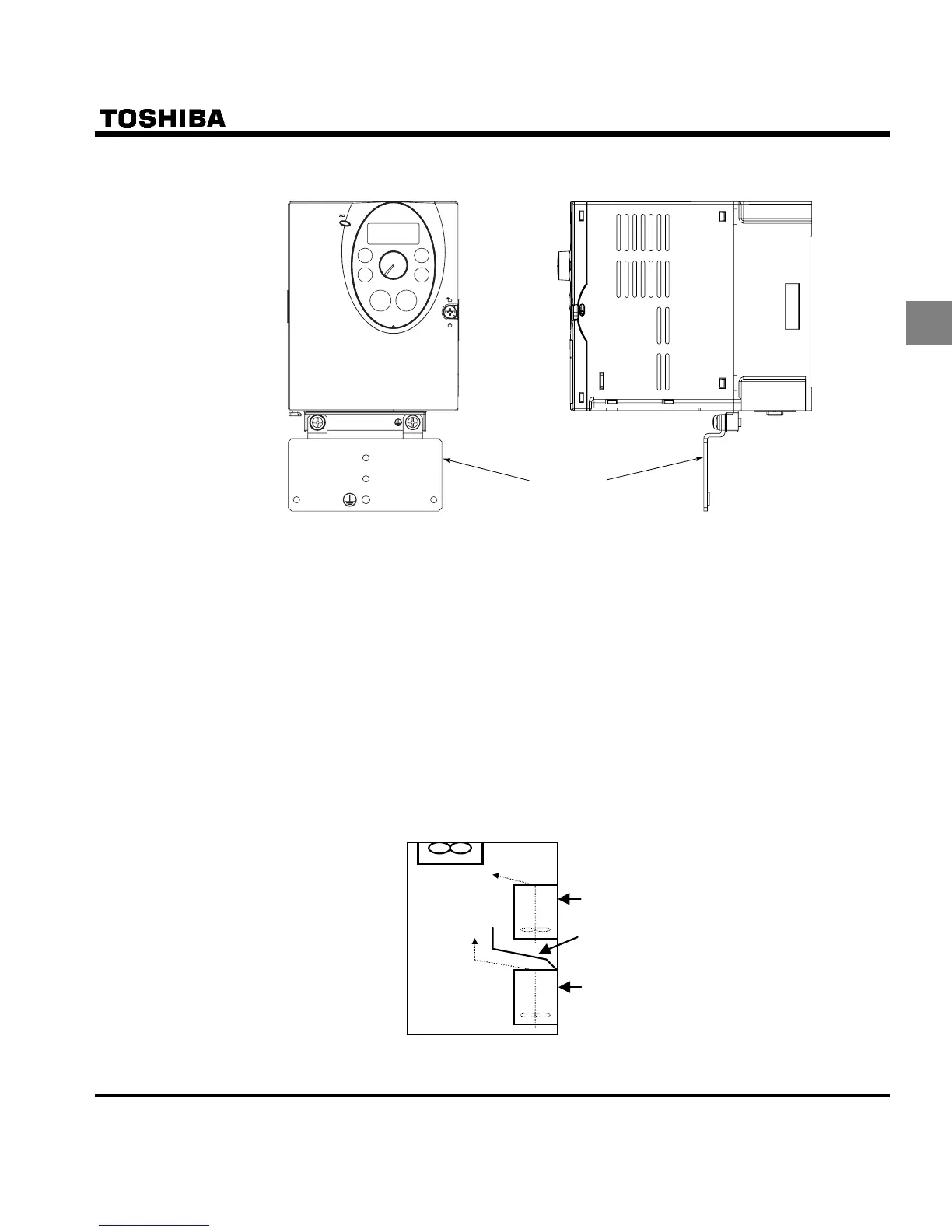

• Install EMC plate and shielded wires fit with the EMC plate.
EMC plate
Q Installing more than one unit in a cabinet
If you are installing two or more inverters in one cabinet, pay attention to the following.
• Inverters may be installed side by side with each other with no space left between them.
• When installing inverters side by side, detach the caution label on the top surface of each inverter and
use them where the ambient temperature will not rise above 40°C.
When using inverters where the ambient temperature will rise above 40°C, leave a space of 5 cm or
more between them and remove the caution label from the top of each inverter, or operate each inverter
at a current lower than the rated one. For more information, refer to “Load Reduction and Thermal Envi-
ronment Instruction Manual.”
• Ensure a space of at least 20 centimeters on the top and bottom of the inverters.
• Install an air deflecting plate so that the heat rising up from the inverter on the bottom does not affect the
inverter on the top.
Ventilation fan
Inverter
Air deflecting plate
Inverter

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
