Toshiba TOSVERT VF-S11 User Manual

E6581158
B-14
2

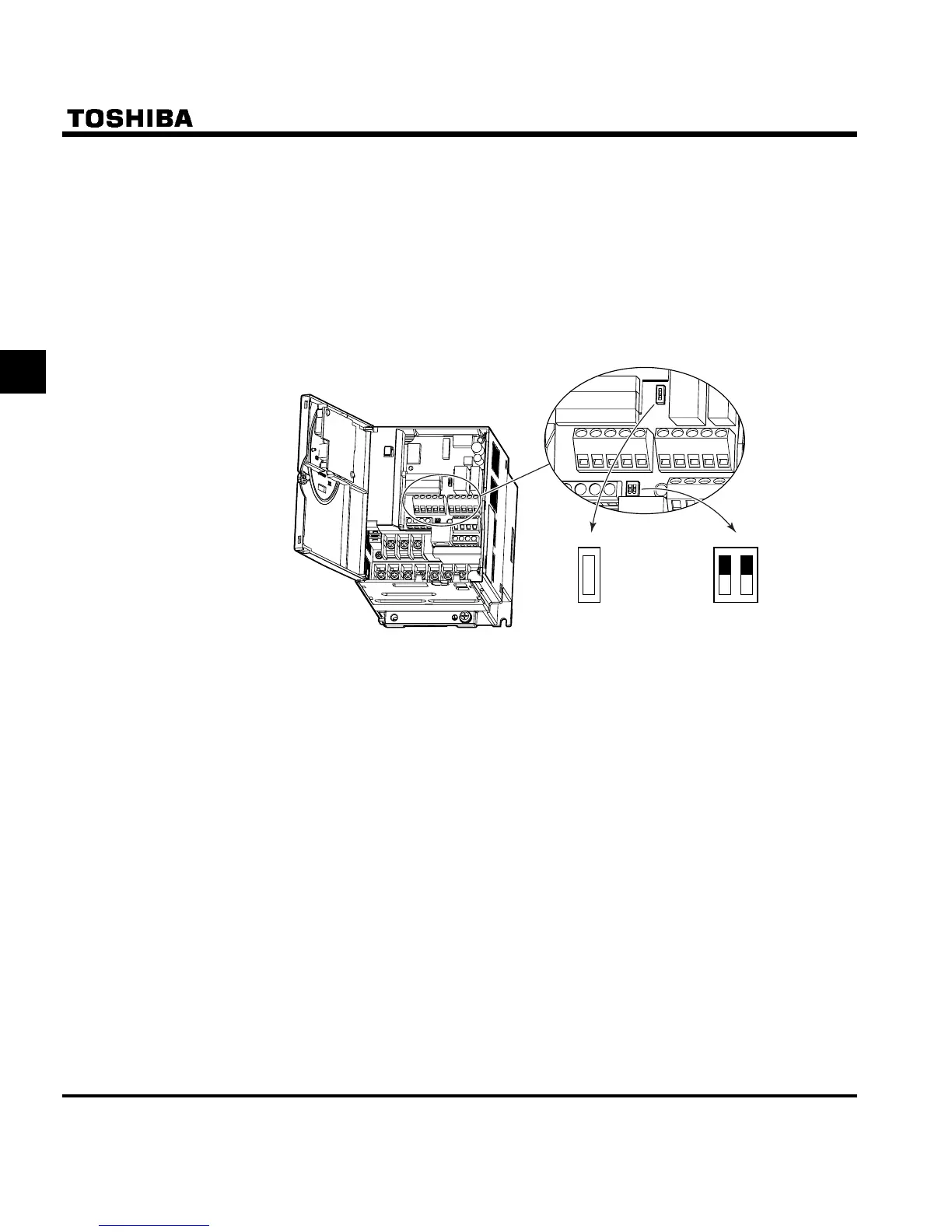

Q Logic switching/Voltage-current output switching (slide switch)
(1) Logic switching
Use SW1 to switch between logics.
Switch between logics before wiring to the inverter and without supplying power. If switching between
sink, source and PLC is done when power is turned on after switching or when the inverter is supplied
with power, the inverter might become damaged. Confirm it before supplying power.
(2) Voltage-current output switching
Use the FM switch to switch between voltage output and current output.
Switch the FM terminal's voltage-current output before wiring to inverter or without supplying power.
PLC
SW1
SOURCE
FM VIA
SINK
Vside
Iside
Vside
Iside
Factory default settings of slide switches
SW1 : SINK side (WN, AN type)
SOURCE side (WP type)
FM : V side
VIA : V side
* After you have selected a logic between sink and source, take measures to prevent the logic from
being changed.

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
