Toshiba TOSVERT VF-S11 User Manual

E6581158
C-10
3

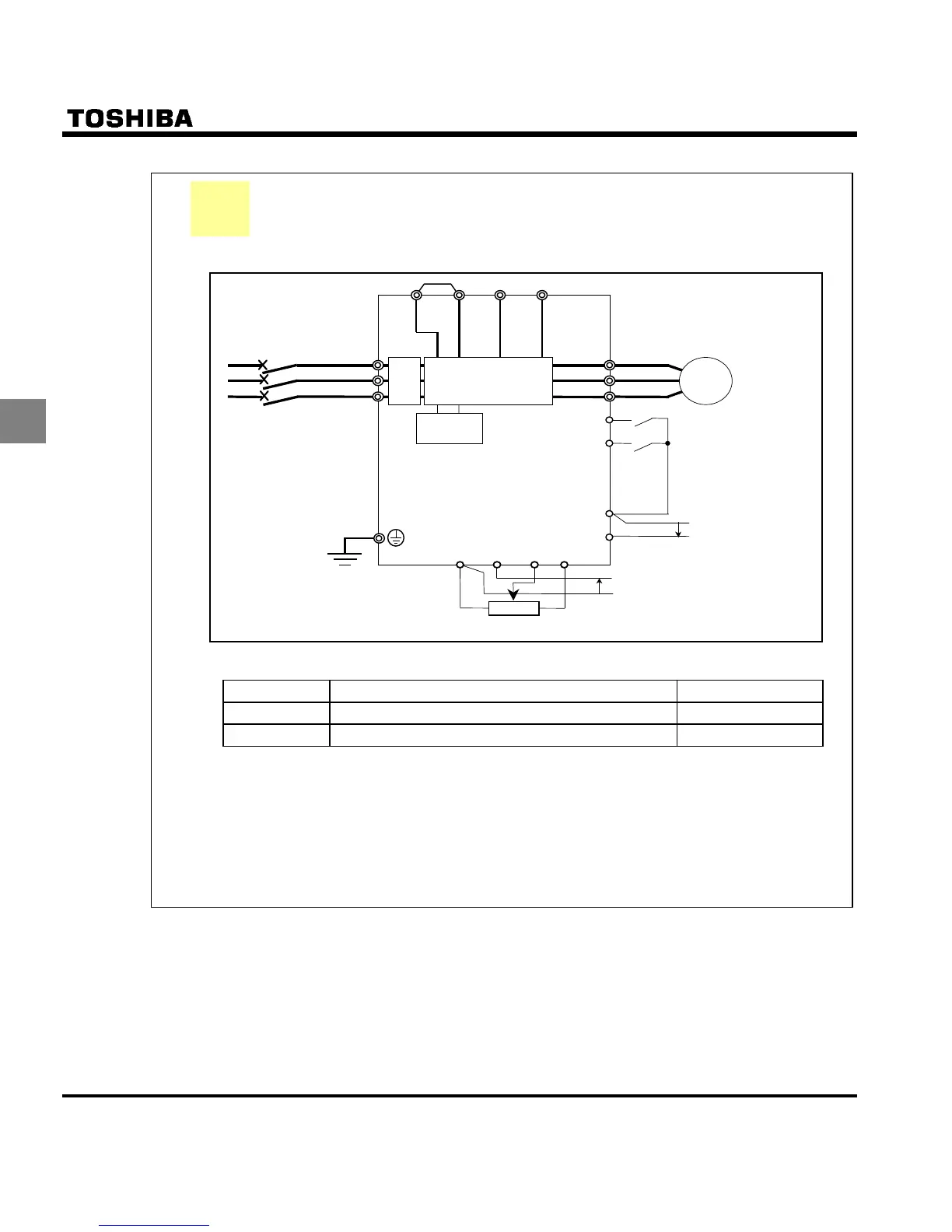

Operation frequency setting, running and stopping using external
signals.
(1) Wiring
(2) Parameter setting
Title Function Programmed value
EOQF
Command mode selection 0
HOQF
Frequency setting mode selection 1or2
(3) Operation
Run/stop: ON/OFF input to F-CC, R-CC. (Set SW1 to Sink logic)
Frequency setting: VIA and VIB: 0-10Vdc (External potentiometer)
VIA: Input 4-20mAdc.
* Use the VIA slide switch to switch between voltage and current to the VIA terminal.
Voltage input: V side
Current input: I side
Braking
circuit
Motor
IM
F
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Run forward signal
R
PO PC/-
PB
PA/+
Main circuit
Run backward signal
MCCB
CC
VIA
Common
Current signal: 4∼20mA
CC
VIB
VIA PP
Voltage signal: 0∼10V
External potentiometer
(Otherwise, input voltage signal (0~10V) between the terminals VIA-CC.)
Noise
filter
Ex.4

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
