Toshiba TOSVERT VF-S11 User Manual

E6581158
E-11
5
Q Resolution
All FM terminals have a maximum of 1/256.

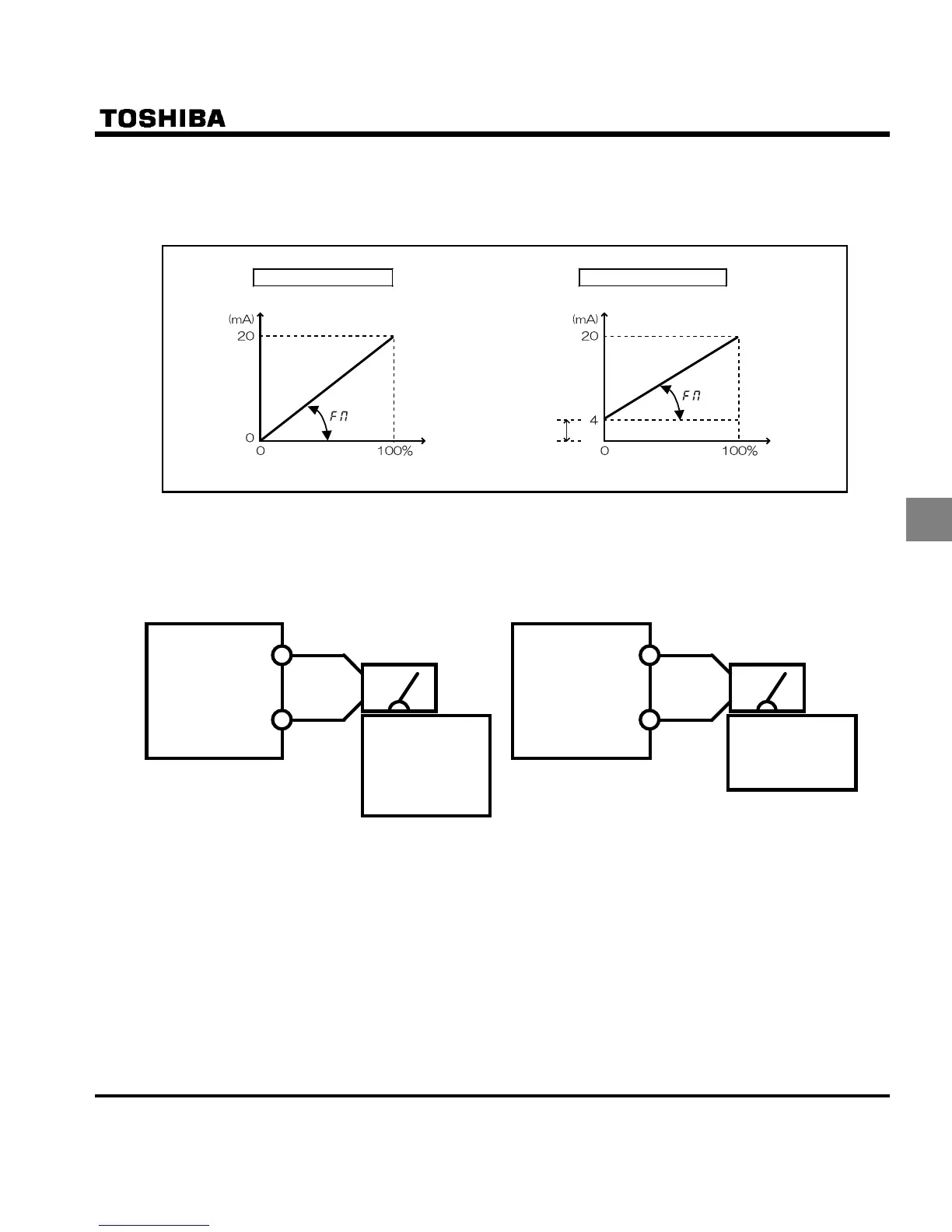

Q Example of 4-20mA programmed output (for details, see 6.20.2)
H=1, H=0 H=1, H=20
H
Note) Note that, if HOUN is set to  (torque), data will be updated at intervals of more than 40 ms.
Q Adjustment scale with meter adjustment HO parameter
Connect meters as shown below.
FM
CC
Meter: Frequency meter
(default setting)
VF-S11
FM
CC
VF-S11
The reading of the
frequency meter
will fluctuate during
scale adjustment.
Meter: ammeter
HOUN
The reading of the
ammeter will
fluctuate during
scale adjustment.
+
-
+
-
* Optional frequency meter: QS-60T
* Make the maximum ammeter scale at least 150 percent
of the inverter's rated output current.
<Frequency meter> <Ammeter>

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
