Trackmaster TMX428 - Chapter 13 Parts List with Part Numbers; Motor Mount Assembly

TRACKMASTER Ch. 13 Parts List with Part Numbers
317-160-406 Rev 4 TMX428 TMX428CP & TMX58 Service Manual 129
May 2021
Parts List with Part Numbers

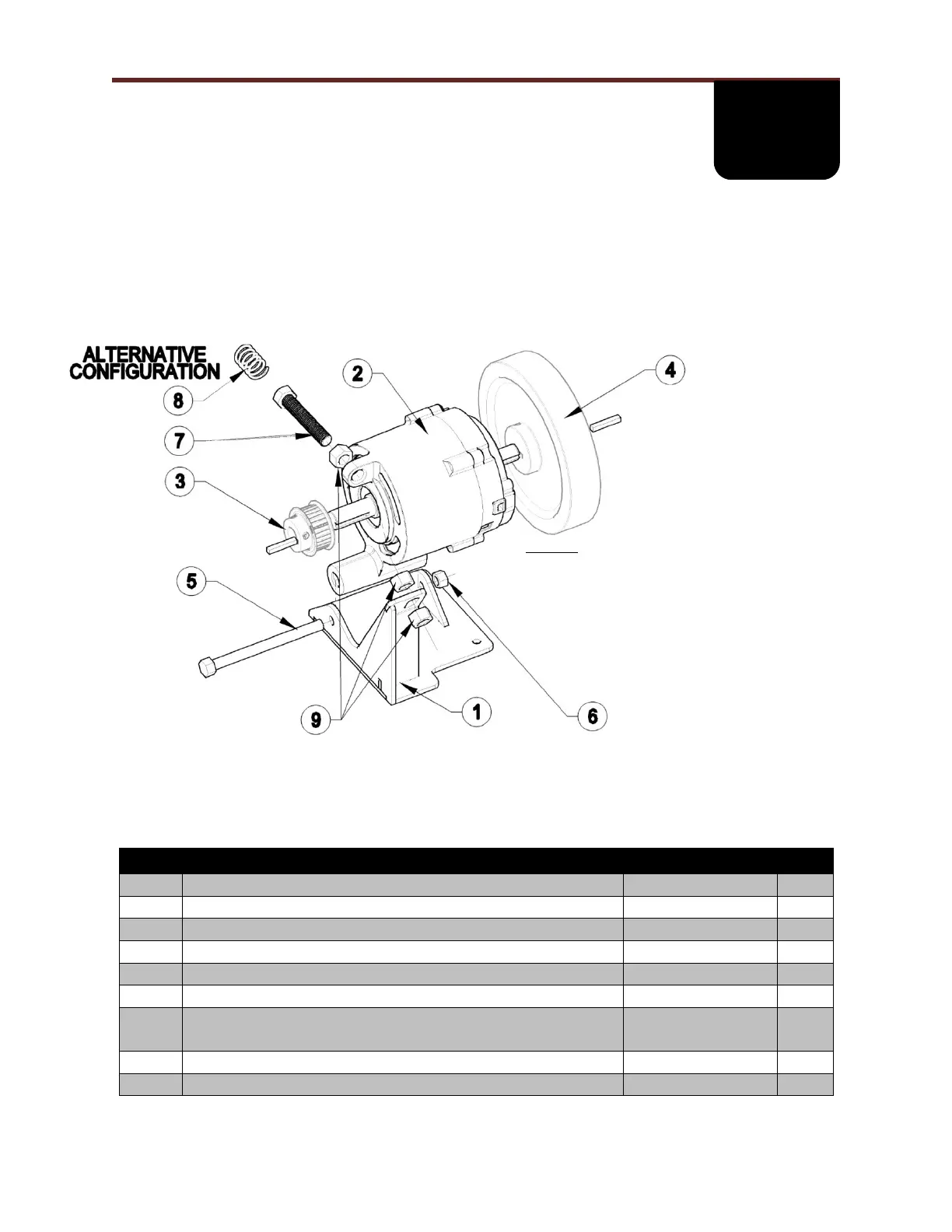

Motor Mount Assembly
Item
Description
Part Number
Qty
1
DC Motor Base
317-701-001
1
2
Motor DC Servo PMCFA-00101-03
317-160-197
1
3
Sprocket Drive 530-5MGT-15
317-160-201
1
4
Flywheel DC W/Magnet .50 dia
317-160-200
1
5
HHCS 7/16-14 x 5” Lg
001-2332
1
6
NLN 7/16-14
001-2333
1
7
HHCS ½-13 3” Lg All Thread
HHCS ½-13 5” Lg All Thread (Alternative)
001-2348
001-2331
1
8
Spring Motor Tension (Alternative)
317-160-218
1
9
HN ½-13 Gr5
001-1390
3
13
NOTES:
1. WHEN INSTALLING THE FLYWHEEL & DRIVE
SPROCKET, TIGHTEN SET SCREWS ON KEY
WAY FIRST, AND THEN TIGHTEN THE
SECOND SET SCREW TO MOTOR SHAFT.
2. WHEN TIGHTENING ITEMS 5 & 6, CONTINUE
TIGHTENING UNTIL MOTOR CANNOT MOVE
SIDE TO SIDE.
