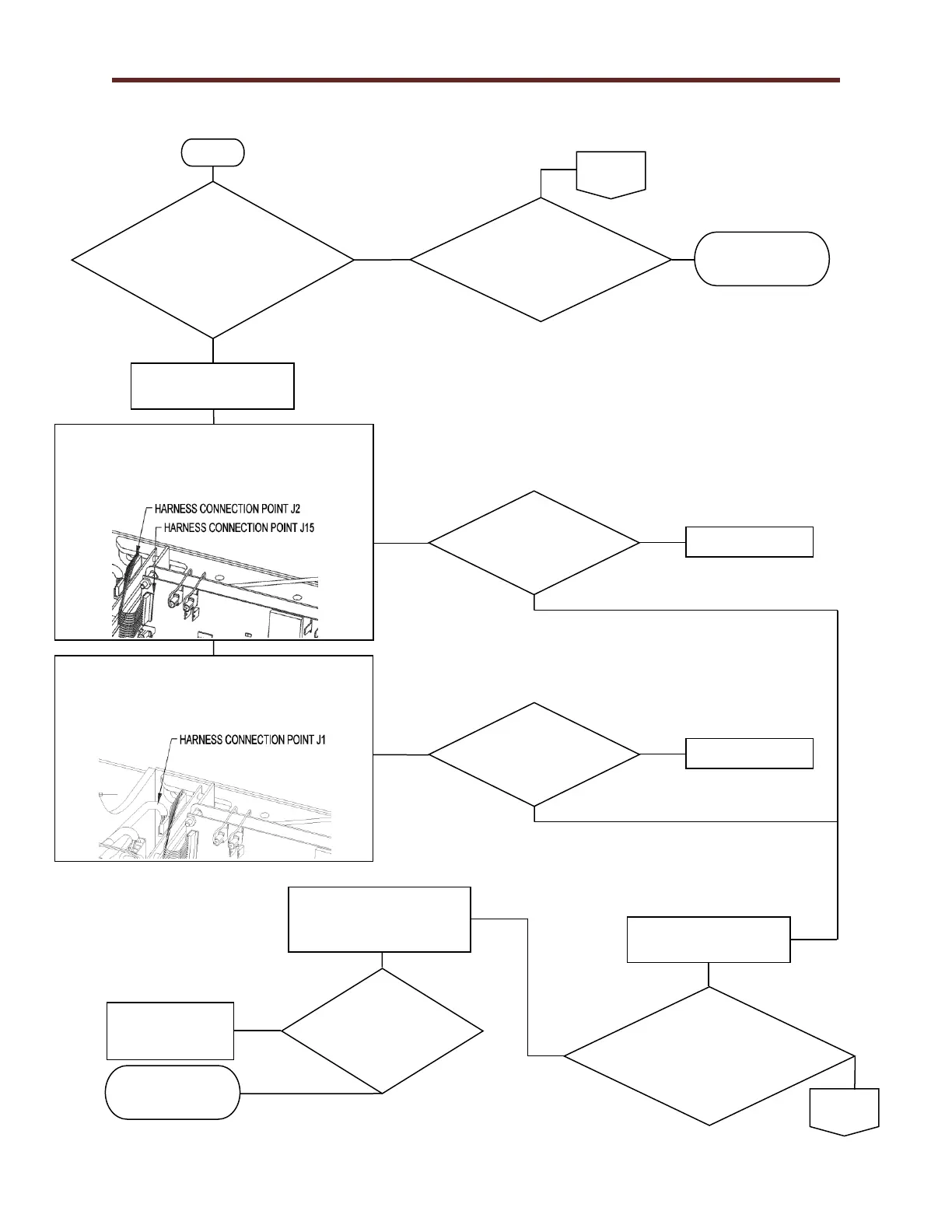

Smart Power Supply Error Code 8 Flow Chart 1Q “Motor Control Reports Fault”
1Q
Is the Red LED D13
flashing 8 times with
4 second pause on the
Smart Power Supply
FG0495?
No
Yes
Turn the treadmill power
switch OFF (O).
Is the Red LED D13
on the Smart Power
Supply FG0495 on
continuously?
Yes
No
Is the Red LED D13
flashing on the
Smart Power Supply
FG0495?
Yes
Treadmill should
be operational.
No
Send a Start Belt Command
or Press Start if equipped
with controller.
Did the running
belt start?
Return Treadmill
to service.
Replace Drive
PC2303-012-N
316-160-196
Yes
No
Verify the harness between Drive PC2303-012-N
and Smart Power Supply FG0495 is properly
connected.
Turn the treadmill power
switch ON (-).
Was the harness
properly
connected?
No
Connect harness.
Verify the harness between Motor
PMC5FA-00101-03 and Drive PC2303-012-N
is properly connected.
Yes
Was the harness
properly
connected?
No
Connect harness.
Yes
1I
1I
