Trackmaster TMX428 - Th Edition Circuit Board Assembly; Th Edition Final Assembly Circuit Board Connection

TRACKMASTER Ch. 13 Parts List with Part Numbers
317-160-406 Rev 4 TMX428 TMX428CP & TMX58 Service Manual 131
May 2021
4
th

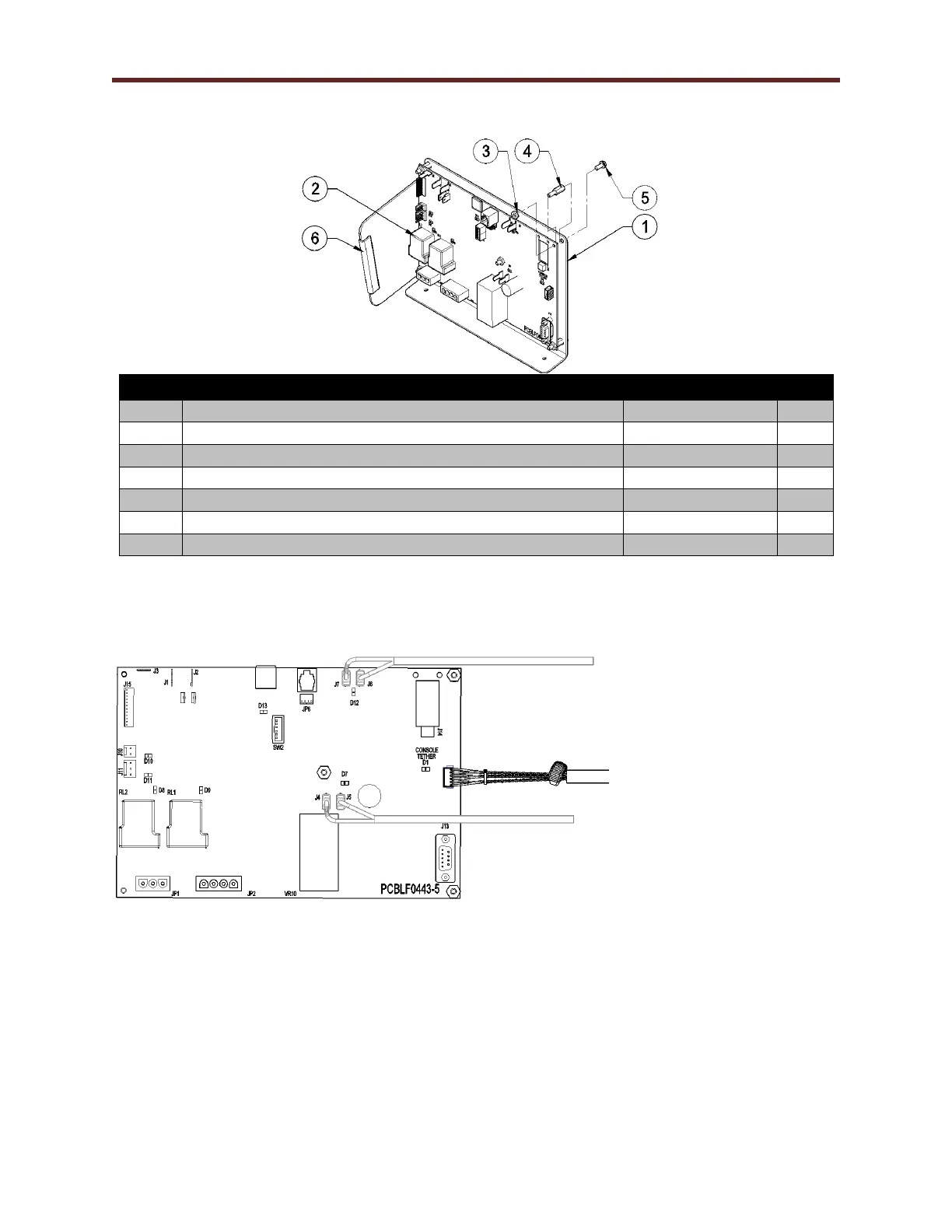

Edition Circuit Board Assembly
Item
Description
Part Number
Qty
1
Bracket Circuit Board
317-709-001
1
2
Board FG0495-3 Universal Power Supply
317-160-199
1
3
HN #8-32 Nylon
001-1763
5
4
Mount Inverter Isolation
317-160-040
5
5
HHWHTS #8-32 x .375
001-1744
5
6
Trim Black 3” Lg
001-102-044
1
9
Trim Black 3” Lg
001-102-044
1
4
th
Edition Final Assembly Circuit Board Connection
CONTROLLER OPTION
CONNECT CONSOLE
COMMUNICATION CABLE TO J12
CONNECT EMERGENCY STOP
CABLE TO J4 & J5
CONNECT PULL TETHER
CABLE TO J7 & J6
