Trackmaster TMX428 - Functional Assemblies

Parts List With Part Numbers Ch. 13 TRACKMASTER
130 TMX428 TMX428CP & TMX58 Service Manual 317-160-406 Rev 4
May 2021
3
rd

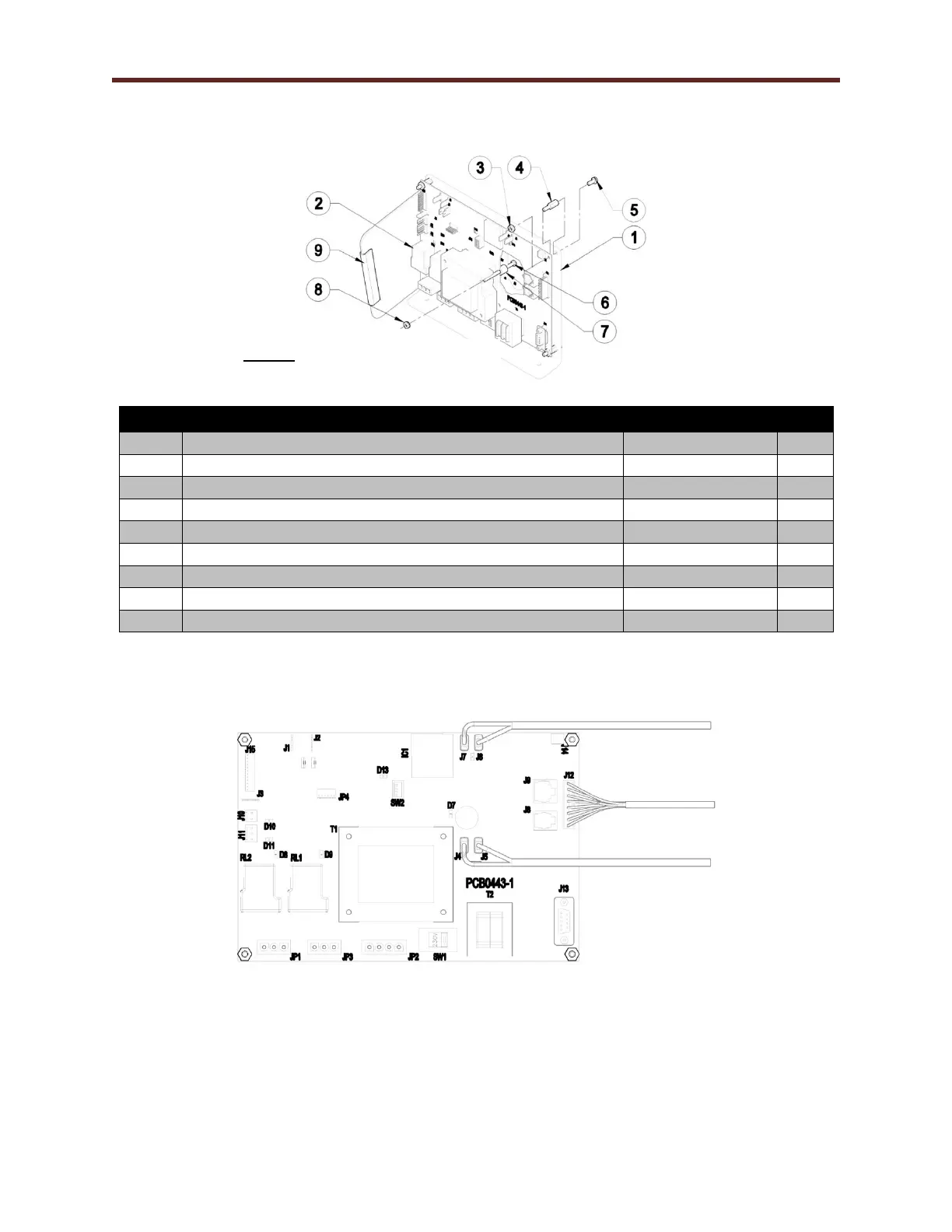

Edition Circuit Board Assembly
Item
Description
Part Number
Qty
1
Bracket Circuit Board
317-709-001
1
2
Board FG0495-0 Universal Power Supply
317-160-199
1
3
HN #8-32 Nylon
001-1763
4
4
Mount Inverter Isolation
317-160-040
4
5
HHWHTS #8-32 x .375
001-1744
4
6
RHMS #6-32 x 2.5” Lg
001-1890
1
7
Standoff Round .50 Lg .166 ID
001-1854
1
8
K-Lock Nut #6-32
001-1858
1
9
Trim Black 3” Lg
001-102-044
1
3
rd
Edition Final Assembly Circuit Board Connection
NOTES:
APPLY BLUE LOCKTITE
THREADLOCKER TO ITEM 8
CONTROLLER OPTION
CONNECT CONSOLE
COMMUNICATION CABLE TO J12
CONNECT EMERGENCY STOP
CABLE TO J4 & J5
CONNECT PULL TETHER
CABLE TO J7 & J6
