Trackmaster TMX428 - Final Assembly

TRACKMASTER Ch. 13 Parts List with Part Numbers
317-160-406 Rev 4 TMX428 TMX428CP & TMX58 Service Manual 143
May 2021

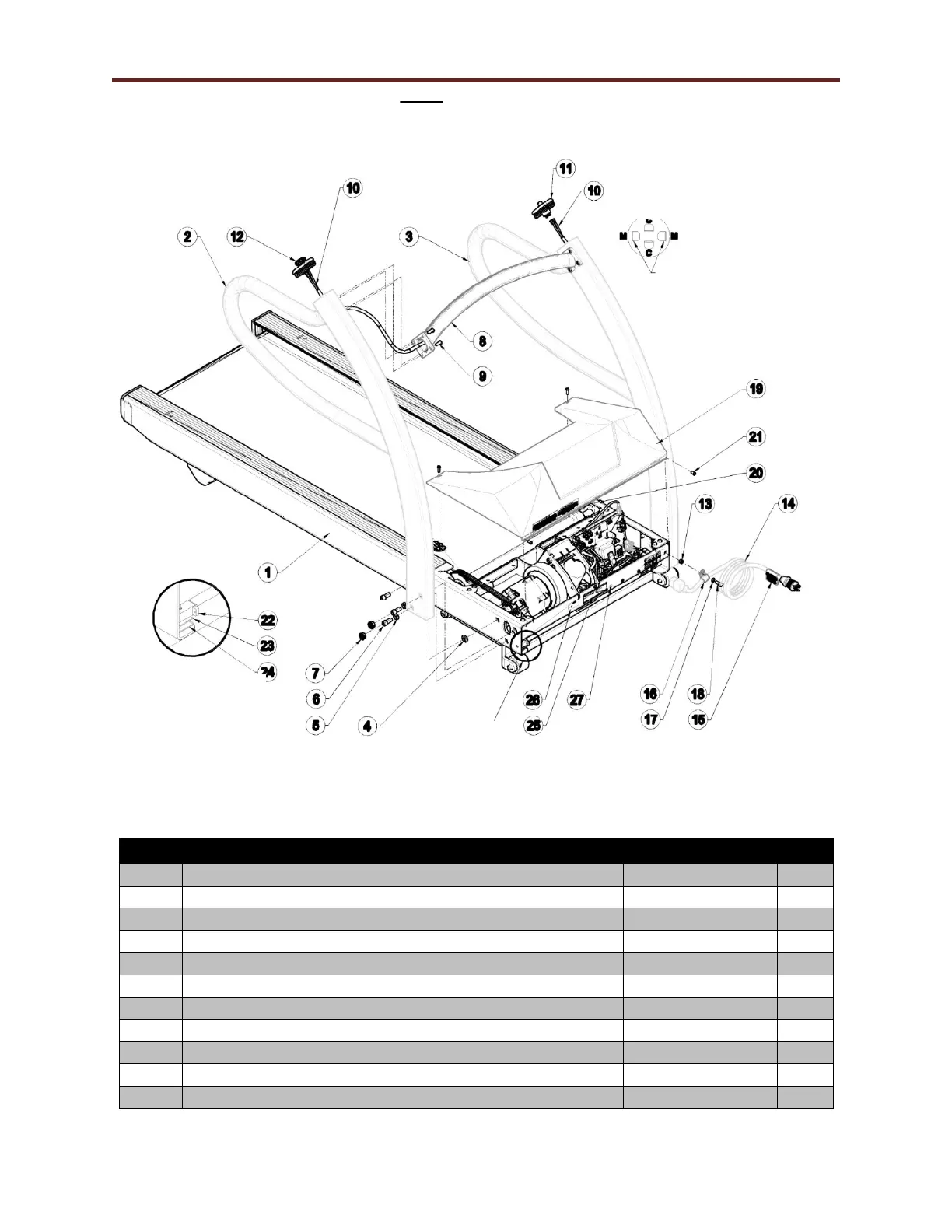

Final Assembly
Final Assembly
Item
Description
Part Number
Qty
1
Running Deck Assembly TMX428
317-Various
1
2
Handrail RH TMX428
317-712-001
1
3
Handrail LH TMX428
317-713-001
1
4
Washer Nylon
317-160-086
2
5
Lock Washer 3/8”
001-1452
4
6
Screw HSHCS 3/8”-16 x 1” Lg PLTD
001-1859
6
7
Dome Plug
317-180-008
4
8
Handrail Center TMX428
317-711-001
1
9
Screw HSBHCS ¼”-20 x ¾” Lg
001-2351
8
10
Harness ESB & Pull Tether
317-160-263
2
11
Pull Tether Assembly
317-720-001
1
DETAIL 1
SEE DETAIL 1
OUTSIDE CONTACT
CONNECT CABLE TO PULL TETHER
CONNECT CONTACT I&I ROUTE
THRU LEFT HANDRAIL
CONNECT CABLE TO ESB
ROUTE WIRES THRU
CENTER & LEFT HAND
RAIL
NOTE:
The pull tether clip needs to be seated for the
treadmill to operate as designed.
