TRACKMASTER Ch. 5 Set-up Instructions
317-160-406 Rev 4 TMX428 TMX428CP & TMX58 Service Manual 33
May 2021
Initial Setup Instruciton
Tools required for assembly
5/16 Allen wrench (supplied)

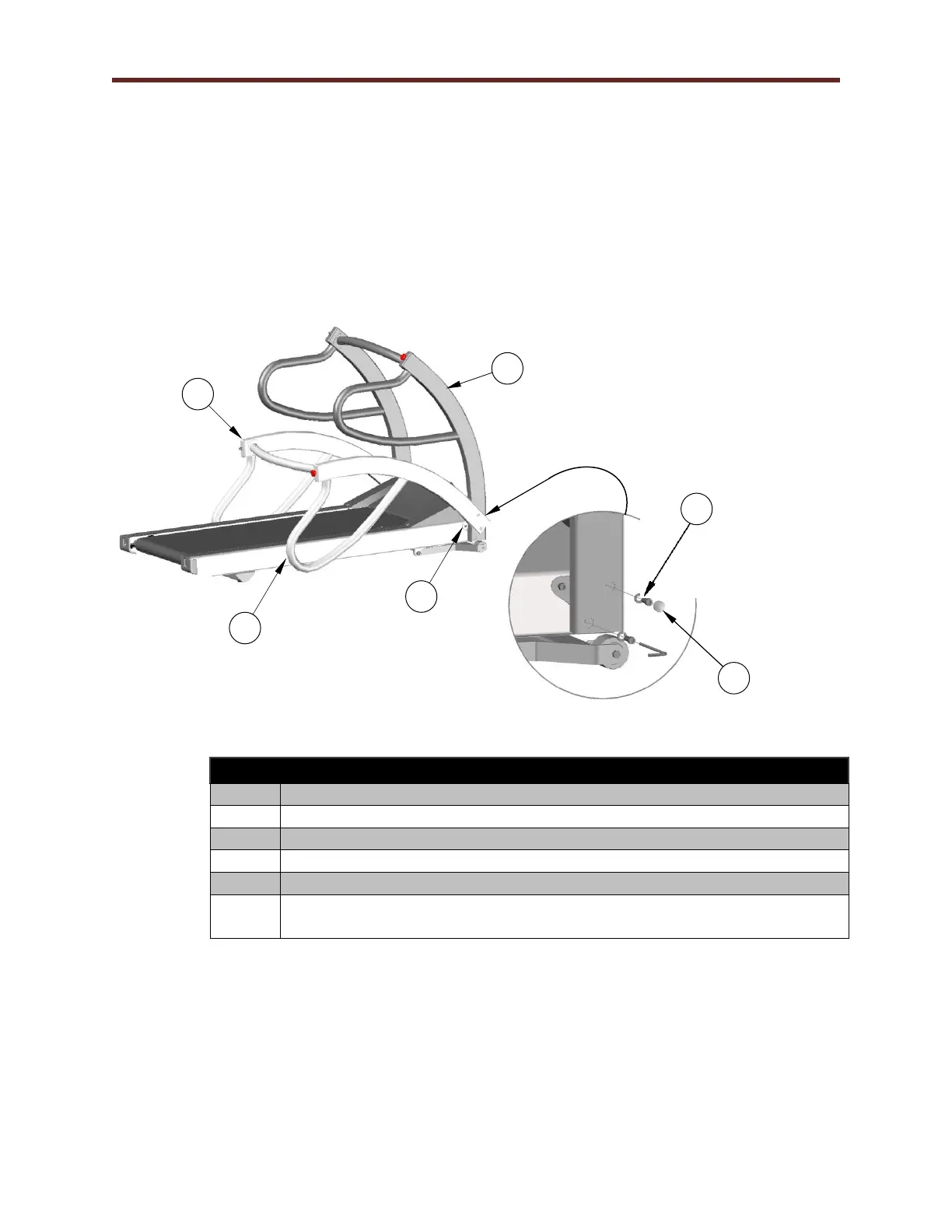

1. With the help of a 2nd person, swing the handrail assembly into the operating position
and insert (2) 3/8-16 bolts and 3/8 lock washer each side and tighten securely.
2. Install (2) plastic caps each side for a finished look. Figure 5-1
Item
Description
1
Operating Position
2
Shipping Position
3
Pivot Point
4
Insert (2) washers and bolts each side
5
Insert (2) caps each side
6
When folding handrails, apply cardboard between frame and handrail to
prevent handrail damage.
3
6
2
1
5
4
Figure 5-1
