Set-up Instructions Ch. 5 TRACKMASTER
32 TMX428 TMX428CP & TMX58 Service Manual 317-160-406 Rev 4
May 2021

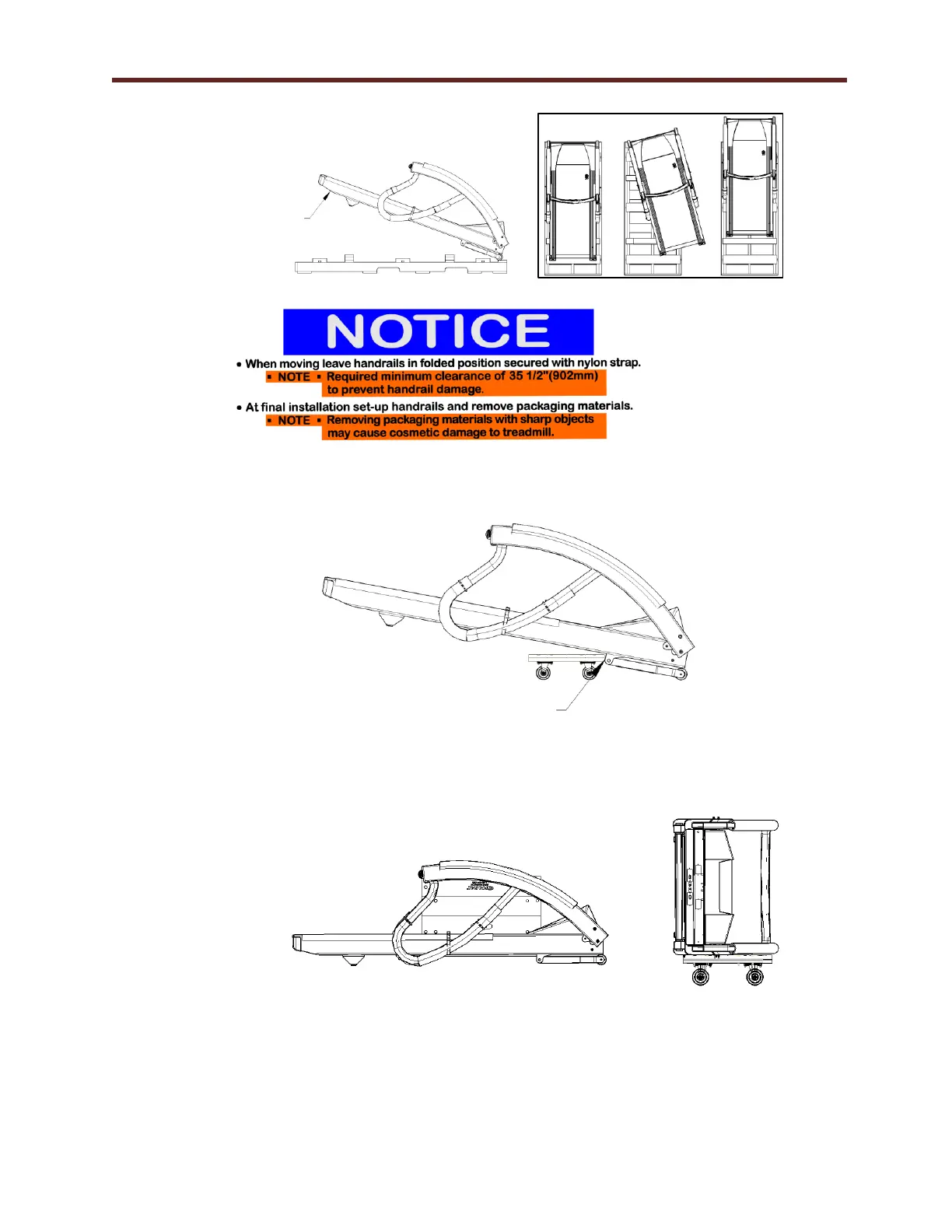

8. When moving or relocating the treadmill use a furniture dolly or floor dolly.
9. Position the dolly at the elevation pivot point to provide treadmill balance.
Note: When moving to final destination you may experience a narrow passage or
doorway. The treadmill can be tipped on the side with handrails in the folded position.
This will allow clearance to a minimum of 28” (711mm) to safely pass thru opening.
10. Carefully remove the stretch wrap, nylon strap, and protective packaging material.
11. Next step see Initial Set-Up Instruction.
