Trackmaster TMX428 - Elevation Assembly; Pull Tether Assembly

Parts List With Part Numbers Ch. 13 TRACKMASTER
132 TMX428 TMX428CP & TMX58 Service Manual 317-160-406 Rev 4
May 2021

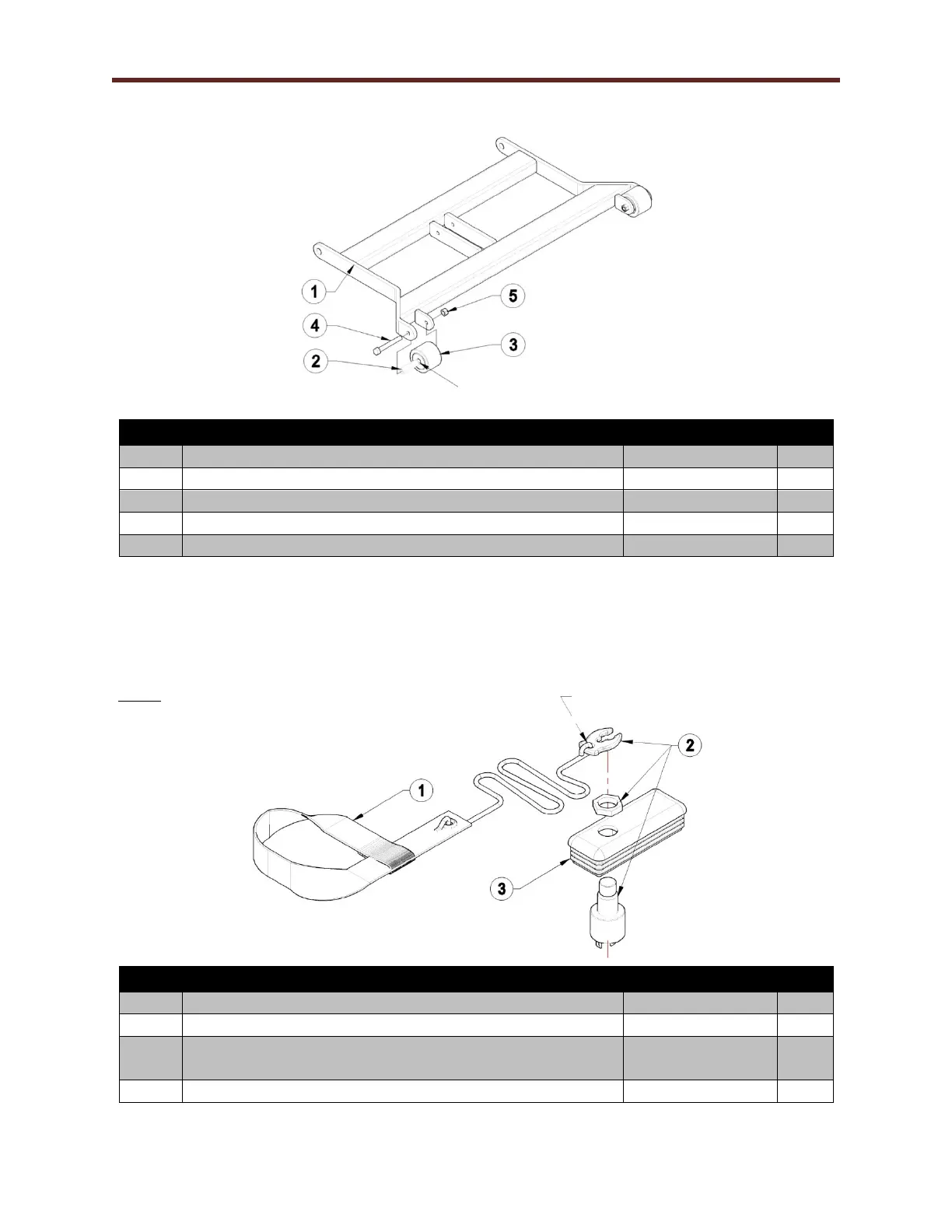

Elevation Assembly
Item
Description
Part Number
Qty
1
Elevation Weldment TMX428
317-702-002
1
2
Spanner Wheel
317-160-054
2
3
Wheel Landing Gear
317-160-005
2
4
HHCS 3/8-16 x 3.25 Lg Gr5
001-1519
2
5
NLN 3/8-16
001-1430
2
Pull Tether Assembly
Item
Description
Part Number
Qty
1
Tether Pull w/Wrist strap (Not Sold Individually)
317-160-229
1
2
E-Stop Kill Switch LS500 (Not Sold Individually)
317-160-226
1
3
Cap 1.50 x 4.00 LPDE BLK Modified
(Not Sold Individually)
317-160-230
1
1-3
Pull Tether Assembly (Sold as assembled kit)
317-720-001
1
APPLY MOLY BASED GREASE 2X
NOTE:
The pull tether clip needs to be seated for
the treadmill to operate as designed.
ATTACHED WRIST STRAP TO CLIP
WITH A DOUBLE KNOT.
