Trackmaster TMX428 - Rd Edition TMX428 CP Controller Assembly

TRACKMASTER Ch. 13 Parts List with Part Numbers
317-160-406 Rev 4 TMX428 TMX428CP & TMX58 Service Manual 145
May 2021
3
rd

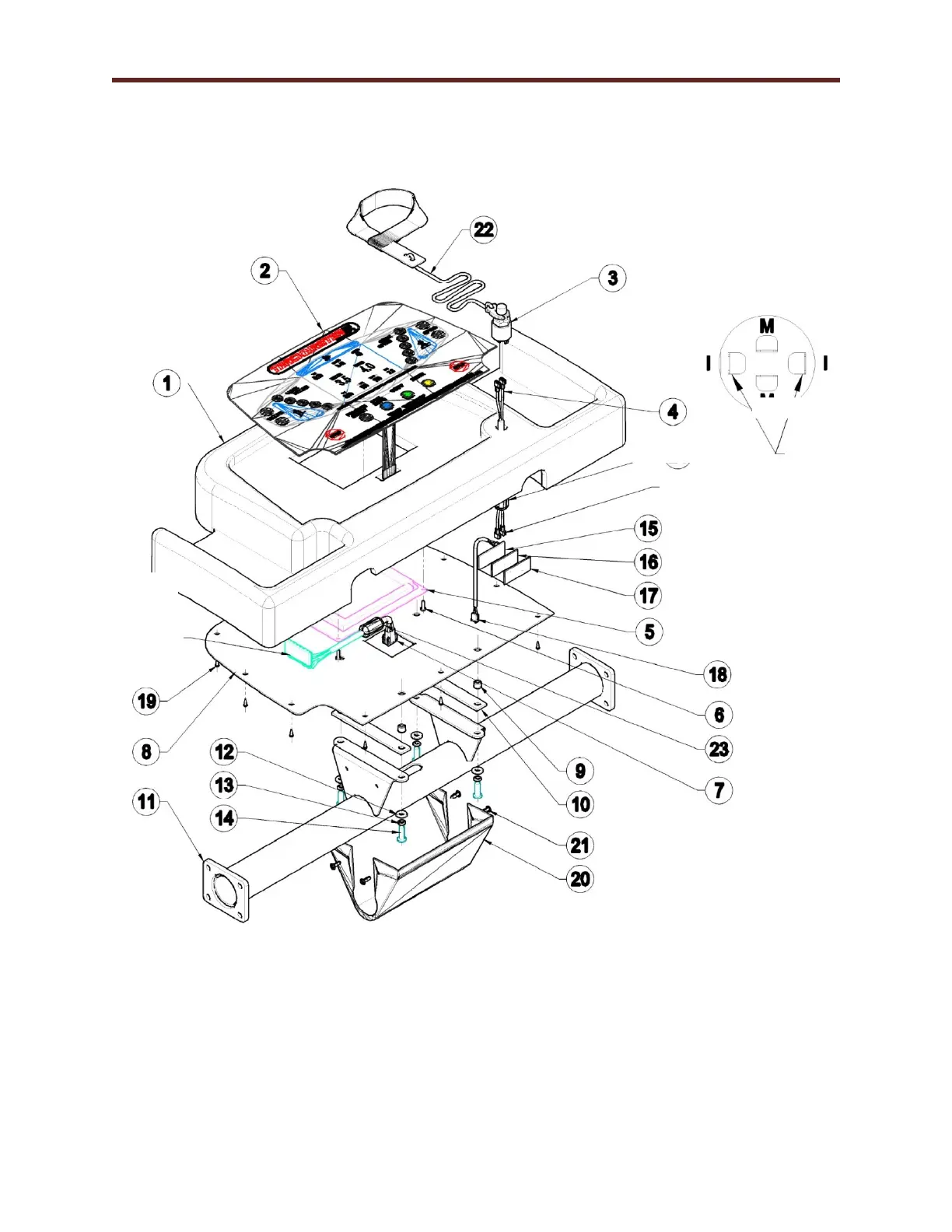

Edition TMX428CP Controller Assembly
OUTSIDE CONTACT
CONNECT TO J10
ON LCD SCREEN
CONNECT CABLE TO PULL TETHER
CONNECT CONTACT I&I ROUTE
THRU LEFT HANDRAIL
CONNECT TO
ESB HANRESS
CONNECT TO J8
ON LCD SCREEN
