Trackmaster TMX428 - Deck Assembly

TRACKMASTER Ch. 13 Parts List with Part Numbers
317-160-406 Rev 4 TMX428 TMX428CP & TMX58 Service Manual 141
May 2021

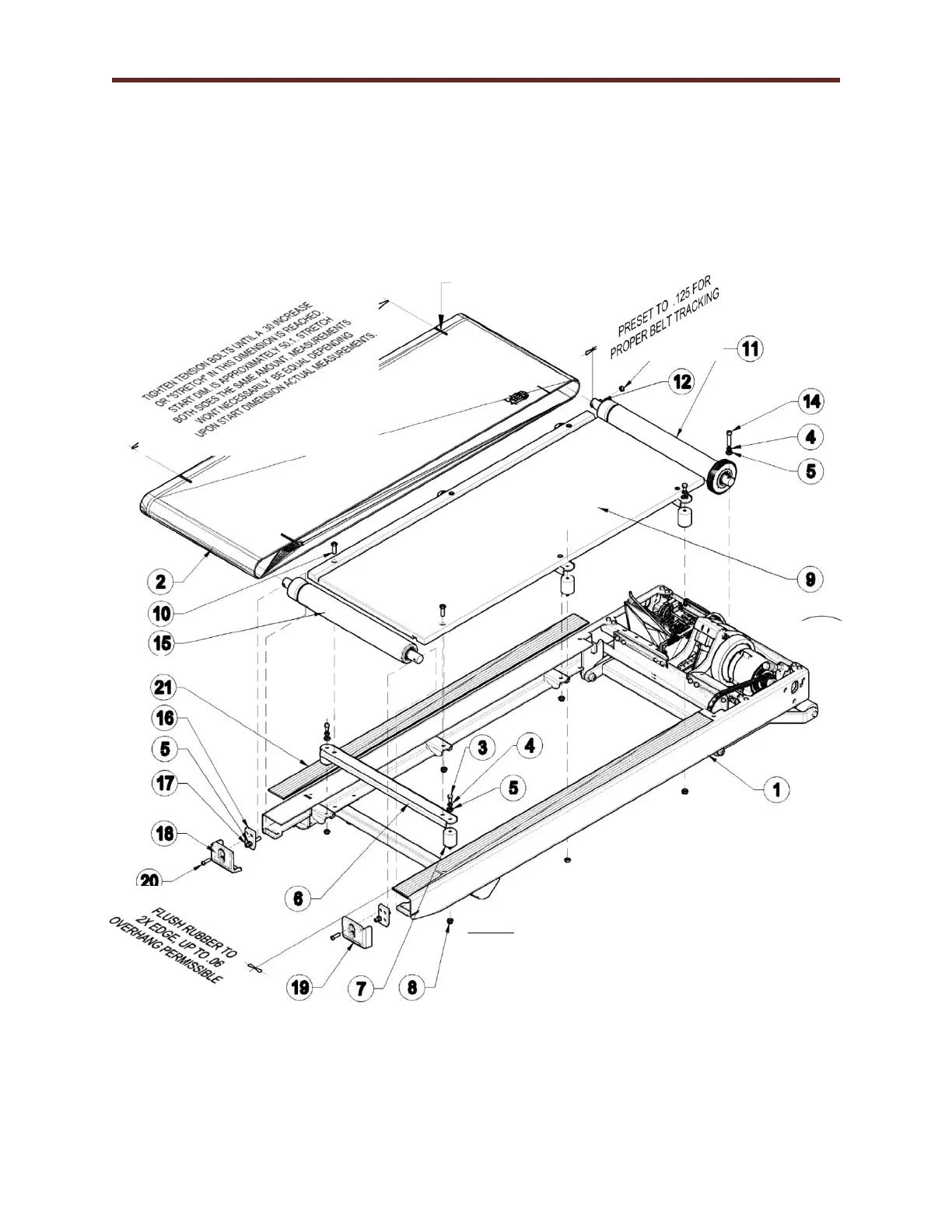

Deck Assembly
STRETCH ADJUSTMENT MARKS 4X
SEE NOTE 2
INSTALL CAMBER
UP
SEE NOTE 3
SEE NOTE 1
NOTES:
1. ADJUSTMENT SCREWS MUST BE MATCH
TIGHTENED. PROPER TENSION IS ACHIEVED
WHEN BELT CAN’T SLIP ON PULLEYS WHEN IN
OPERATION ACHIEVED
2. ADJUST DRIVE BELT TENSION PULLING ALL FREE
PLAY OUT OF BELT. DO NOT OVER TIGHTEN
CAUSING THE BELT TO STRETCH.
3. MOVE REAR PULLEY SIDE TO SIDE IN CHANNELS
TO OBTAIN FRONT TO REAR BELT ALIGNMENT
AND TRACKING.
