2- Specifications and Requirements Epic Edge OEM Integration Manual
100-14444 Rev B August 2018 Page 13
(Dimensions reflect use of 200 unit ticket bucket unless otherwise noted)
Dimensions

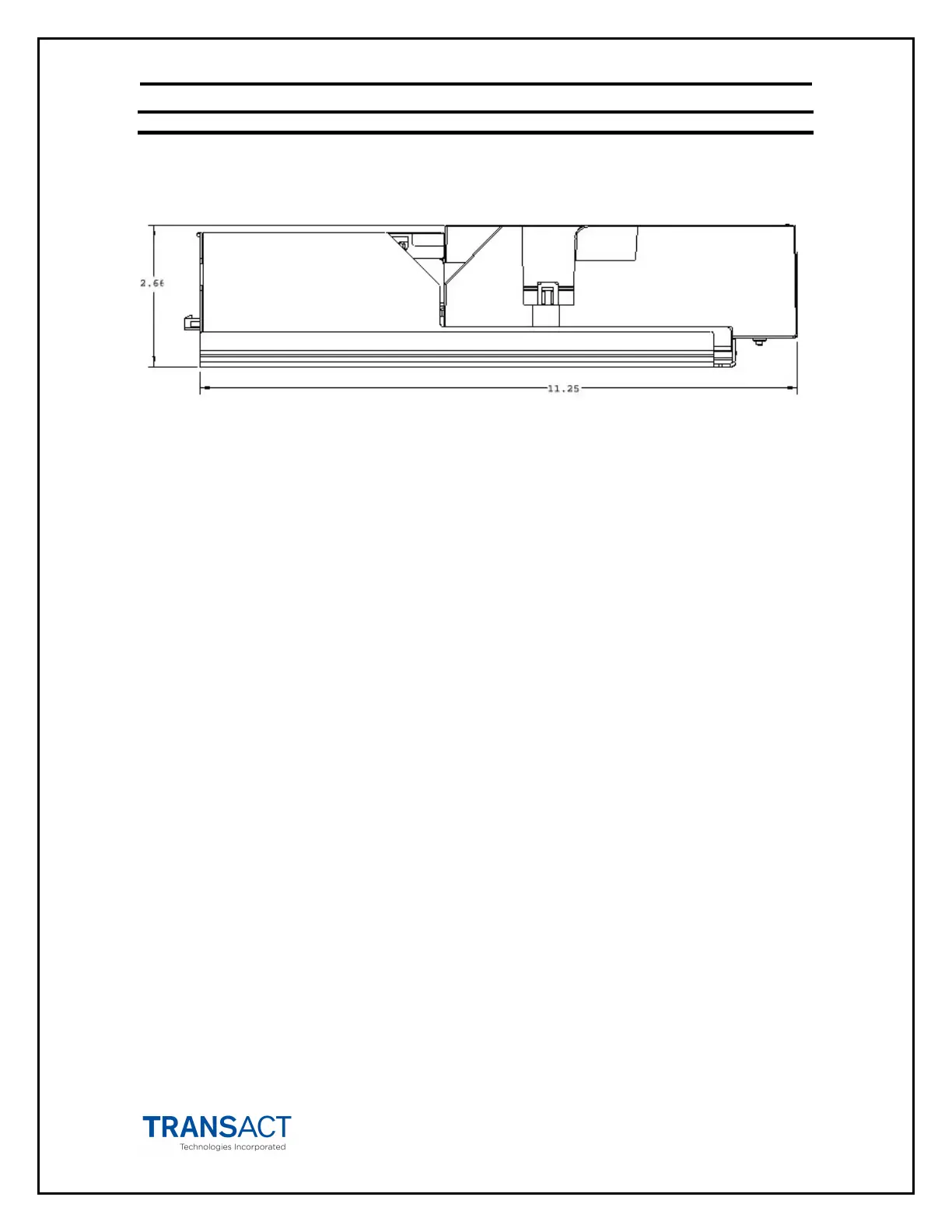

Figure 2. Epic Edge™ Printer: Dimensions
Size: H: 2.66" (67.6mm) W: 4.46" (113.3 mm) D: 11.25" (285.8 mm)
The Epic Edge™ is supports three interchangeable ticket capacities using extender walls. Please
be sure to specify the desired capacity when making your selections.
200 ticket setup: H: 2.66" (66.6mm) W: 4.46" (113.3 mm) D: 11.25" (285.8 mm)
600 ticket setup: H: 4.04" (102.6 mm) W: 4.46" (113.3 mm) D: 11.25" (285.8 mm)
800 ticket setup: H:
5.54" (140.7 mm)
W: 4.46" (113.3 mm) D: 11.25" (285.8 mm)
Weight: 3.8 lbs.
Interfaces
Type Bi-Directional, serial RS-232 using transmit, receive, and ground.
Protocol Ready/Busy or XON/XOFF, 9600 baud, 8 data bits, no parity,
1 start bit, 1 stop bit.
Type USB 2.0 High Speed
Protocols USB Printer, USB CDC, GSA GDS
Printer
Printer Type: Fixed linear 300 dpi thermal head.
Printer Environmental Conditions
Operating Temperature Range: 5º ~ 60ºC (41º ~ 140ºF)
Shipping/Storage Temperature Range: –10º ~ 50ºC (14º ~ 122ºF)
Operating Humidity Range: 10% ~ 90% Noncondensing only
Shipping/Storage Humidity Range: 5% ~ 90% Noncondensing only
