4-Epic Edge™ Printer Sensors Epic Edge OEM Integration Manual
Page 30 August 2018 100-14444 Rev B
Ticket Burst Sensor
A Ticket Burst sensor is used to detect that the ticket has been separated before it is
presented. Note that the Epic Edge™ printer incorporates a TicketBurst
TM
feature which
automatically burst tickets prior to presentation to the operator.
Top-of-Form/Ticket Out Sensor
A Top of Form/Ticket Out Sensor is used to control ticket loading and printing.
Ticket Taken Sensor
A Ticket Taken Sensor is used to determine when customers have actually taken the
printed ticket.
Chassis Open Sensor/Audible Alarm
The printer has a Chassis Open sensor to determine if the Inner Chassis is in the full-
racked position. If the Inner Chassis is not in the fully racked position, then the printer
status LED will blink, indicating the printer is not ready.
1. Chassis Open Sensor (Sliding Module).
2. Audible Alarm Buzzer (PIEZO - game controlled).
(Ticket Bucket not shown for clarity)

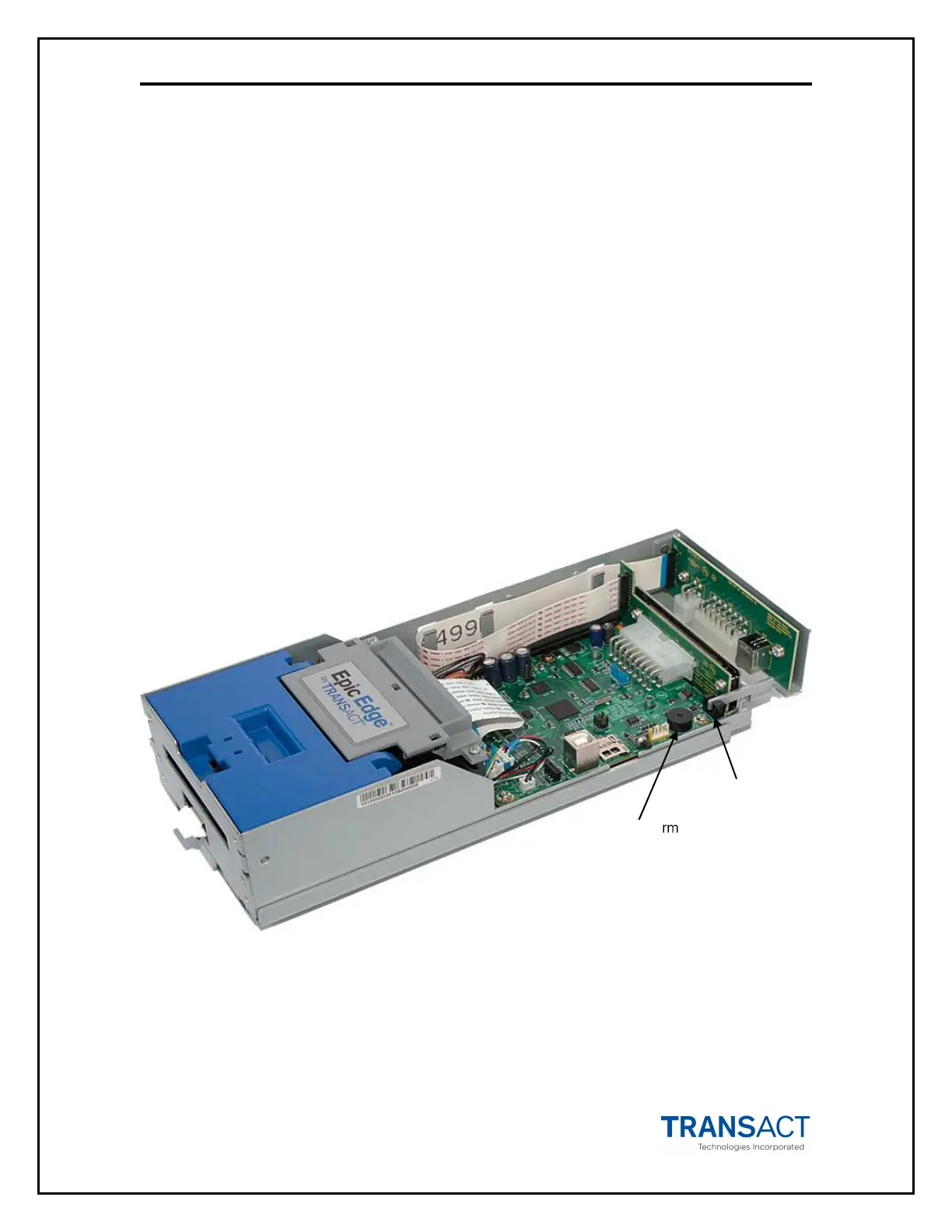

Figure 11. Open/Close Sensor/Audible Alarm
Audible Alarm
Buzzer
Drawer
Open/Close
Sensor
