5-Electrical Connections Epic Edge OEM Integration Manual
Page 38 August 2018 100-14444 Rev B
Power Connections
Printer power may be supplied over the 14 pin RS232 connector described above or
connected through a dedicated 4 position connector on the interface boards.

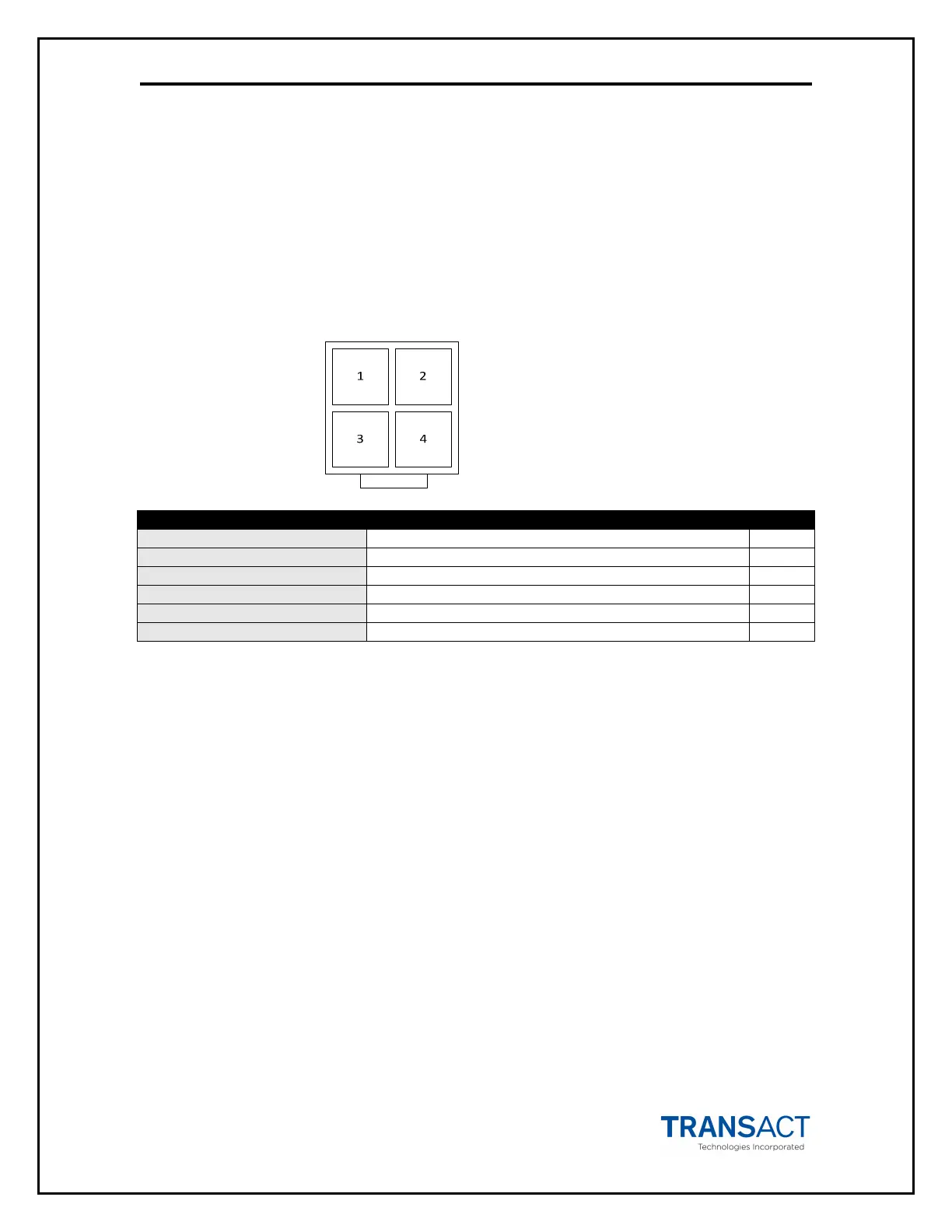

Connector - 4 position Molex Minifit Jr®., part number 39-30-1040, which mates
with Molex part number 39-01-2040 or equivalent.
Pin # FUNCTION
1 +24VDC -
2 GND -
3 GND -
4 FGND -
Table 3. Power Connections
