TransAct Epic Edge - Outer Chassis to Final Product Mounting

3-Mounting Requirements Epic Edge™ OEM Integration Manual
100-14444 Rev B August 2018 Page 23
Mounting Requirements
Outer Chassis to Final Product
Bottom: 4x M4x 0.7 press nuts.
4x Ф.180" thru holes.

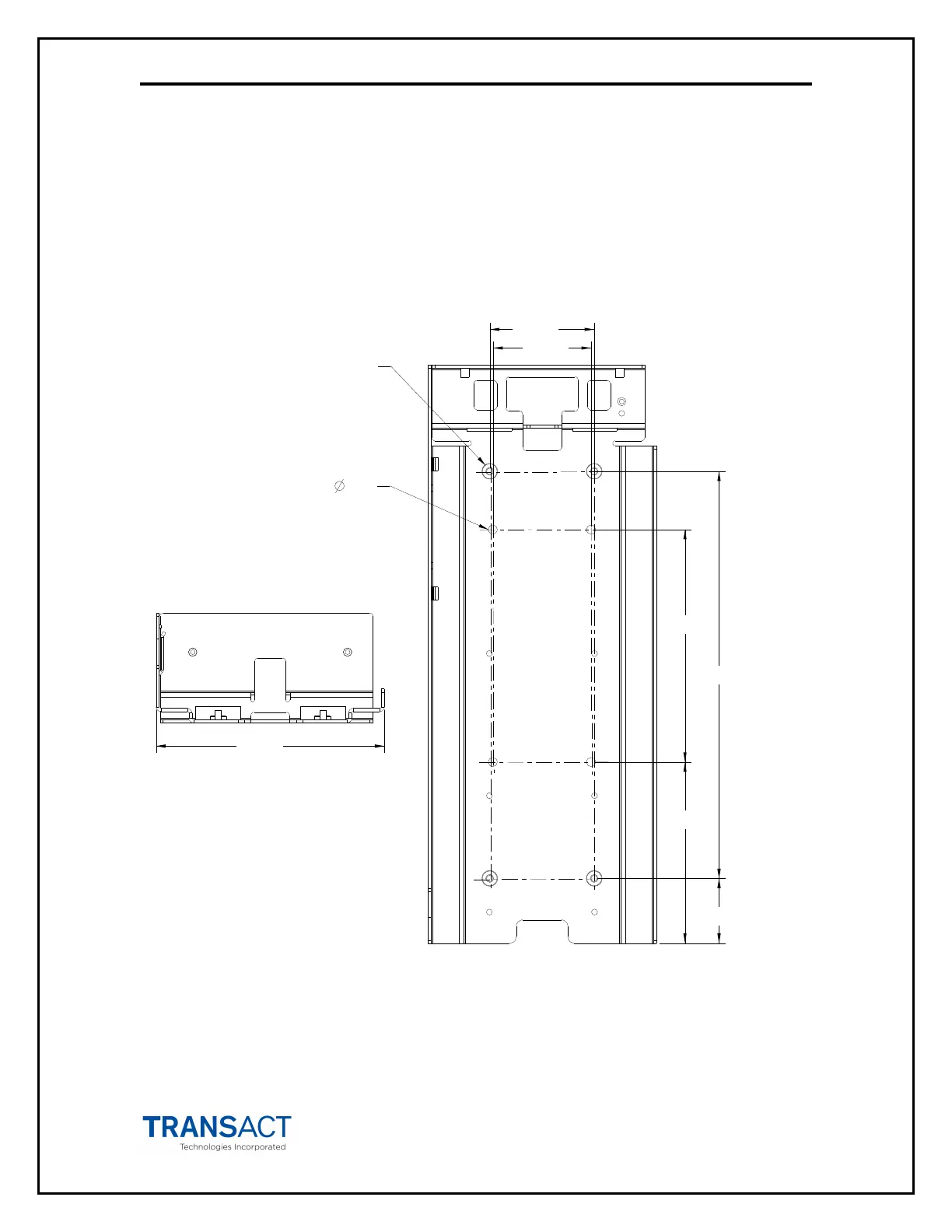

Figure 7. Outer Chassis to Final Product
4.430
2.024
1.904
7.875
4.500
3.500
1.250
M4x0.7
PEM NUTS
4PLS
.180
4PLS
