13.2 Program Tab
13.2 Program Tab

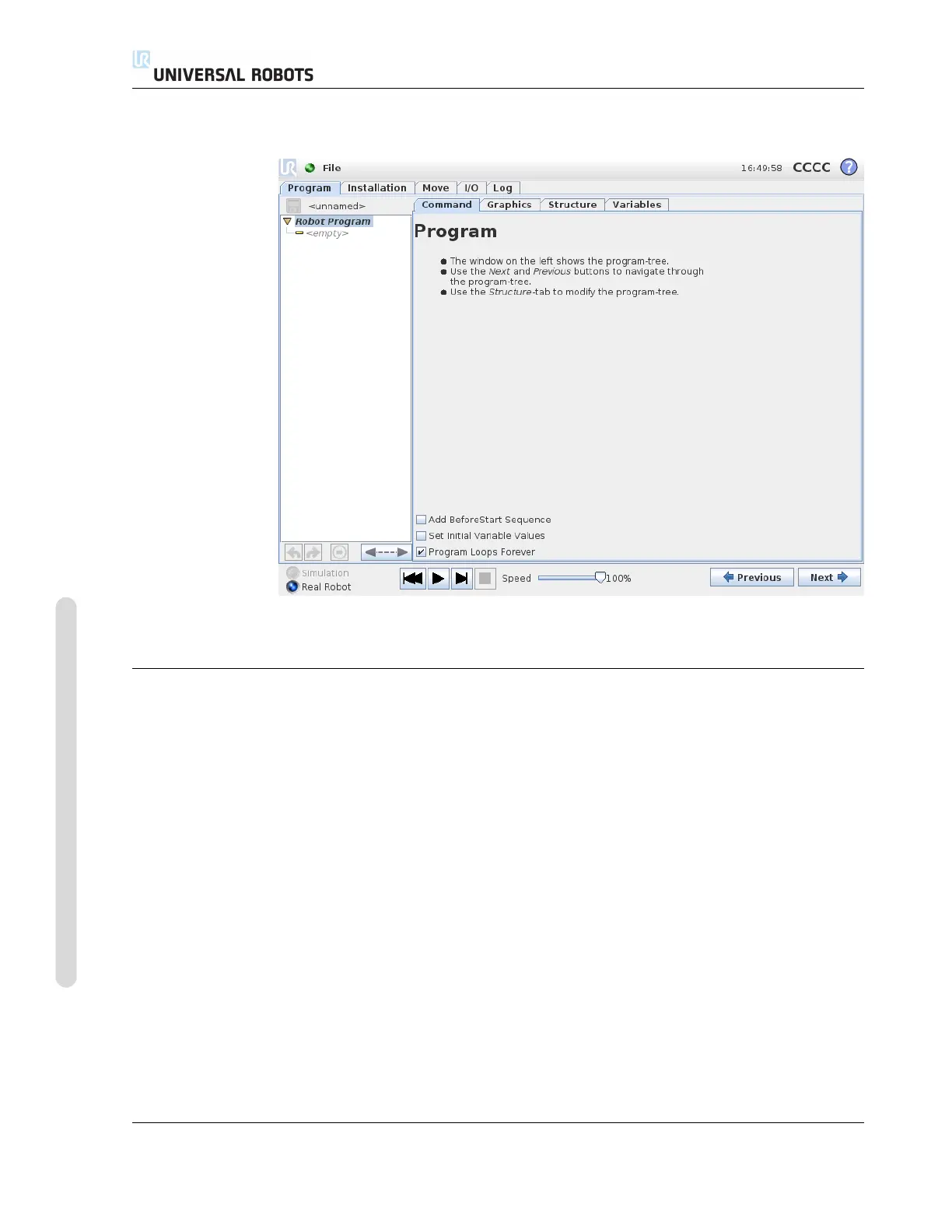

The program tab shows the current program being edited.
13.2.1 Program Tree
The program tree on the left side of the screen displays the program as a list of com-
mands, while the area on the right side of the screen displays information relating to
the current command. The current command is selected by clicking the command list,
or by using the Previous and Next buttons on the bottom right of the screen. Com-
mands can be inserted or removed using the Structure tab, described in 13.29. The
program name is shown directly above the command list, with a small disk icon that
can be clicked to quickly save the program.
In the program tree, the command that is currently being executed is highlighted as
described in 13.2.2.
CB3 II-46 Version 3.1 (rev. 17782)
Copyright © 2009-2015 by Universal Robots A/S. All rights reserved.
