13.16 Load Screen
Screen layout

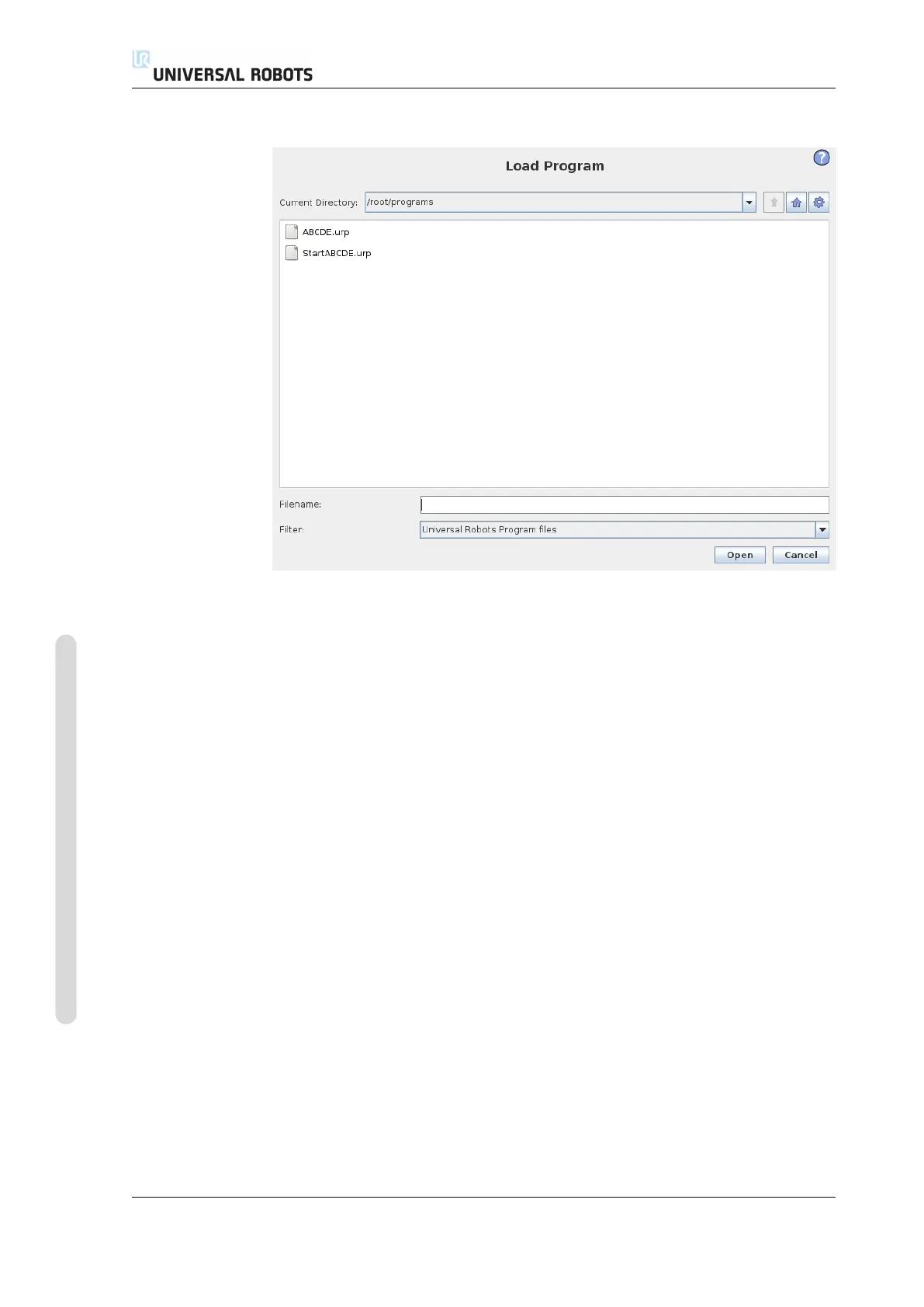

This image shows the actual load screen. It consists of the following important
areas and buttons:
Path history The path history shows a list of the paths leading up to the present
location. This means that all parent directories up to the root of the computer are
shown. Here you will notice that you may not be able to access all the directories
above the programs folder.
By selecting a folder name in the list, the load dialog changes to that directory and
displays it in the file selection area 13.16.
File selection area In this area of the dialog the contents of the actual area is
present. It gives the user the option to select a file by single clicking on its name or
to open the file by double clicking on its name.
Directories are selected by a long press of approximately 0.5 s. Descending into a
folder and presenting its content is done by single clicking it.
File filter By using the file filter, one can limit the files shown to include the type
of files that one wishes. By selecting “Backup Files” the file selection area will
display the latest 10 saved versions of each program, where .old0 is the newest
and .old9 is the oldest.
File field Here the currently selected file is shown. The user has the option to
manually enter the file name of a file by clicking on the keyboard icon to the right
CB3 II-62 Version 3.4.5
Copyright © 2009–2017 by Universal Robots A/S. All rights reserved.
