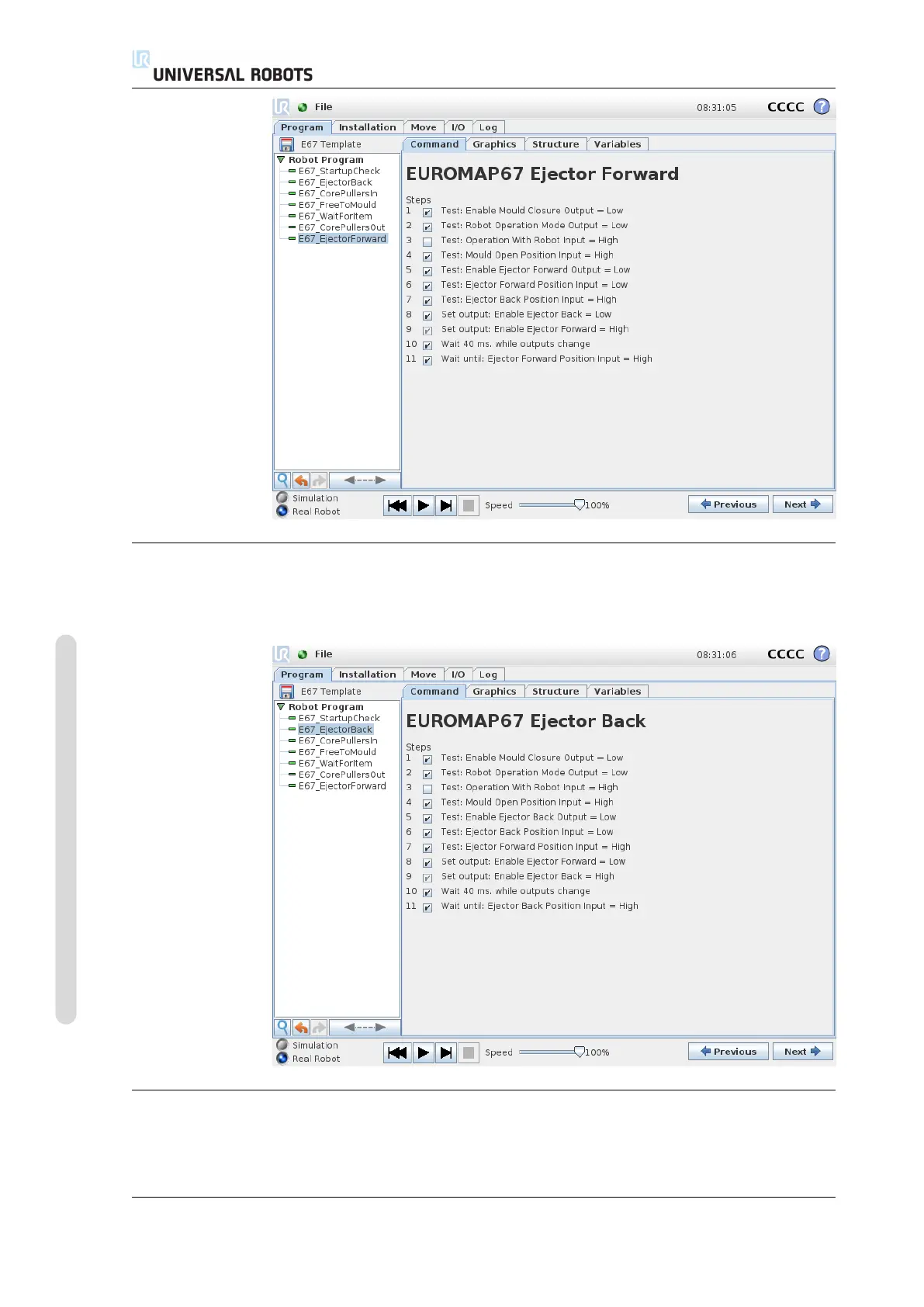

18.3
Program
structure
functionality
18.3.5
Ejector
Back
Enables
the
movement
of
the
ejector
to
its
back
position.
Use
the
checkboxes
to
enable/disable
individual
steps.
18.3.6
Core
Pullers
In
Enables
the
movement
of
the
core
pullers
to
position
1.
Which
core
pullers
are
used
is
selected
from
the
drop
down
menu.
Use
the
checkboxes
to
enable/disable
CB3
III-18
V
ersion
3.4.5
Copyright
©
2009–2017
b
y
Universal
Robots
A/S
.
All
rights
reser
ved.
211
213
