14.31 Variables Tab
3) Press the button for the command type you wish to insert. For adjusting the
details for the new command, go to the Command tab.
Commands can be moved/cloned/deleted using the buttons in the edit frame. If a
command has sub-commands (a triangle next to the command) all sub-commands
are also moved/cloned/deleted.
Not all commands fit at all places in a program. Waypoints must be under a
Move command (not necessarily directly under). ElseIf and Else commands
are required to be after an If. In general, moving ElseIf commands around can
be messy. Variables must be assigned values before being used.

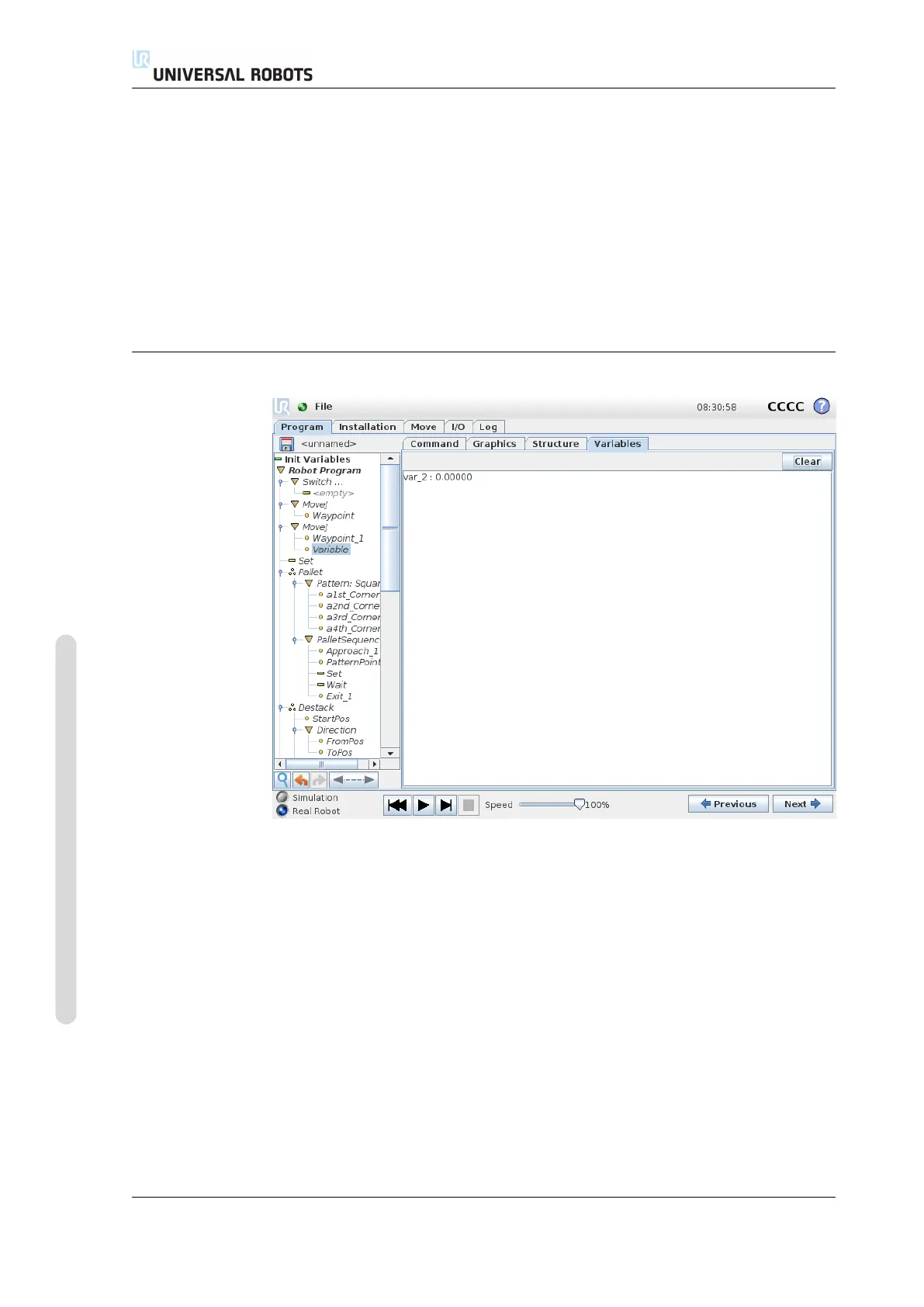

14.31 Variables Tab
The Variables tab shows the live values of variables in the running program, and
keeps a list of variables and values between program runs. It only appears when it
has information to display. The variables are ordered alphabetically by their names.
The variable names on this screen are shown with at most 50 characters, and the
values of the variables are shown with at most 500 characters.
CB3 II-102 Version 3.4.5
Copyright © 2009–2017 by Universal Robots A/S. All rights reserved.
